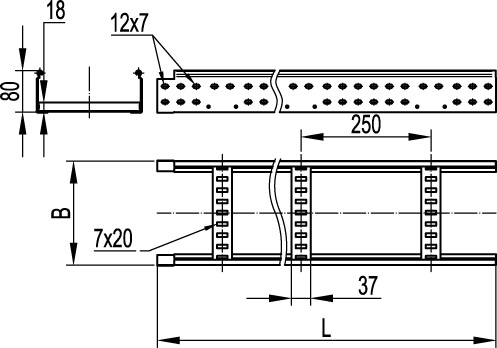

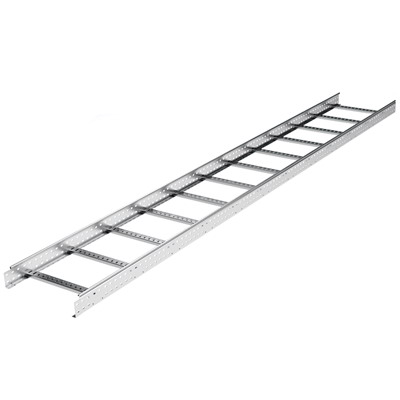

Ladder tray 80х500 plus, L 3000, hot-dip galvanized

Code: LI8050HDZ
Code: LI8050HDZ
  • To ask a question
Colour Light grey
Width, mm 500
Height, mm 80
Surface protection Hot-dip galvanized
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Useful cross section, mm² 31000
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 250
Fixation rung Fully revited
Material thickness, mm 1.5
Product type Metal ladder trays
Type Metal ladder trays - "L5 Combitech"
Height 80 mm
Side rail thickness 1.5 mm
Length 3000 mm
Material Hot-dip galvanized
Width 500 mm
