Ladder tray 50х400, L 6000, hot-dip galvanized

Code: LA5040HDZ
Ladder tray 50х400, L 6000, hot-dip galvanized
  • To ask a question
Colour Light grey
Width, mm 400
Height, mm 50
Surface protection Hot-dip galvanized
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 6000
Material Steel
Useful cross section, mm² 12800
Stainless steel, pickled No
Wide span model No
Type of side joist Profile (open)
Rung centre spacing, mm 300
Fixation rung Fully revited
Product type Straight elements
Height 50 mm
Width 400 mm
Material Hot-dip galvanized
Side rail thickness 1.5 mm
Type Metal ladder trays - "L5 Combitech"
Length 6000 mm
Accessories
Analogs

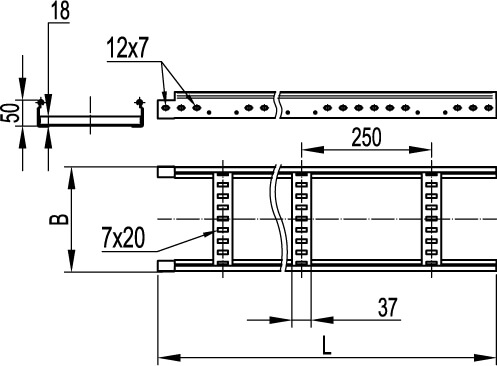

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
