Ladder tray 100х500, L 6000, hot-dip galvanized
Code: LA1050HDZ
Ladder tray 100х500, L 6000, hot-dip galvanized
Code: LA1050HDZ
| Colour | Light grey |
| Width, mm | 500 |
| Height, mm | 100 |
| Surface protection | Hot-dip galvanized |
| Type of rung | Perforated profile |
| Side wall perforation | Yes |
| Material quality | Steel |
| Length, mm | 6000 |
| Material | Steel |
| Useful cross section, mm² | 41000 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Type of side joist | Profile (open) |
| Rung centre spacing, mm | 300 |
| Fixation rung | Fully revited |
| Product type | Metal ladder trays |
| Type | Metal ladder trays - "L5 Combitech" |
| Height | 100 mm |
| Side rail thickness | 1.5 mm |
| Length | 6000 mm |
| Material | Hot-dip galvanized |
| Width | 500 mm |
Accessories
Analogs

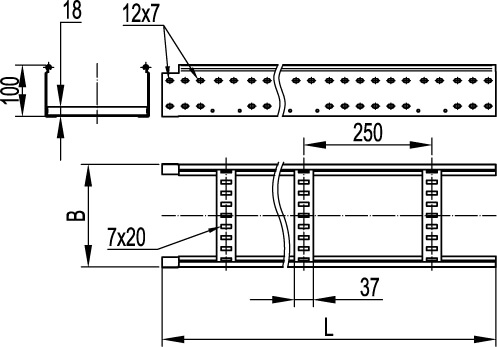

Drawings
| Seria | Name | AVEVA | Intergraph | DWG (dynamic.) | SAT | STEP | Autodesk Revit |
|---|---|---|---|---|---|---|---|
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
