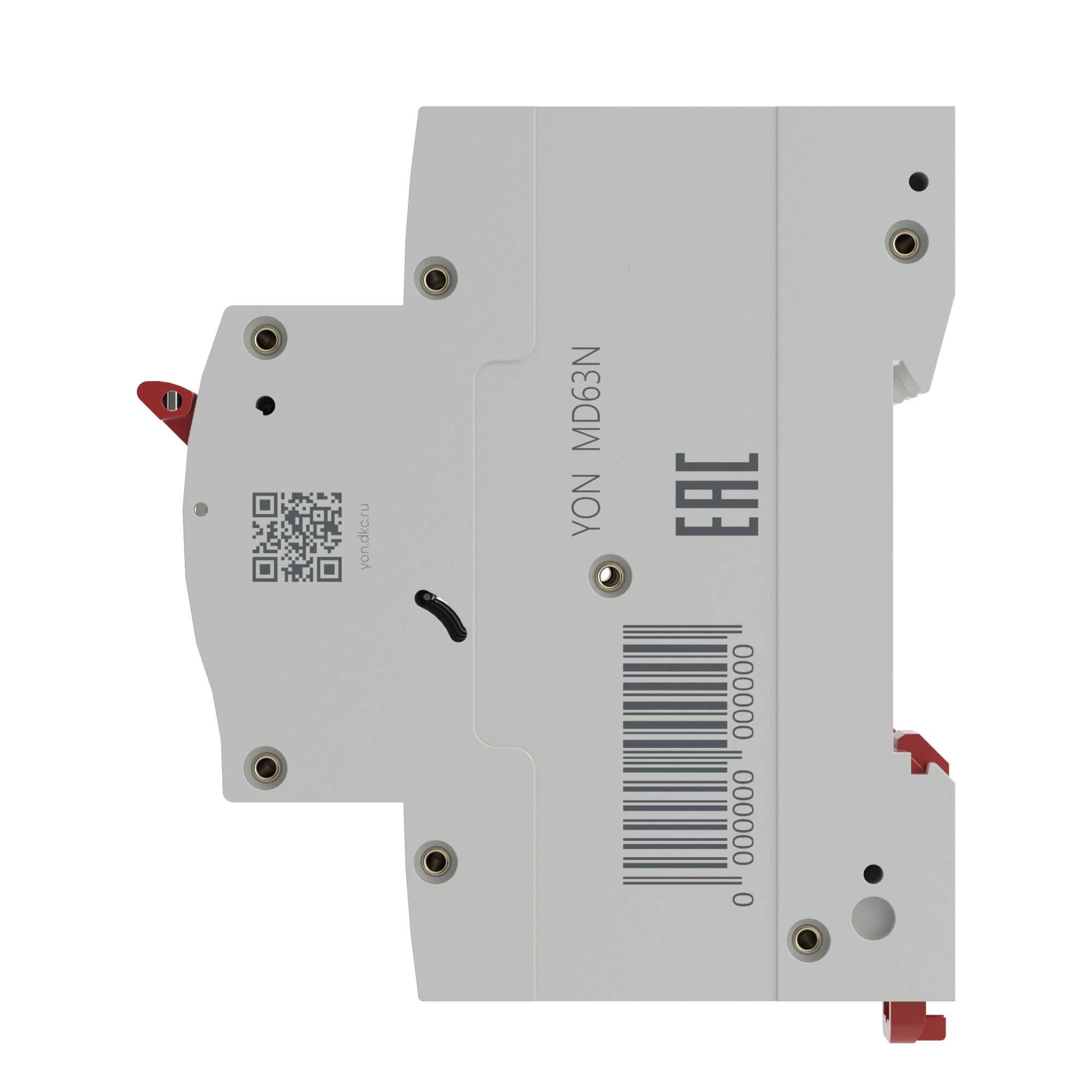

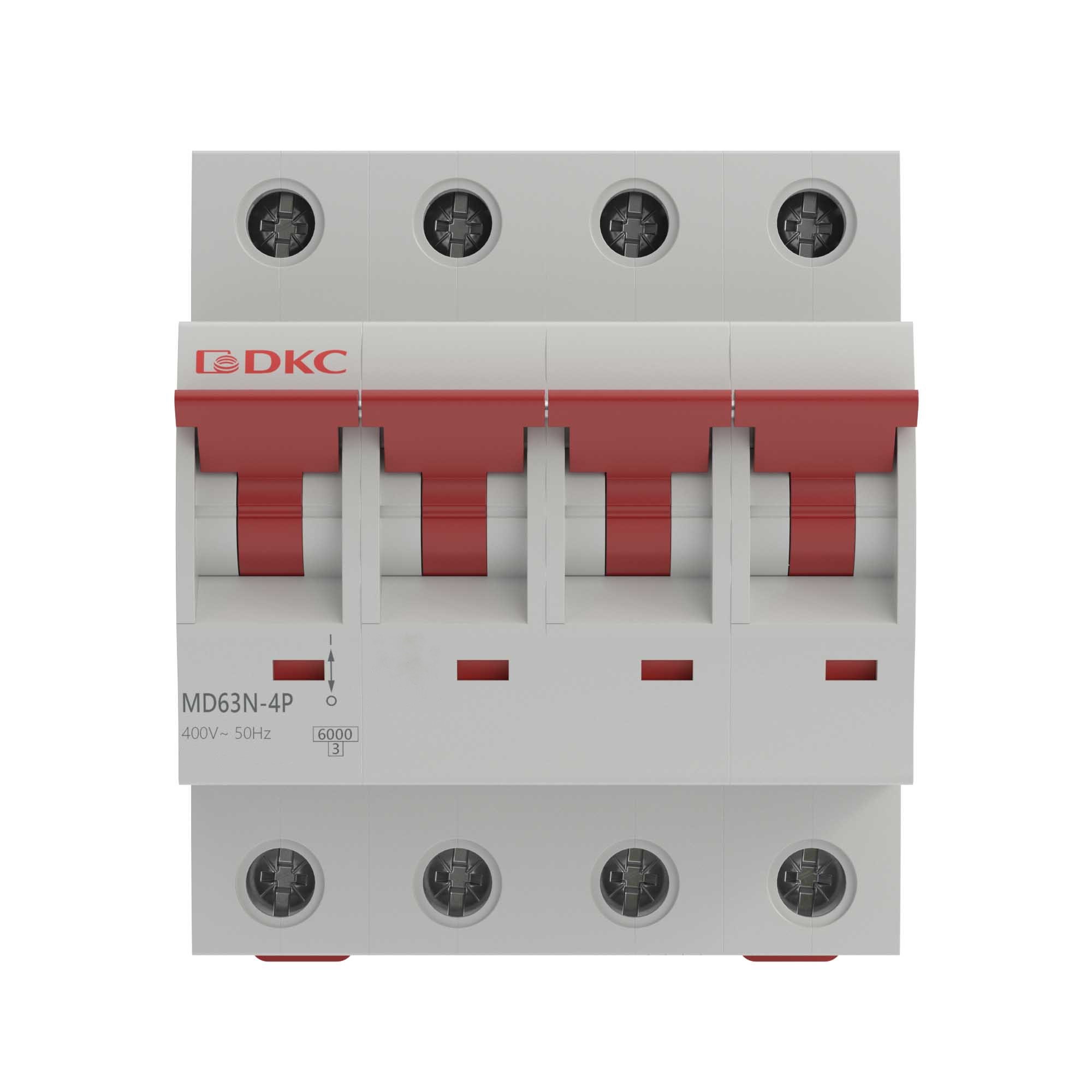

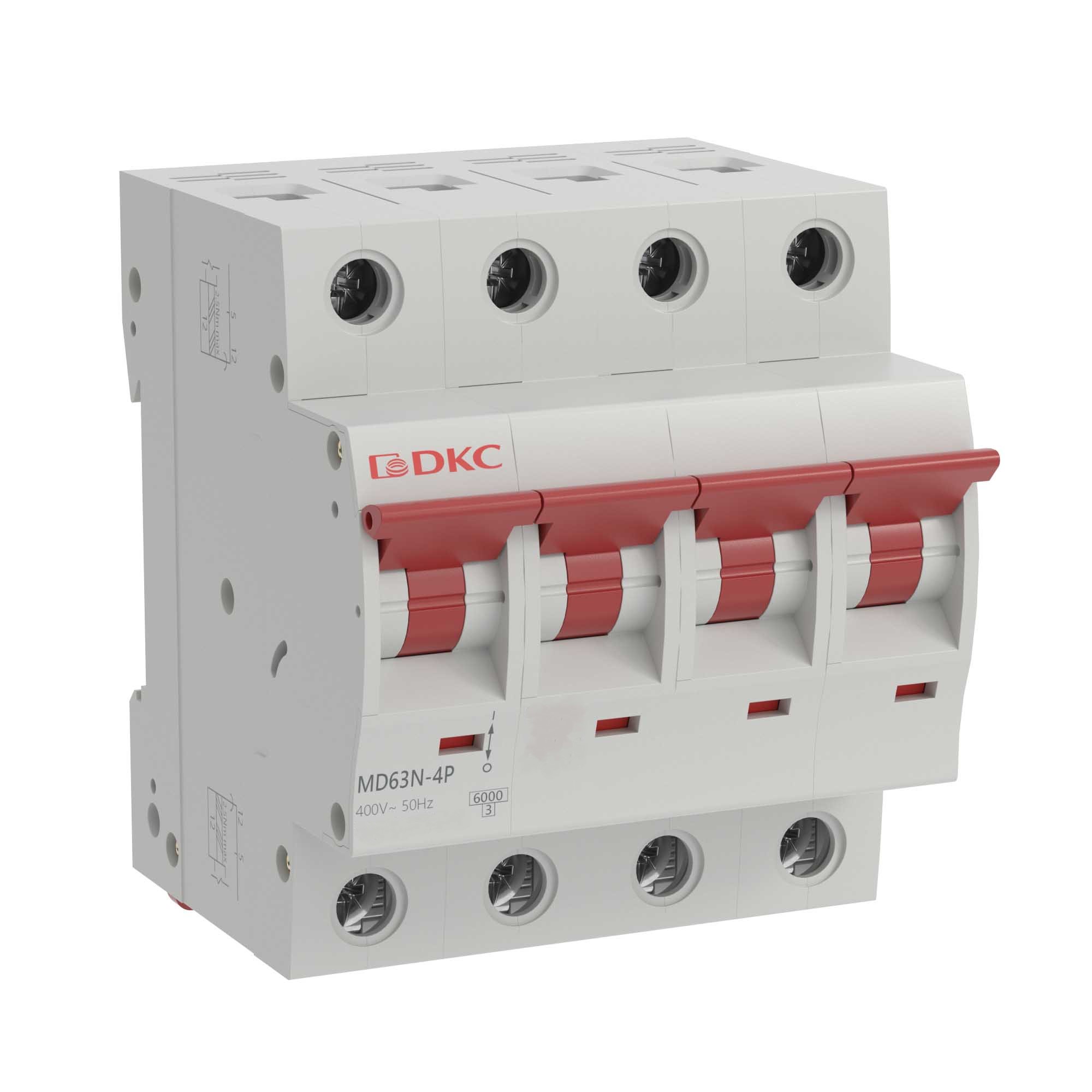

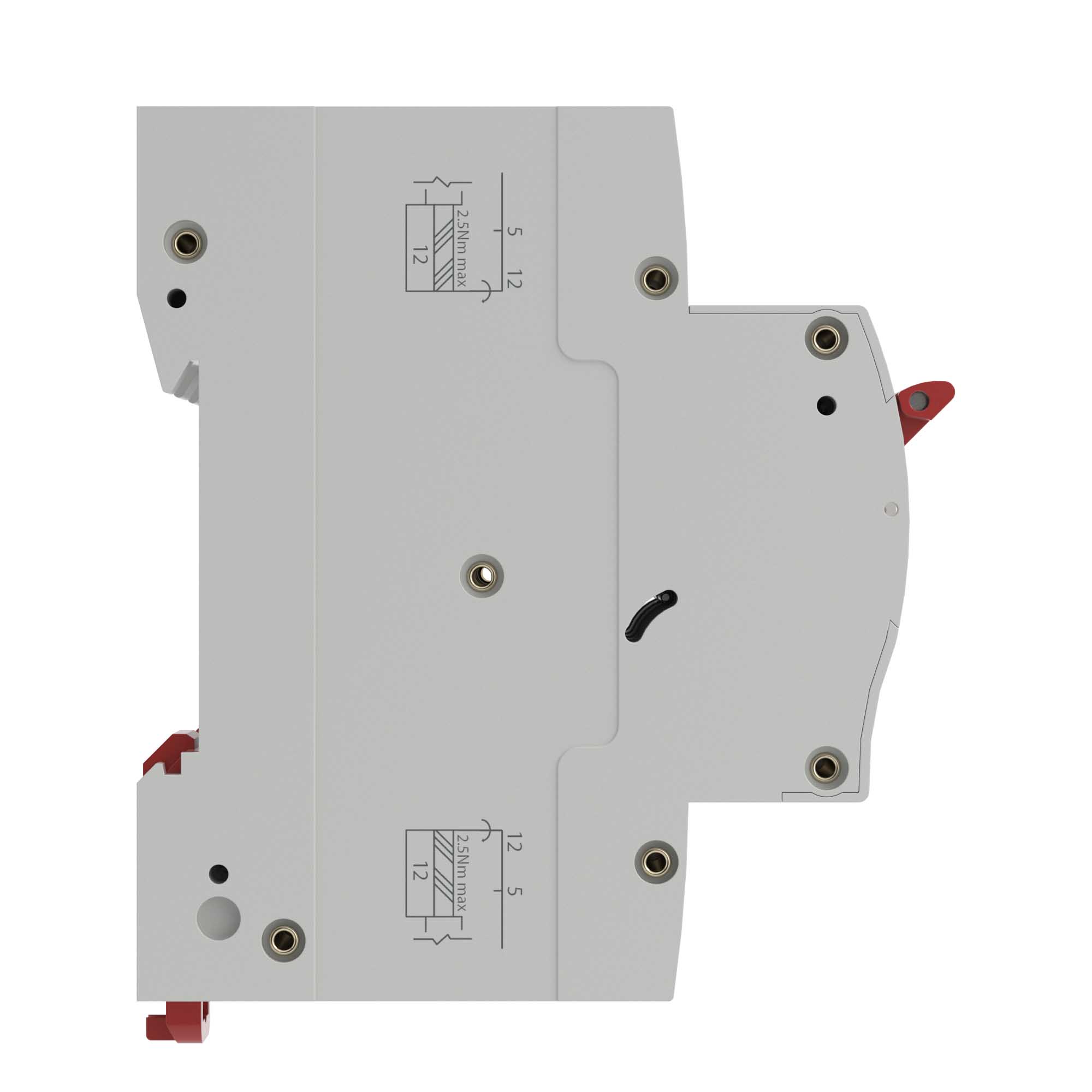

Miniature circuit breaker YON max MD63N, 4P, 6kA, D, 40A without protection
Code:
MD63N-4PC40M
Code:
MD63N-4PC40M
| Voltage type | AC |
| Built-in depth, mm | 69.9 |
| Rated current, A | 40 |
| Rated voltage, V | 400 |
| Frequency, Hz | 50...50 |
| Release characteristic | C |
| Rated insulation voltage Ui, V | 500 |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 3 |
| Width in number of modular spacings | 4 |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 4 |
| Suitable for flush-mounted installation | Yes |
| Connectable conductor cross section solid-core, mm² | 25...35 |
| Connectable conductor cross section multi-wired, mm² | 25...35 |
| Ambient temperature during operating, °C | -60...40 |
| Number of poles (total) | 4 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA | 6 |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V, kA | 6 |
| Rated short-circuit breaking capacity | 6 |
