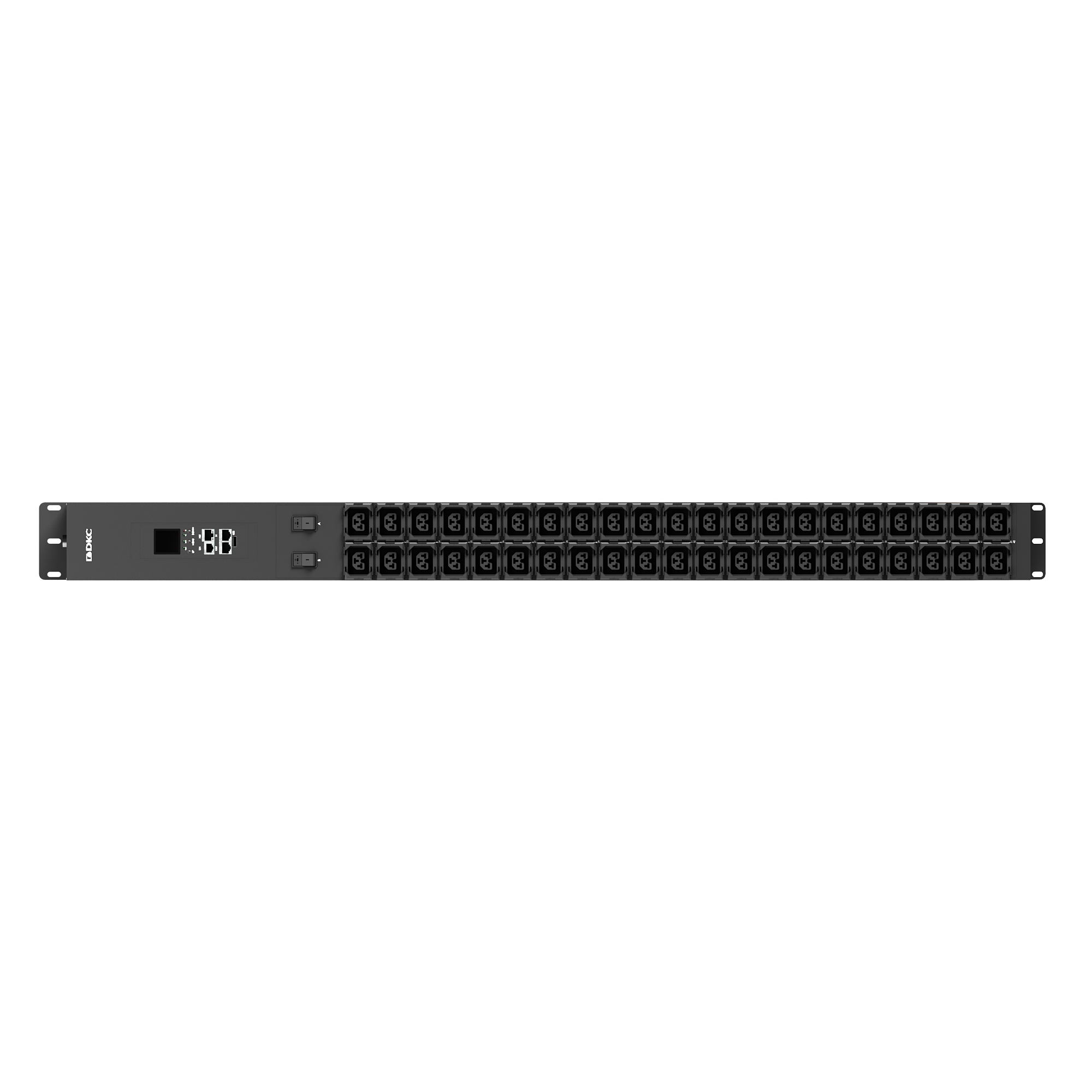

Smart PDU 0U 32A Phase monitoring, T/H sensor, single-phase Output:42ХС13/С19 Input:IEC309X3m
Code:
R5VPT-42C-32A-1
Code:
R5VPT-42C-32A-1
| Width, mm | 100 |
| Depth, mm | 65 |
| Supply voltage, V | 230 |
| Mounting dimension (standardised) | Metric |

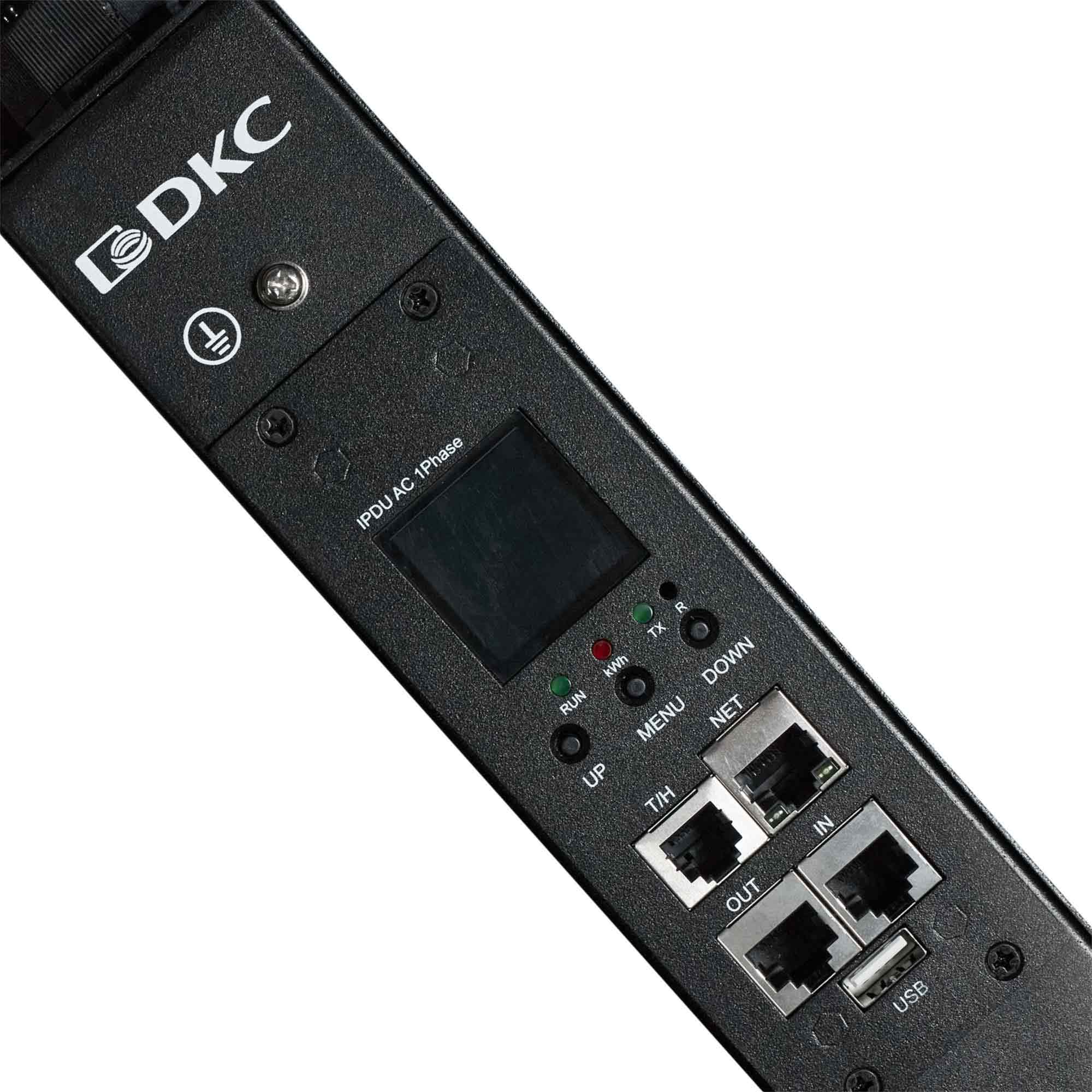

| With display | Yes |
| Cable length, m | 3 |

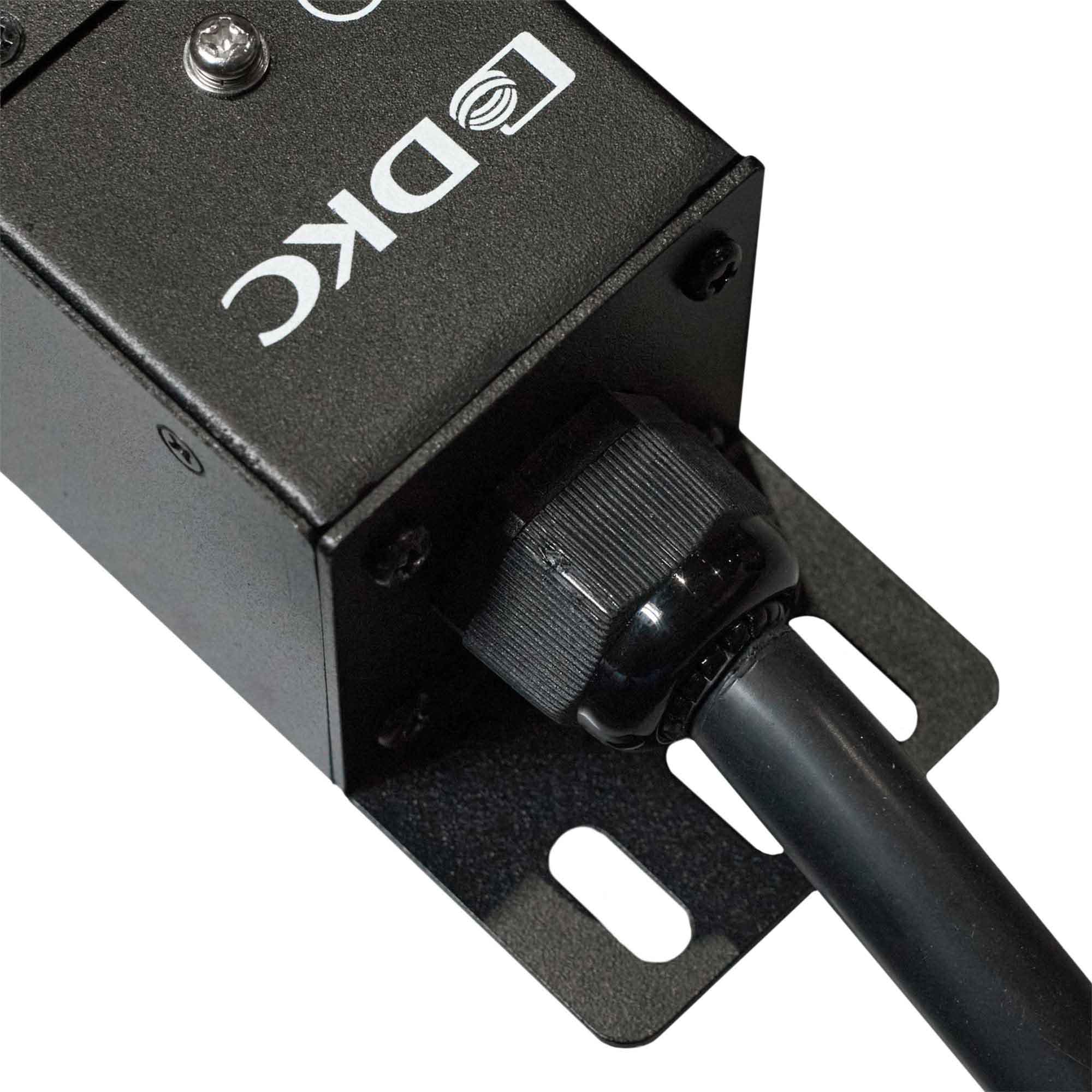

| Electrical connection | Connecting cord with plug |
| Mounting direction | Vertical |

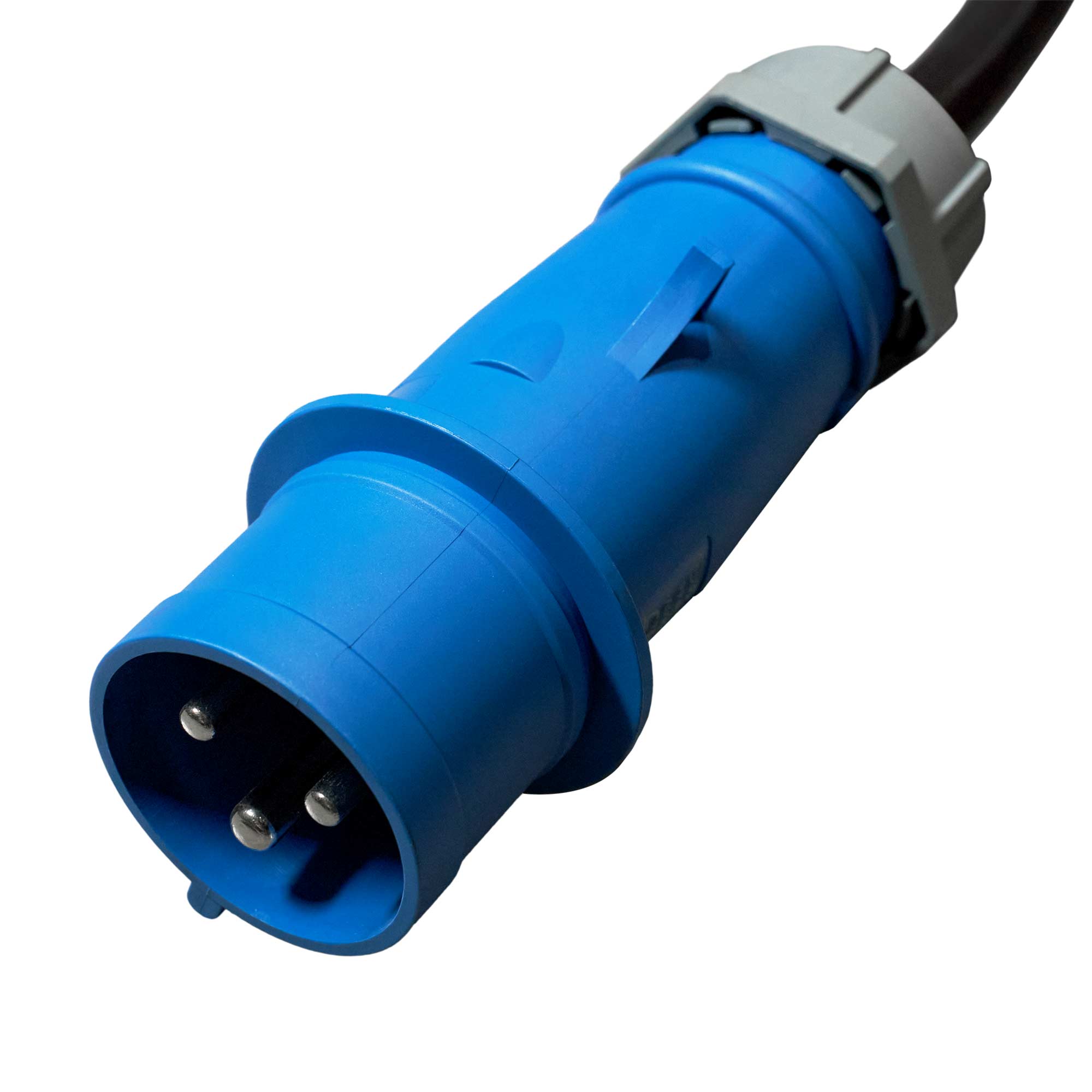

| Type of electric connection | CEE 32 A |
| SNMP | Yes |
| With LED indication | No |

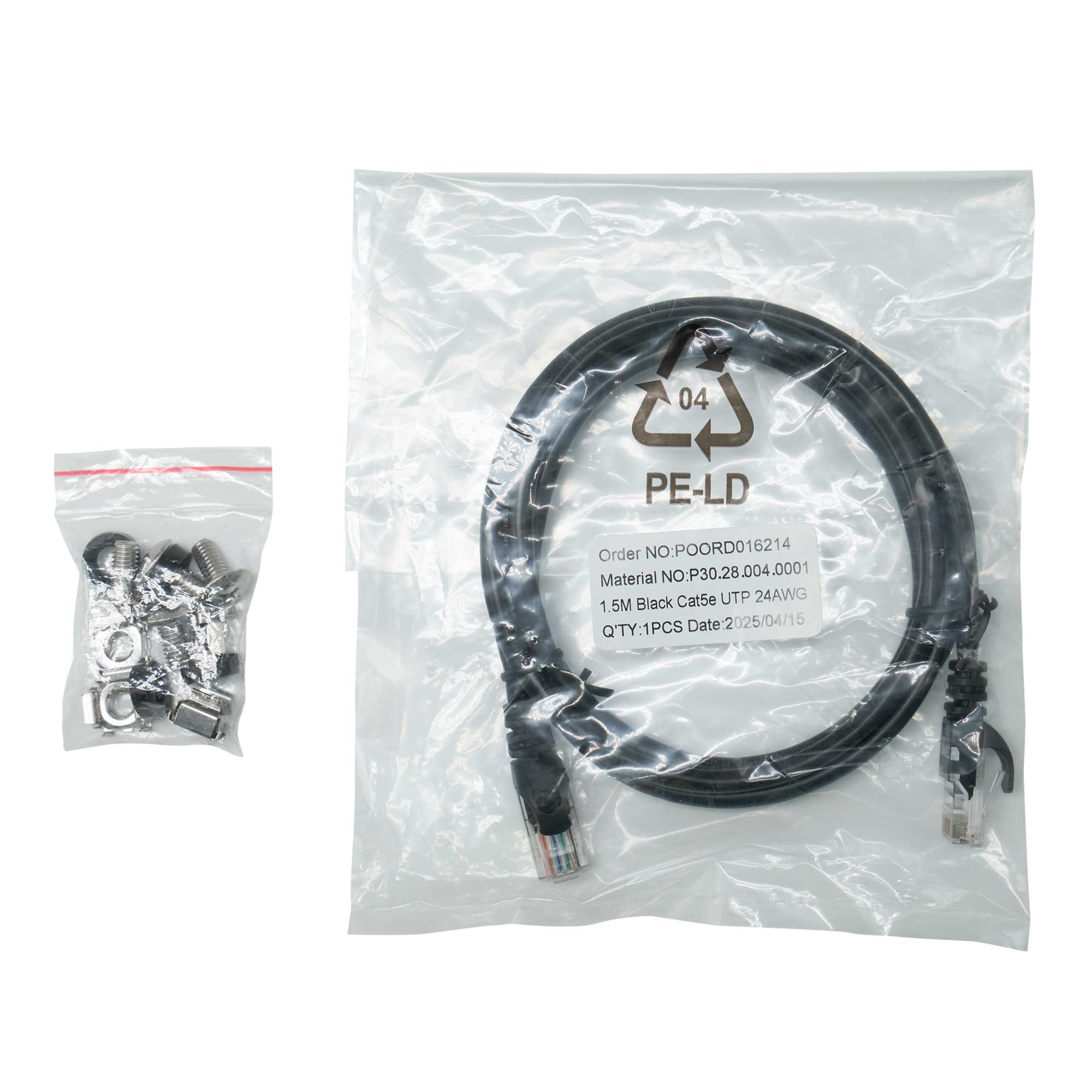

| With mounting material | Yes |

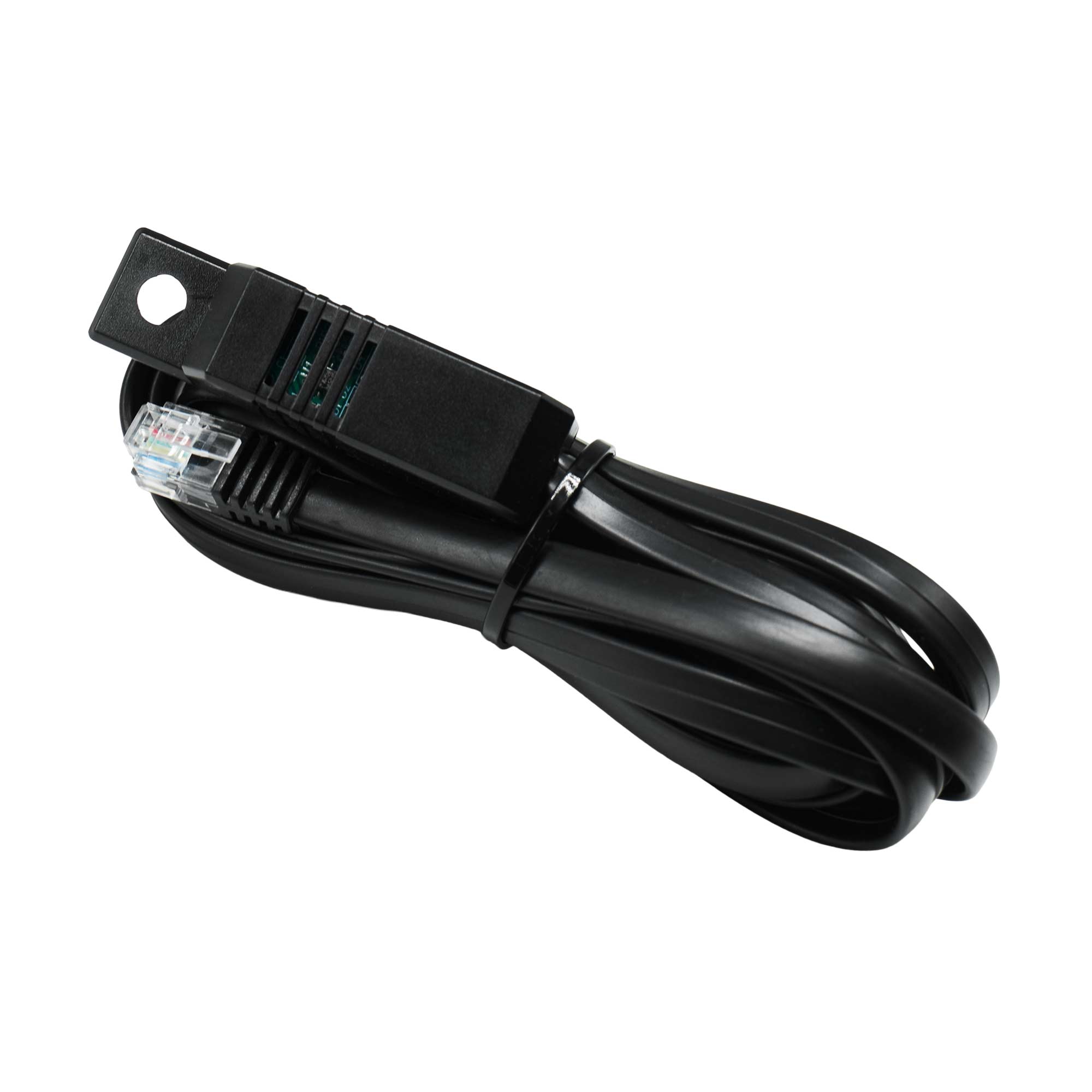

| Temperature measurement | Yes |
| Ampere meter | Yes |
| With fuse | Yes |
| Evaluation | At distance |
| Switchable | No |
| Over voltage category | 1 |
| Height, mm | 1300 |
| Number of C13 socket outlets | 42 |
| Monitoring type | Per phase |
| Number of C13 sockets | 0 pc |
| Number of C19 sockets | 0 pc |
| Number of С13/C19 combined sockets | 42 pc. |
| Number of Shuko sockets | 0 pc |
