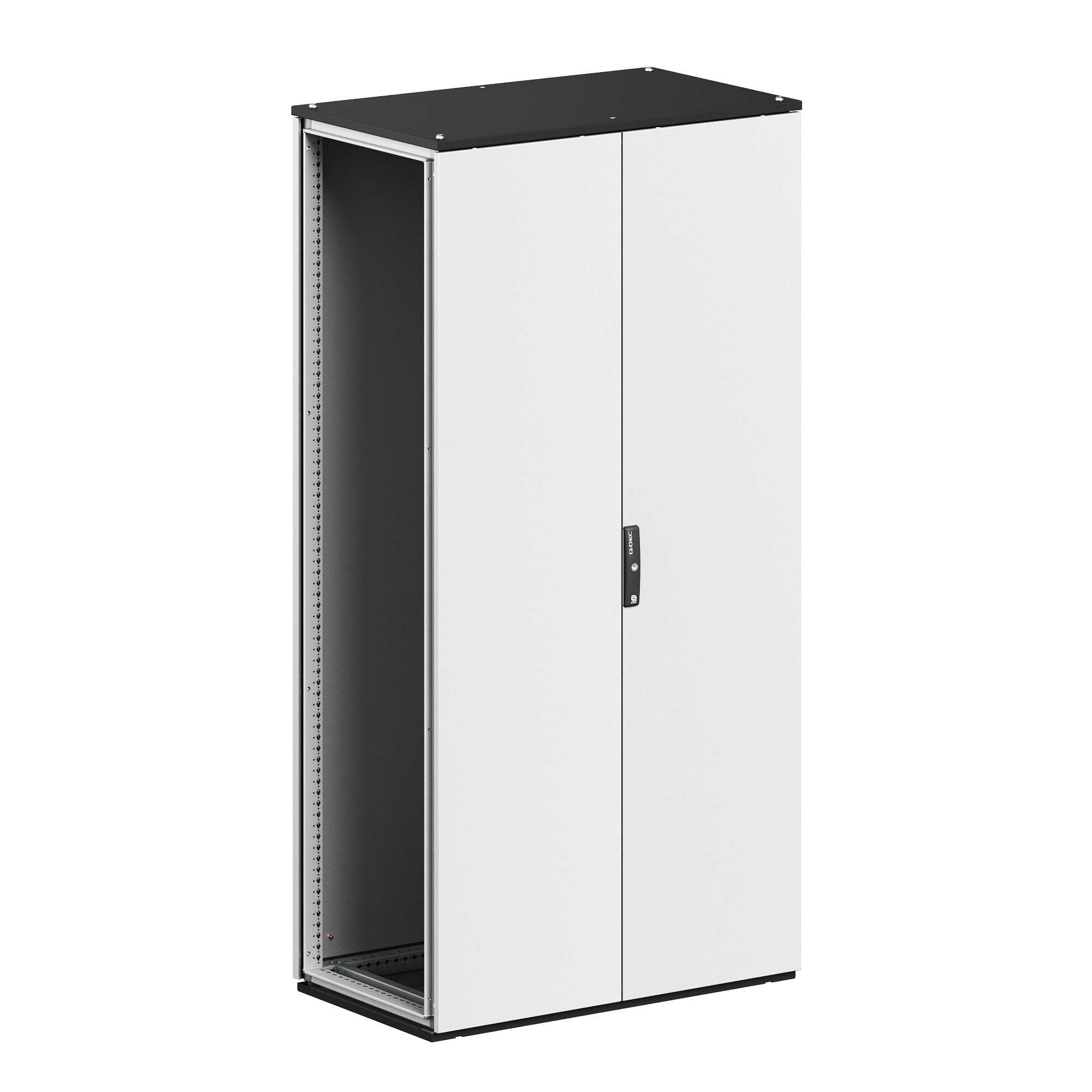

Assembled cabinet CQE N, solid door and back panel, 1400 x 1600 x 400 mm
Code:
R5CQEN14164
Code:
R5CQEN14164
| Colour | Grey |
| Width, mm | 1600 |
| Height, mm | 1400 |
| Depth, mm | 400 |
| With mounting plate | No |
| Number of doors | 2 |
| Material | Steel |
| Degree of protection (IP) | IP55 |
| Tackable | Yes |
| Wall fastening possible | No |
| Surface finishing | Powder coating |
| Wall build in | No |
| Floor installation possible | Yes |
| Enclosure type | Floor |
| Product type | Floor cabinet set |
| Door type | Double-leaf door |
| Climate version | UHL1, OM2, OM3 |
| Seismic resistance | 9 points |
| Gasket | Polyurethane |
| Door thickness | 2 mm |
| Rear panel thickness | 1,5 mm |
| Roof and base thickness | 1,5 mm |
| Door opening angle | 130° |
| Fire resistance | G1 |
| Presence of mounting plate | No |
| Load-bearing capacity | 1000 Kg |
| PMPC type approval certificate | Yes |
| PKO type approval certificate | Yes |
| Thickness of vertical posts | 1,5 mm |
