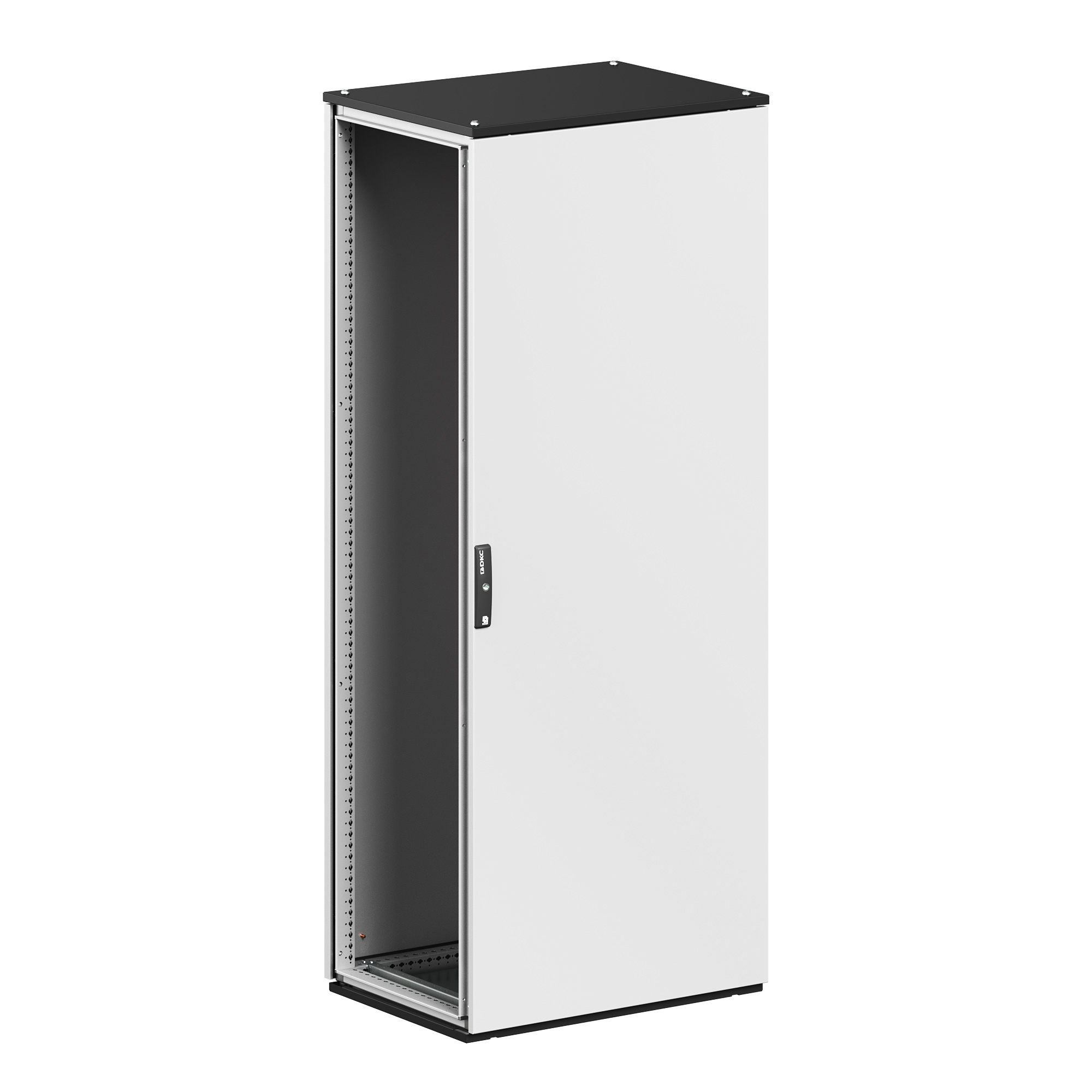

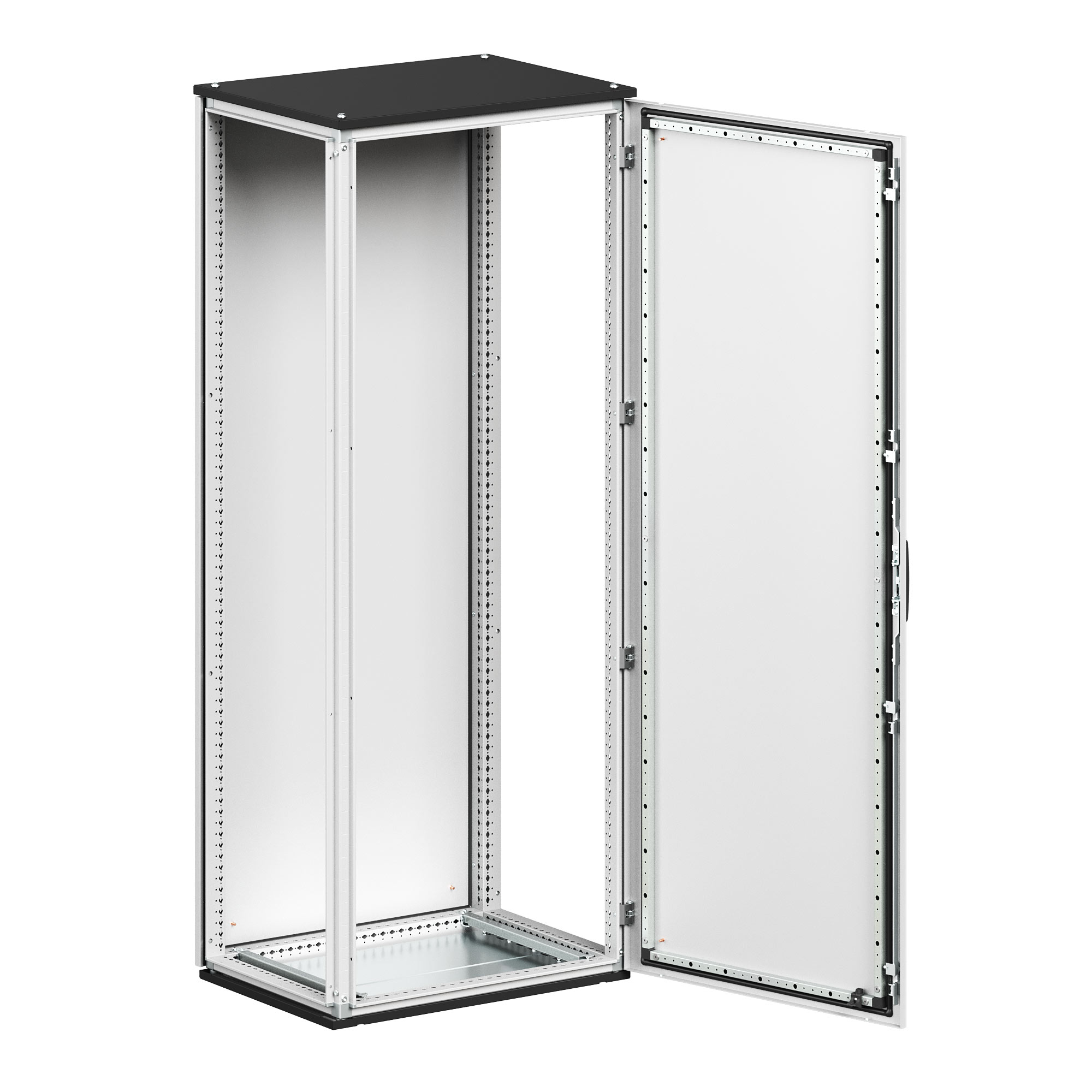

Floor-standing assembled enclosure CQE N with door and rear panel 1600x1000x600 mm RAM block
Code:
R5CQEN16106A
Code:
R5CQEN16106A
| Colour | Grey |
| Width, mm | 1000 |
| Height, mm | 1600 |
| Depth, mm | 600 |
| RAL-number | 7035 |
| With mounting plate | No |
| Number of doors | 1 |
| Number of locks | 1 |
| EMC-version | Yes |
| With glazed door | No |
| Material | Steel |
| Impact strength | IK10 |
| Degree of protection (IP) | IP55 |
| Suitable for outdoor set-up | Yes |
| Suitable for metrical mounting | Yes |
| Mounting plate depth-adjustable | No |
| Tackable | Yes |
| With ventilation door | No |
| Wall fastening possible | No |
| Surface finishing | Powder coating |
| With backside door | No |
| Wall build in | No |
| Pitched roof | No |
| Floor installation possible | Yes |
| Pole fastening | No |
| Enclosure type | Floor |
| Product type | Floor cabinet set |
| Door type | Double-leaf door |
| Climate version | UHL1, OM2, OM3 |
| Seismic resistance | 9 points |
| Gasket | Polyurethane |
| Door thickness | 2 mm |
| Rear panel thickness | 1,5 mm |
| Roof and base thickness | 1,5 mm |
| Door opening angle | 130° |
| Fire resistance | G1 |
| Presence of mounting plate | No |
| Load-bearing capacity | 1000 Kg |
| PMPC type approval certificate | Yes |
| PKO type approval certificate | Yes |
| Thickness of vertical posts | 1,5 mm |
