| Mounting method | DIN rail (top hat rail) 35 mm |

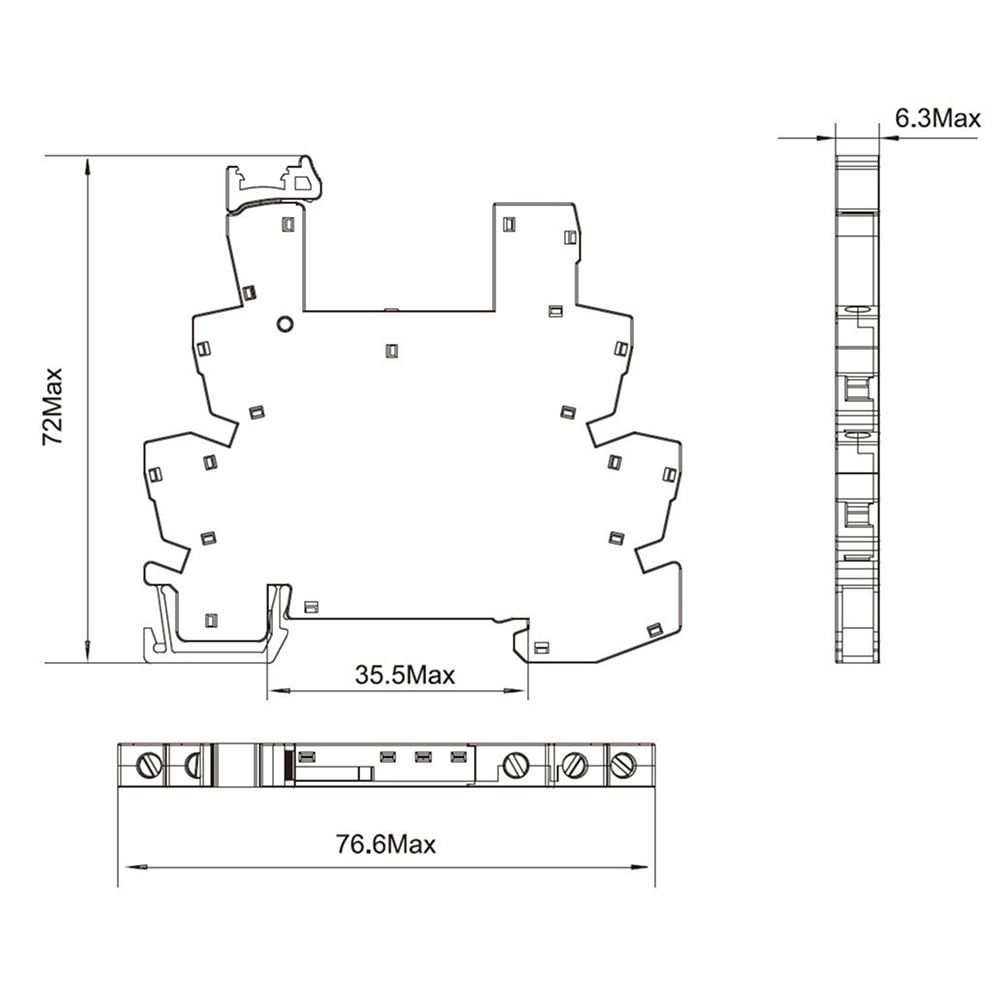

| Width, mm | 6.3 |
| Height, mm | 76.6 |
| Depth, mm | 72 |
| With detachable clamps | No |
| Function extension possible | No |
| Type of electric connection | Screw connection |
| Number of pins | 5 |
| Operating voltage, V | 300...300 |
| Rated operation current Ie at AC-1, A | 8 |
| Modular version | No |
