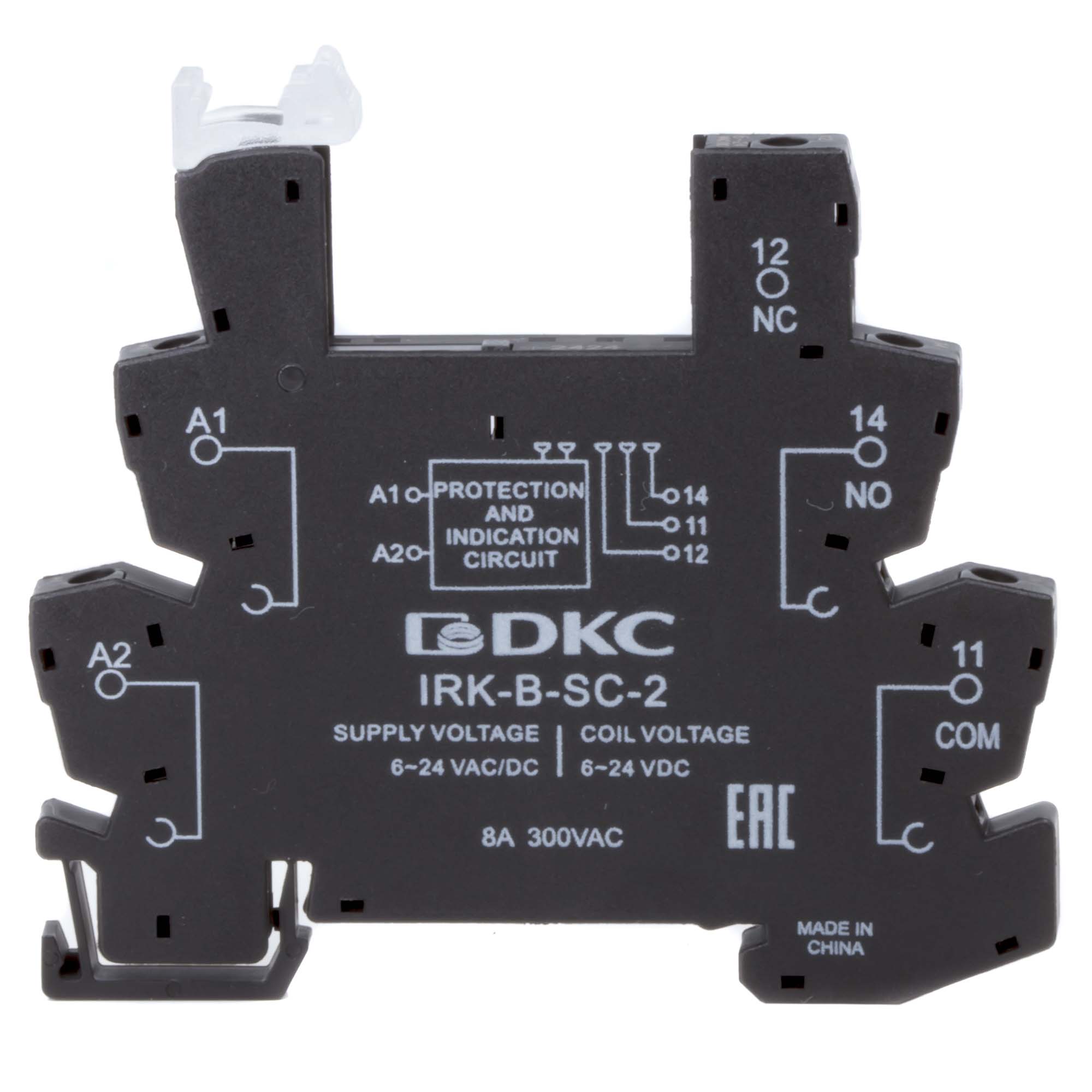

Socket for slim relay RIS, inc. volt. 6-24V AC/DC, screw terminals

Code: IRK-B-SC-2
Socket for slim relay RIS, inc. volt. 6-24V AC/DC, screw terminals
Socket for slim relay RIS, inc. volt. 6-24V AC/DC, screw terminals
Code: IRK-B-SC-2
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items

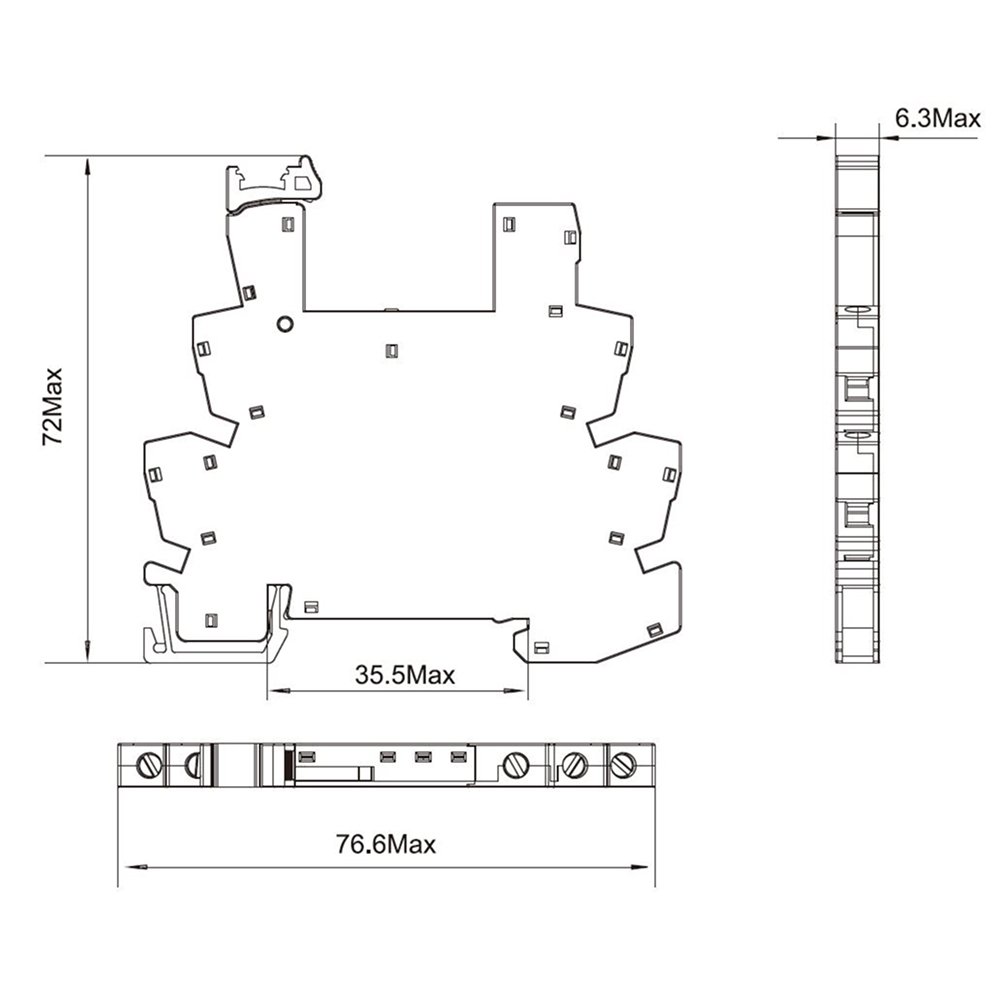

Mounting method DIN rail (top hat rail) 35 mm
Width, mm 6.3
Height, mm 76.6
Depth, mm 72
With detachable clamps No
Function extension possible No
Type of electric connection Screw connection
Number of pins 5
Operating voltage, V 300...300
Rated operation current Ie at AC-1, A 8
Modular version No
