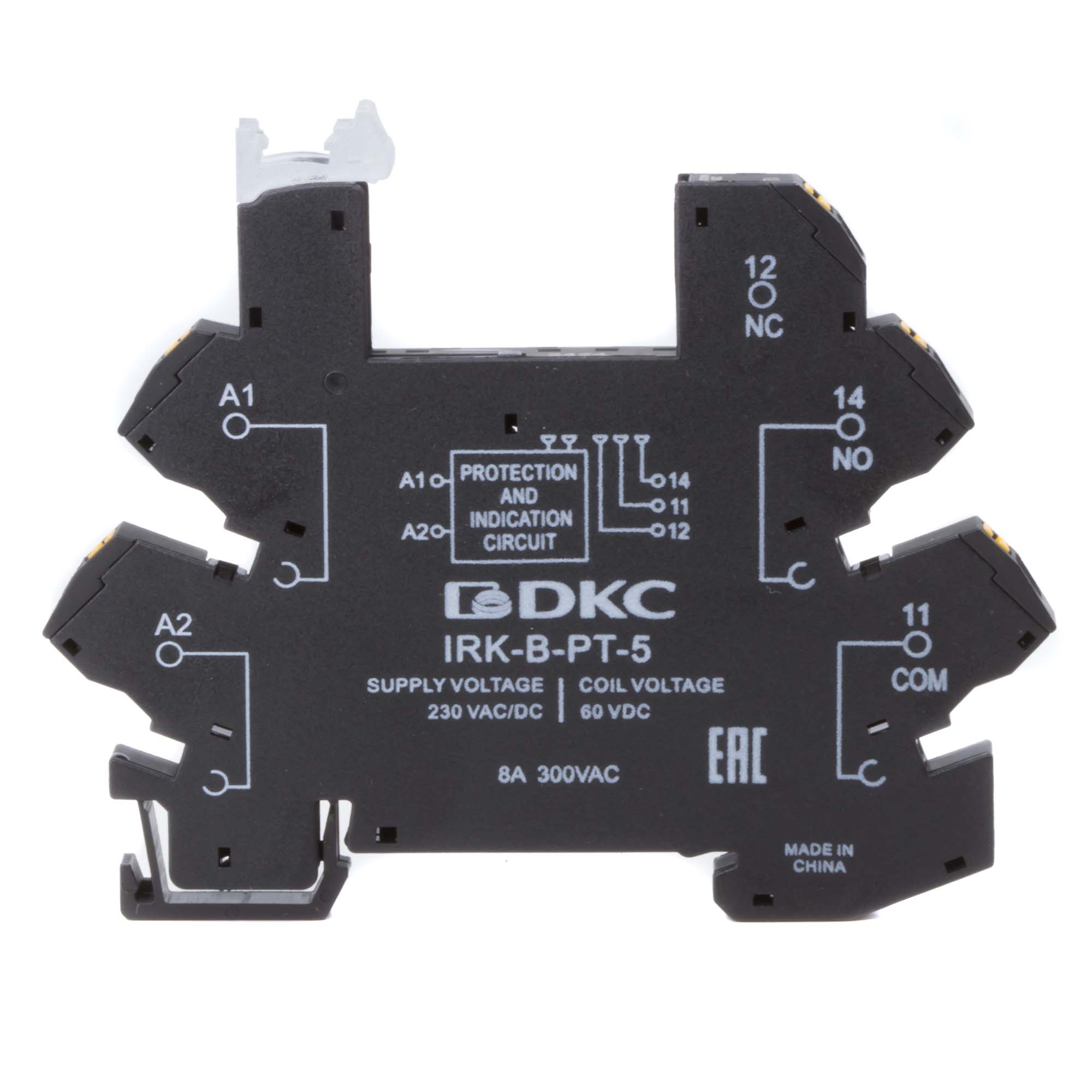

Socket for slim relay RIS, inc. volt. 230V AC/DC, push-in terminals

Code: IRK-B-PT-5
Socket for slim relay RIS, inc. volt. 230V AC/DC, push-in terminals
Socket for slim relay RIS, inc. volt. 230V AC/DC, push-in terminals
Code: IRK-B-PT-5
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items

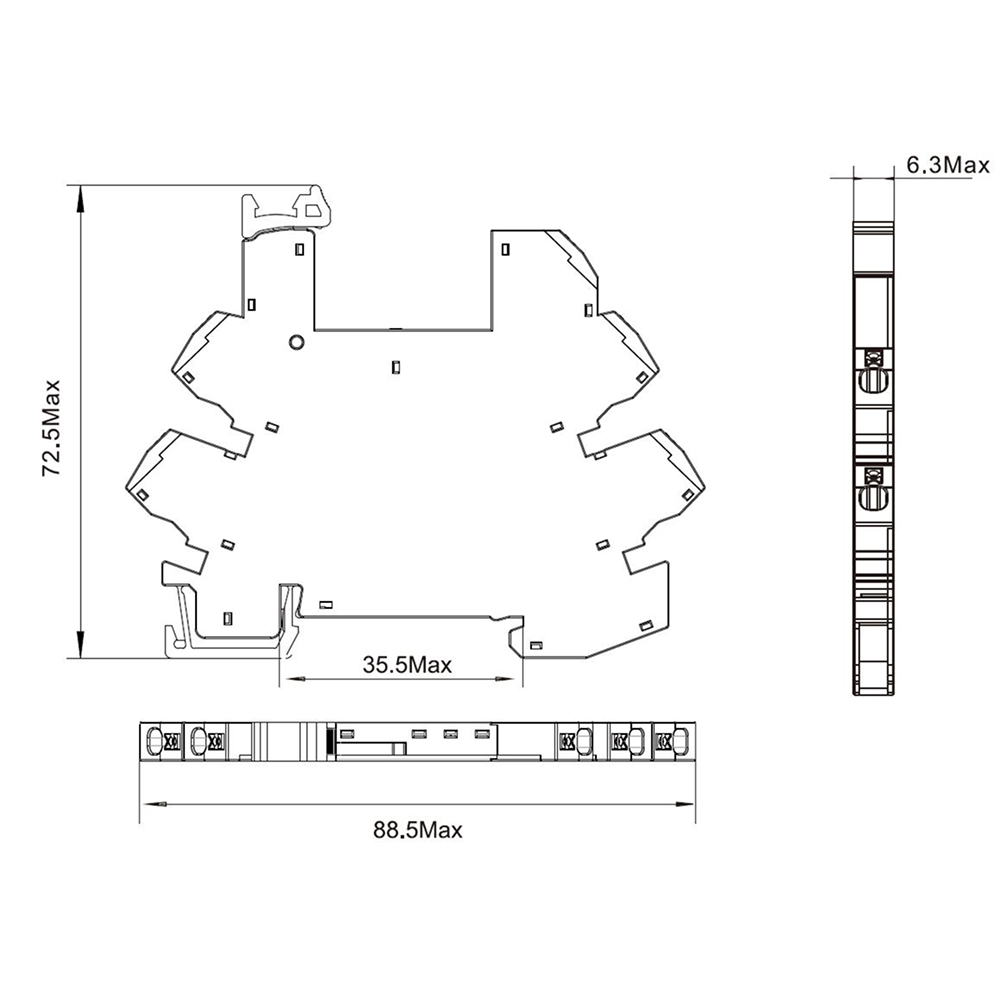

Mounting method DIN rail (top hat rail) 35 mm
Width, mm 6.3
Height, mm 88.5
Depth, mm 72
With detachable clamps No
Function extension possible No
Type of electric connection Spring clamp connection
Number of pins 5
Operating voltage, V 300...300
Rated operation current Ie at AC-1, A 8
Modular version No
