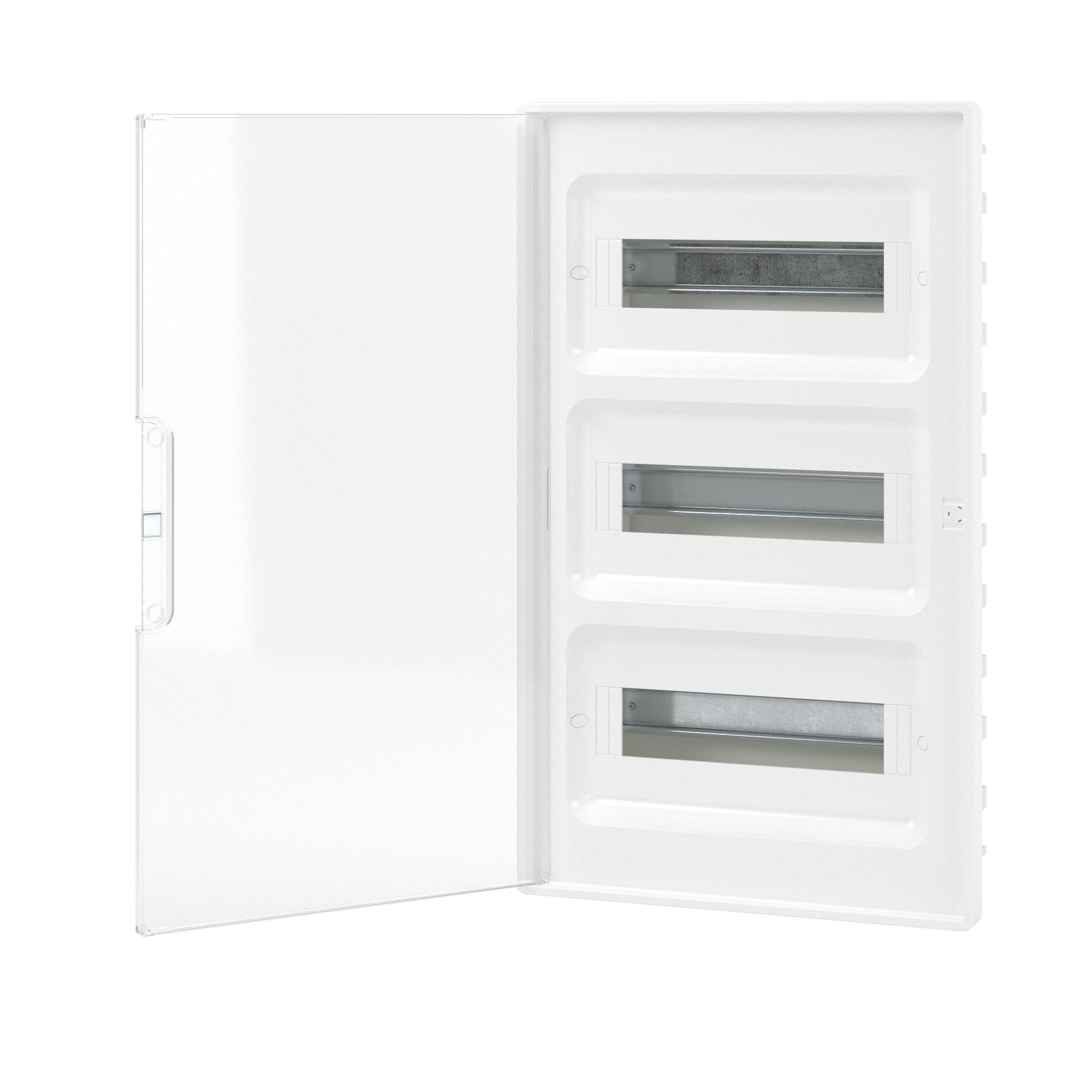

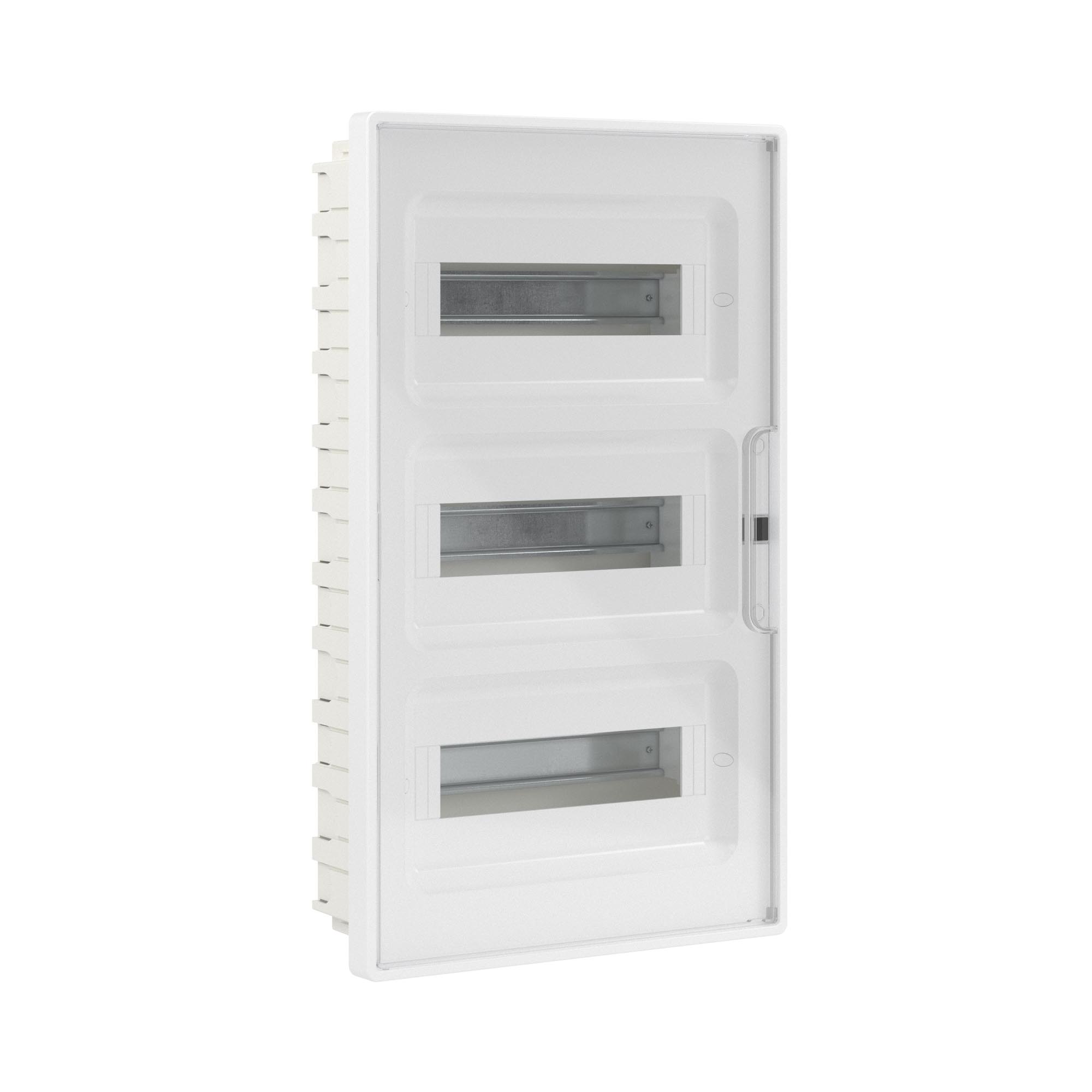

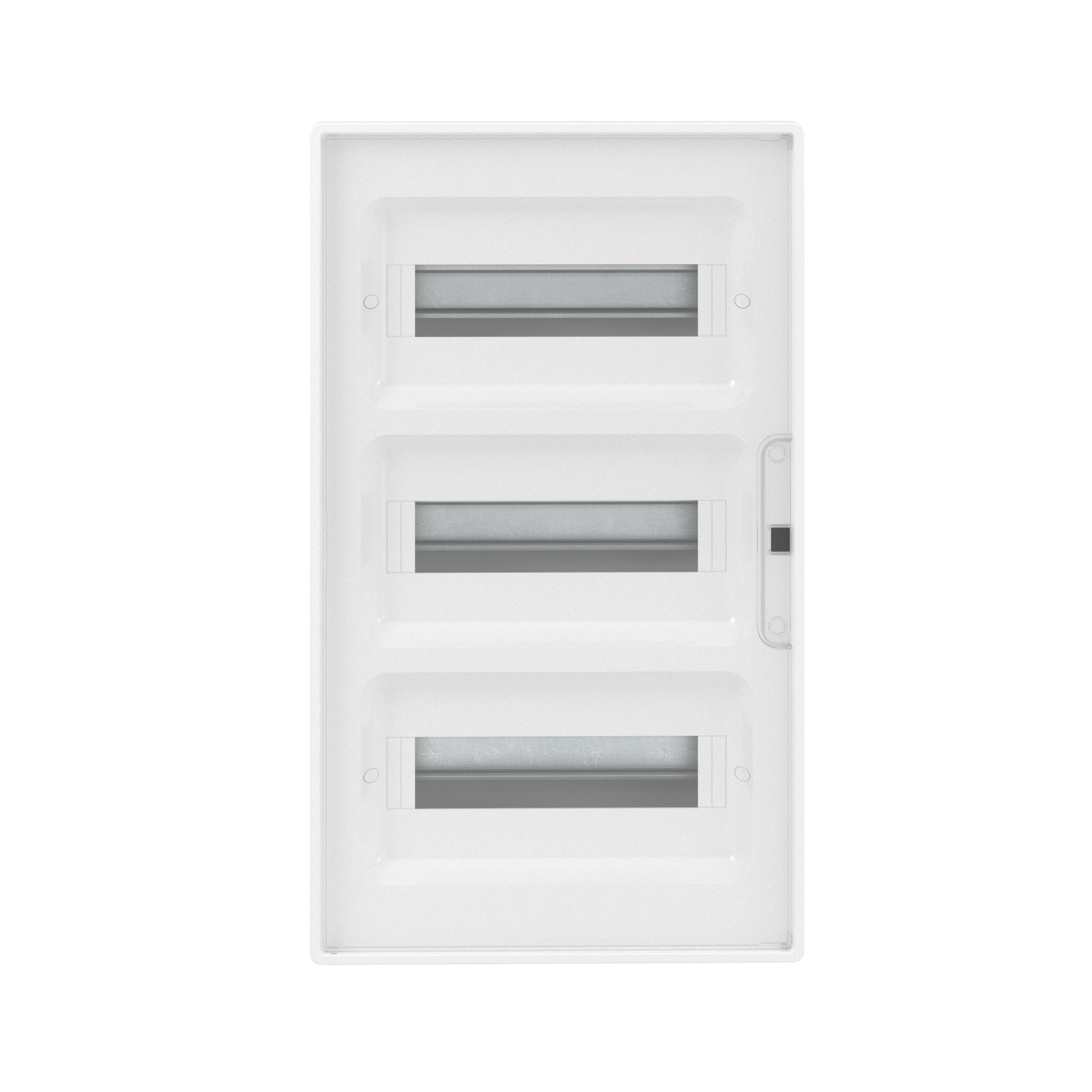

Plastic shield 36 modules, built-in FRAME, white, with transparent door, with 4 PEN busbar 2х8 + 2х10 holes
Code:
F36B1WT
Code:
F36B1WT
| Mounting method | Flush mounted (plaster) |
| Colour | White |

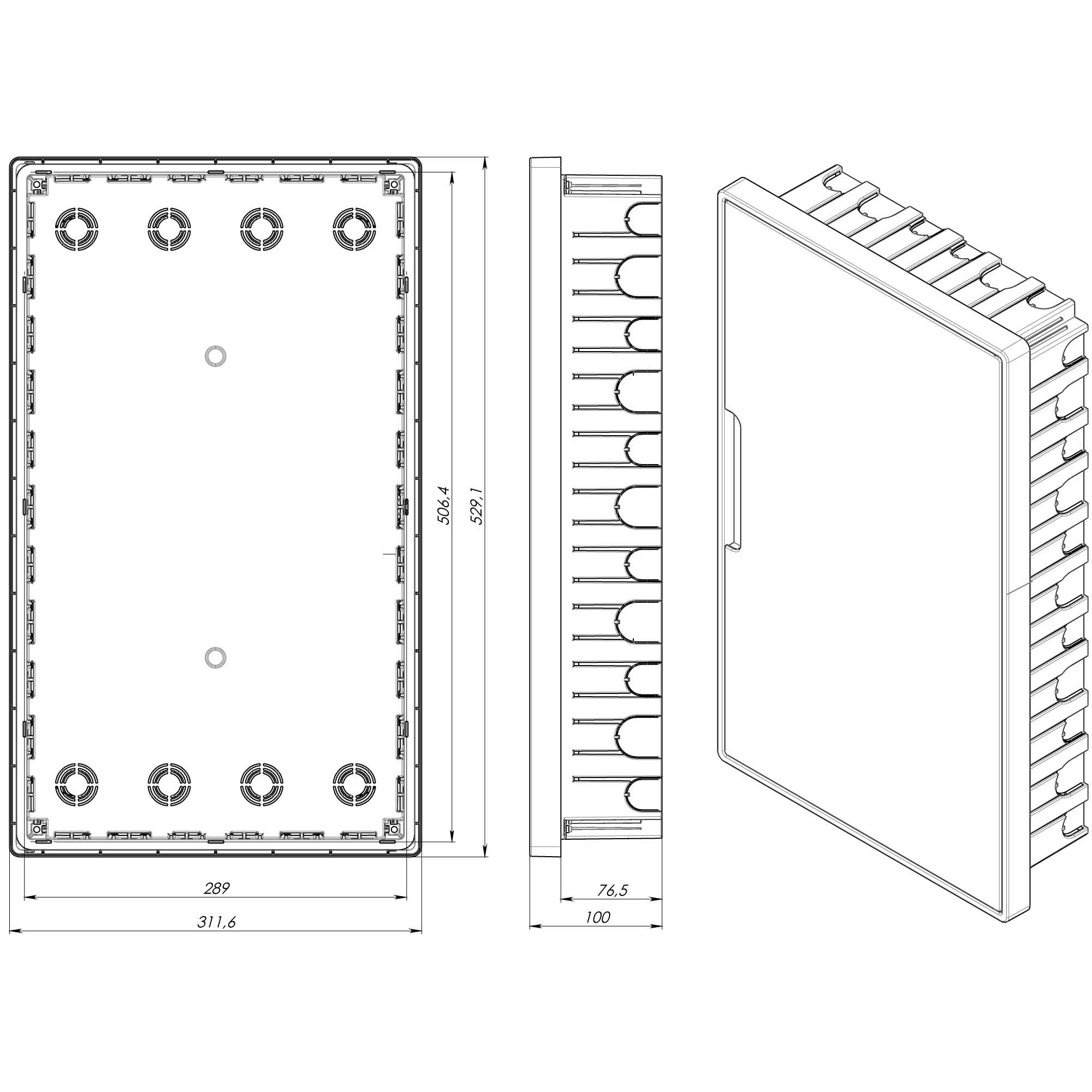

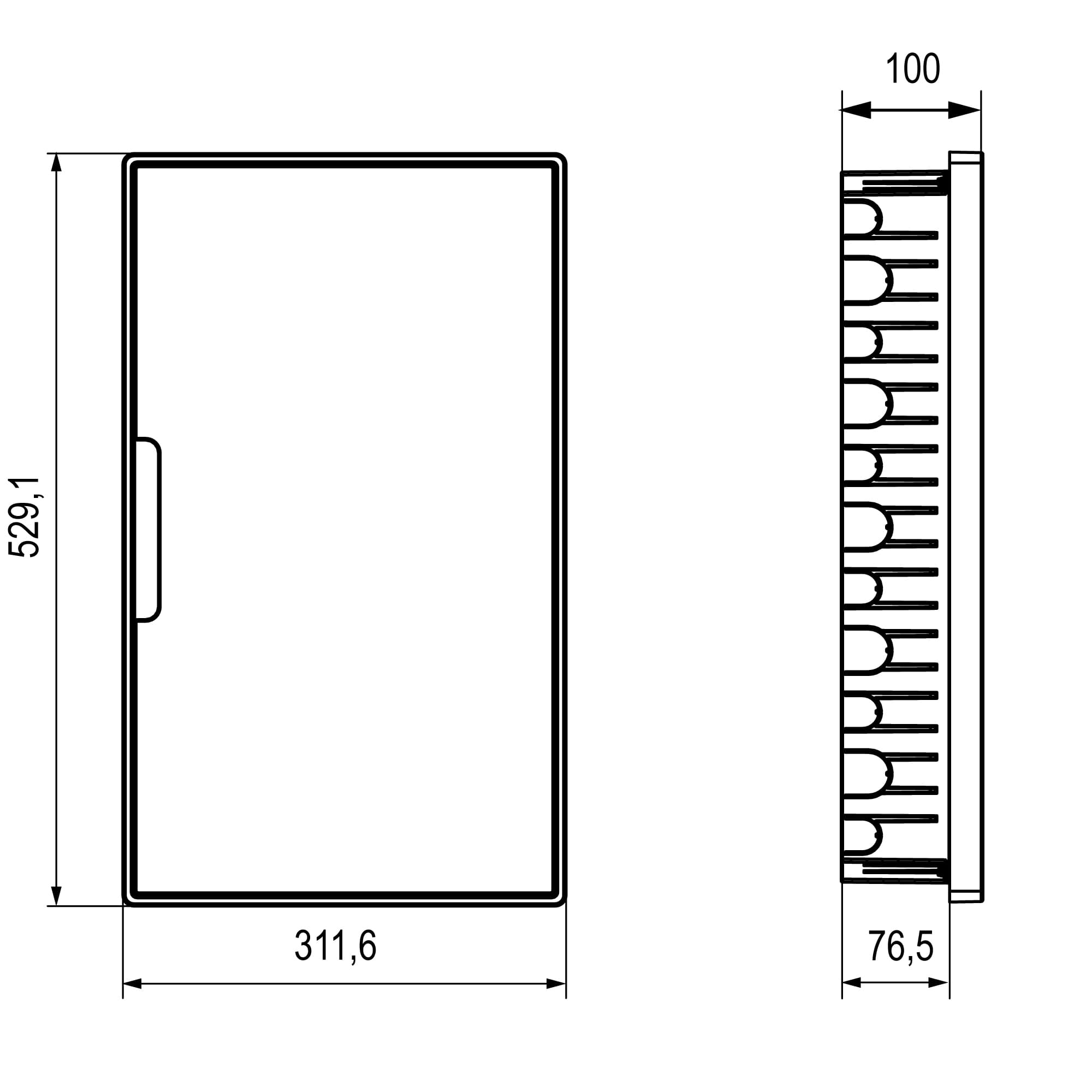

| Width, mm | 311.6 |
| Height, mm | 529.1 |
| Depth, mm | 100 |
| With mounting plate | No |
| Number of doors | 1 |
| Number of rows | 3 |
| Type of cover | Door |
| Extension possible | No |
| DIN-rail | Yes |
| Material housing | Plastic |
| Width in number of modular spacings | 36 |
| Degree of protection (IP) | IP40 |
| Transparent cover/door | Yes |
| With lock | No |
| Cover model | Closed |
| Built-in depth, mm | 76.5 |
| Door color | Transparent |
| Case color | White |
| Impact strength | IK08 |
| Product type | Built-in shield |
| Appointment | Power shield |
| 3 года | 3 years |
| Operating life warranty period | 5 years from the date of sale |
| Service life | 15 years |
| ТУ 2248-012-47022248-2009 | ТУ 27.12.31-130-47022248-2024 |
