Plastic shield 24 modules, built-in FRAME, white, with transparent door, with 4 PEN busbar 2х8 + 2х6 holes

Code: F24B1WT
Plastic shield 24 modules, built-in FRAME, white, with transparent door, with 4 PEN busbar 2х8 + 2х6 holes
Plastic shield 24 modules, built-in FRAME, white, with transparent door, with 4 PEN busbar 2х8 + 2х6 holes
Code: F24B1WT
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Promo
  • Viewed items
Mounting method Flush mounted (plaster)
Colour White

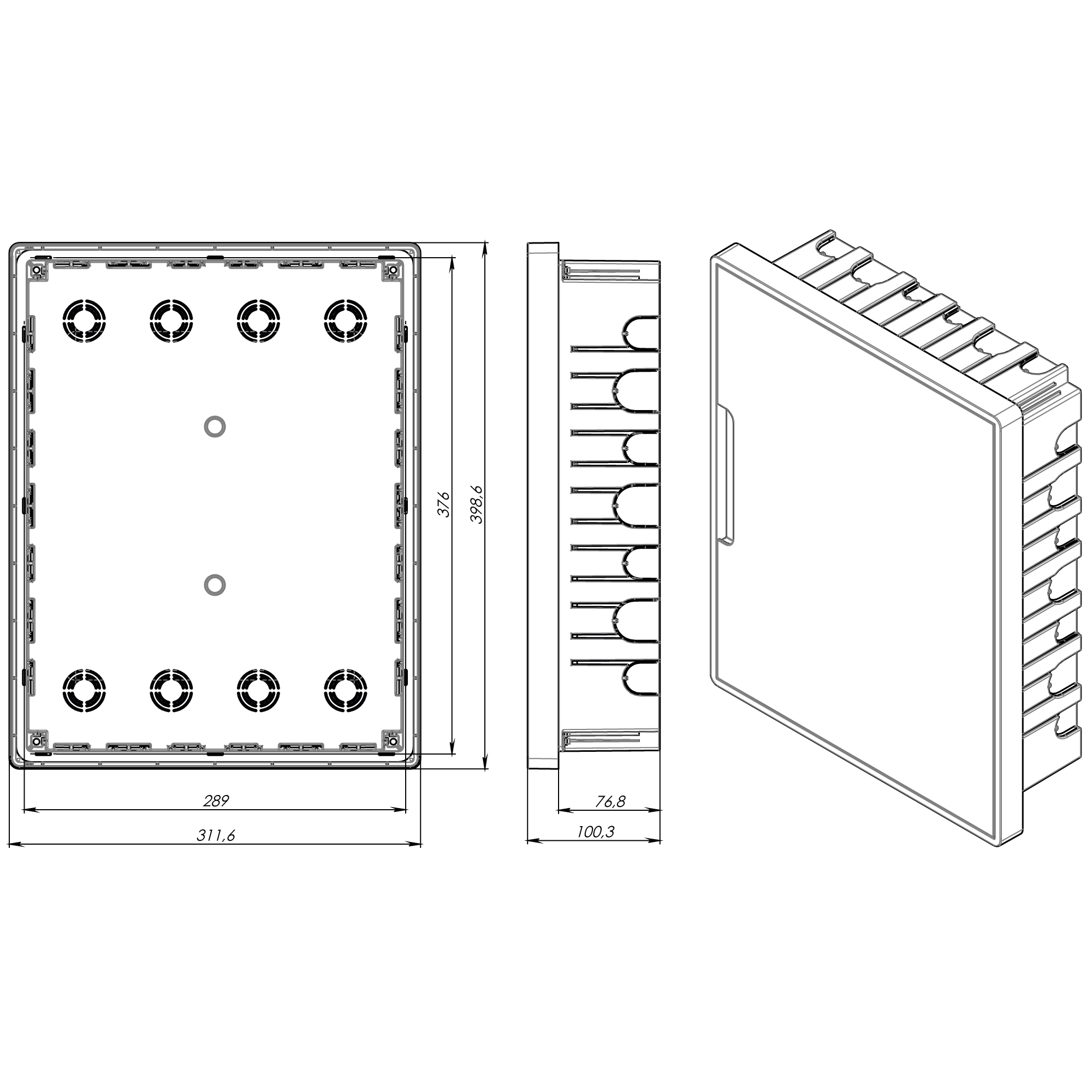

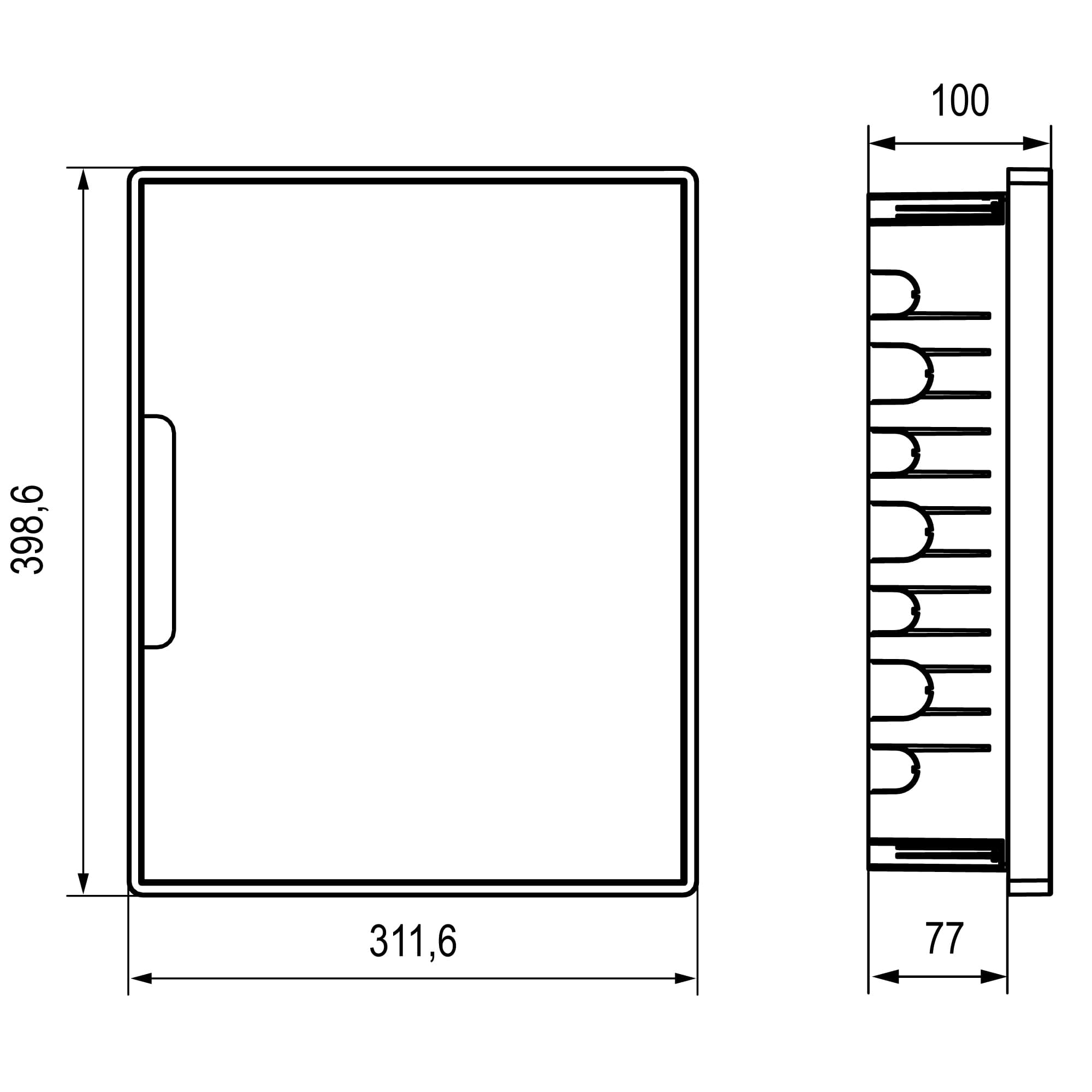

Width, mm 311.6
Height, mm 398.6
Depth, mm 100
With mounting plate No
Number of doors 1
Number of rows 2
Type of cover Door
Extension possible No
DIN-rail Yes
Material housing Plastic
Width in number of modular spacings 24
Degree of protection (IP) IP40
Transparent cover/door Yes
With lock No
Cover model Closed
Built-in depth, mm 77
Door color Transparent
Case color White
Impact strength IK08
Product type Built-in shield
Appointment Power shield
3 года 3 years
Operating life warranty period 5 years from the date of sale
Service life 15 years
ТУ 2248-012-47022248-2009 ТУ 27.12.31-130-47022248-2024
