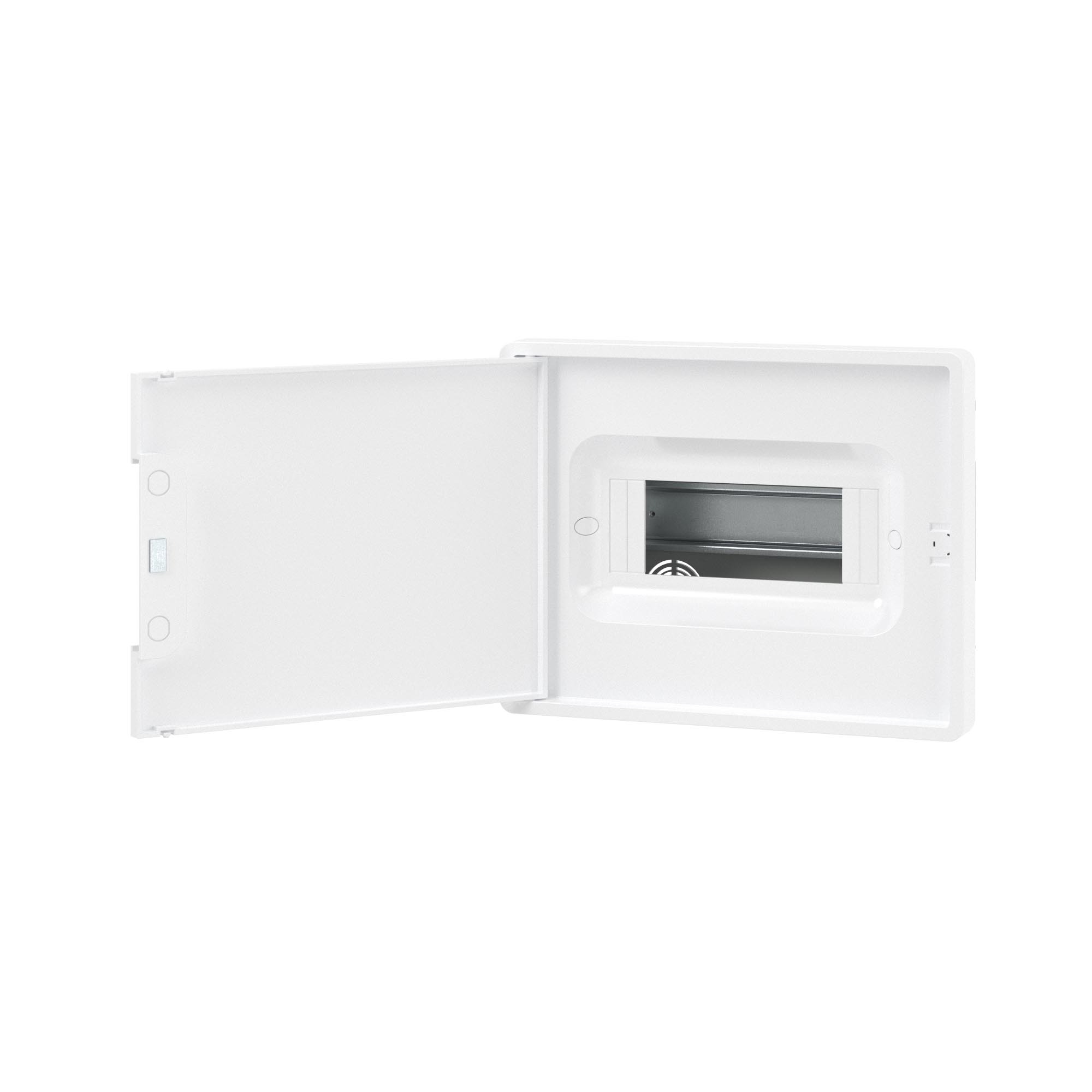

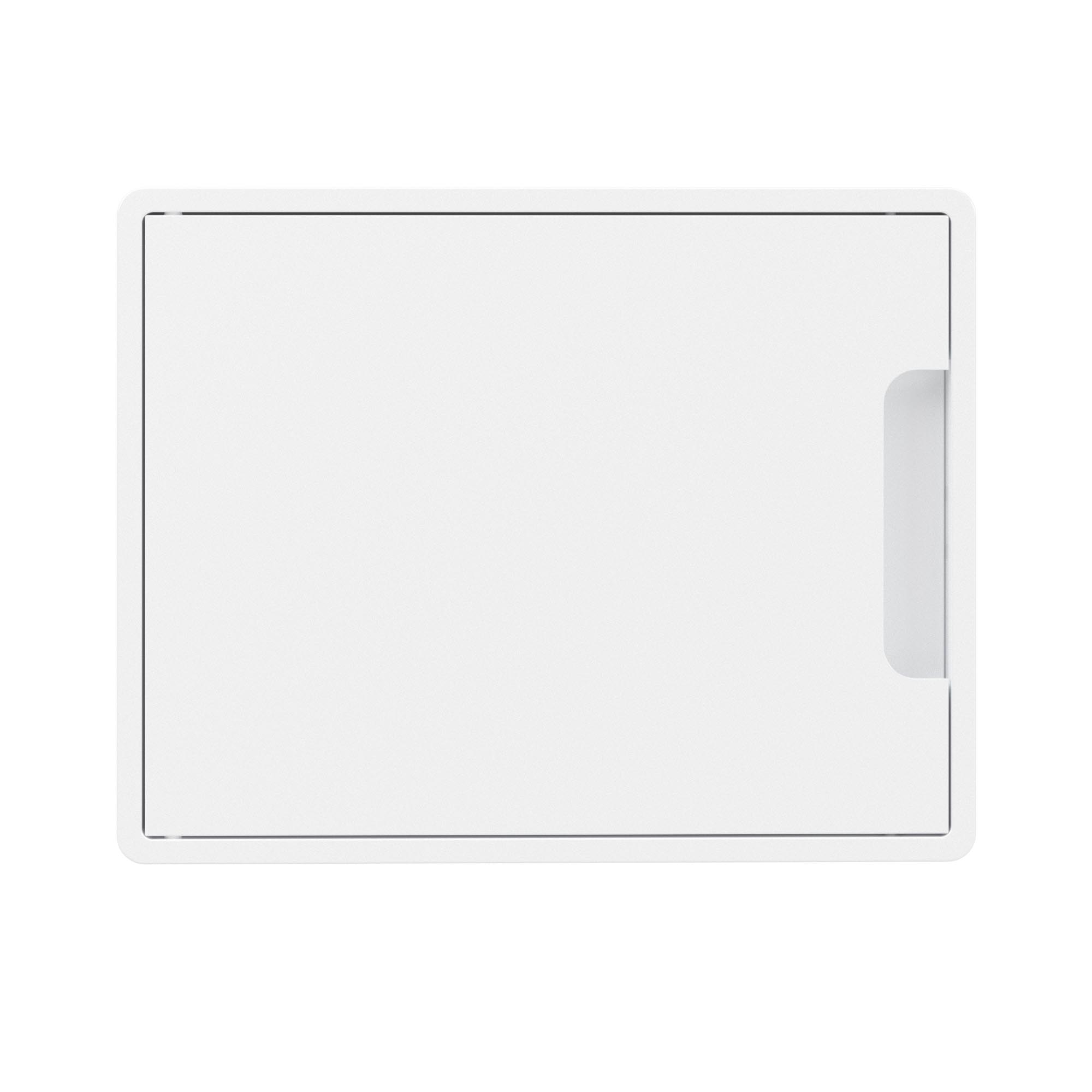

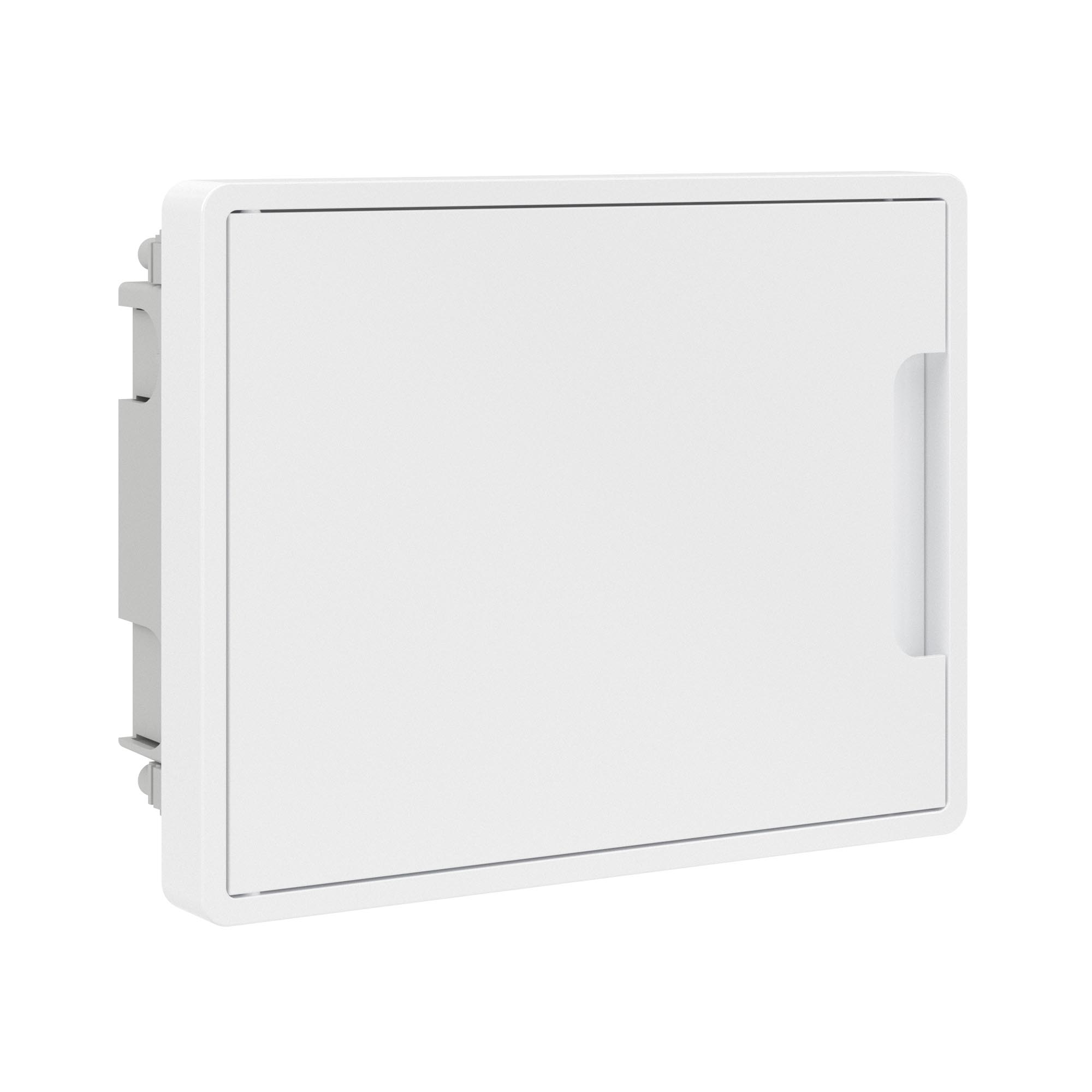

Plastic shield 8 modules, built-in, for hollow walls FRAME, white, withwhite door, with 2 PEN busbar 8+6 holes
Code:
F08B3WW
Code:
F08B3WW
| Mounting method | Hollow wall |
| Colour | White |

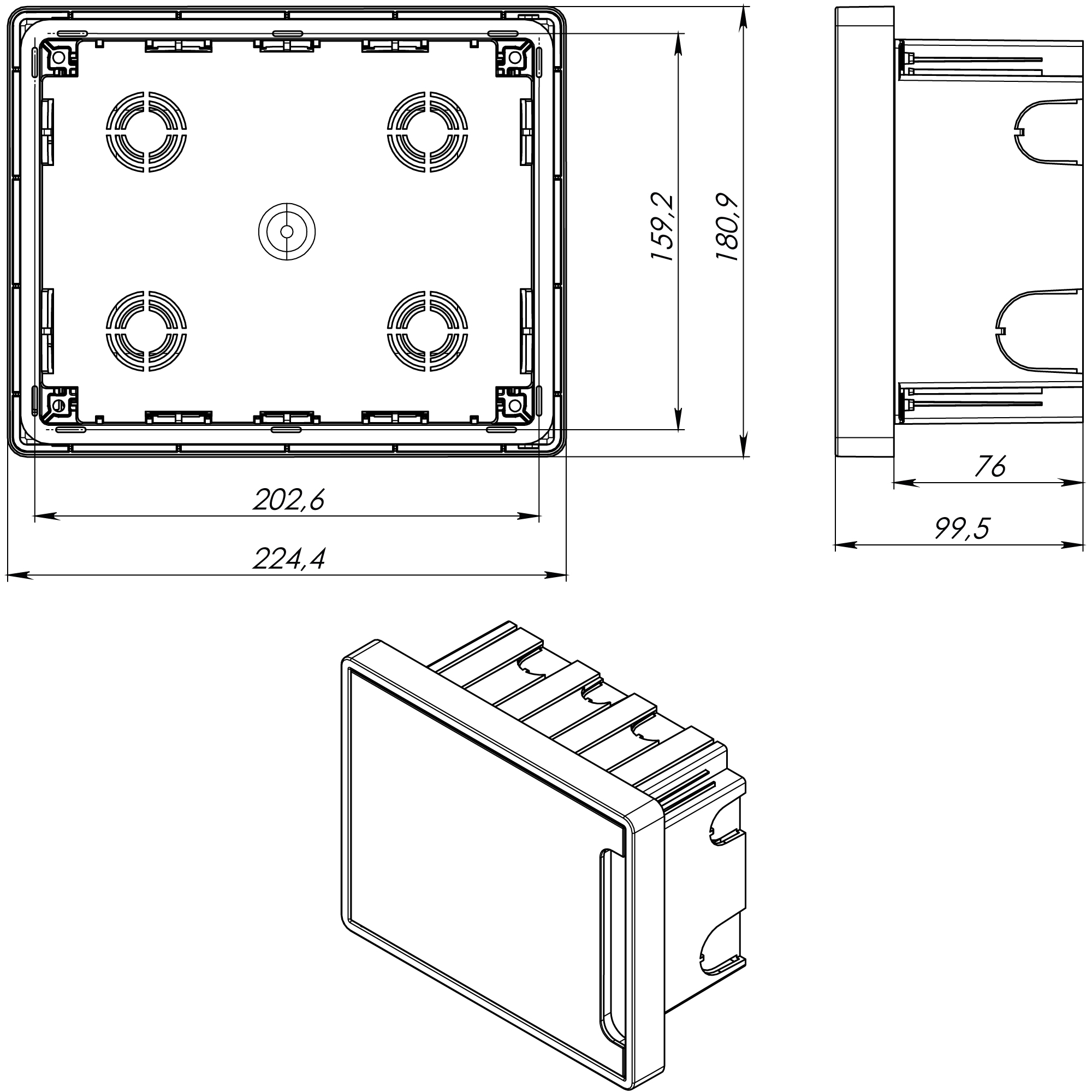

| Width, mm | 224.4 |
| Height, mm | 180.9 |
| Depth, mm | 99.5 |
| With mounting plate | No |
| Number of doors | 1 |
| Built-in depth, mm | 76 |
| Number of rows | 1 |
| Type of cover | Door |
| Extension possible | No |
| DIN-rail | Yes |
| Material housing | Plastic |
| Width in number of modular spacings | 8 |
| Degree of protection (IP) | IP40 |
| Transparent cover/door | No |
| With lock | No |
| Cover model | Closed |
| Case color | White |
| Door color | gray |
| Impact strength | IK08 |
| Product type | Built-in shield |
| Appointment | Power shield |
| 3 года | 3 years |
| Operating life warranty period | 5 years from the date of sale |
| Service life | 15 years |
| ТУ 2248-012-47022248-2009 | ТУ 27.12.31-130-47022248-2024 |
