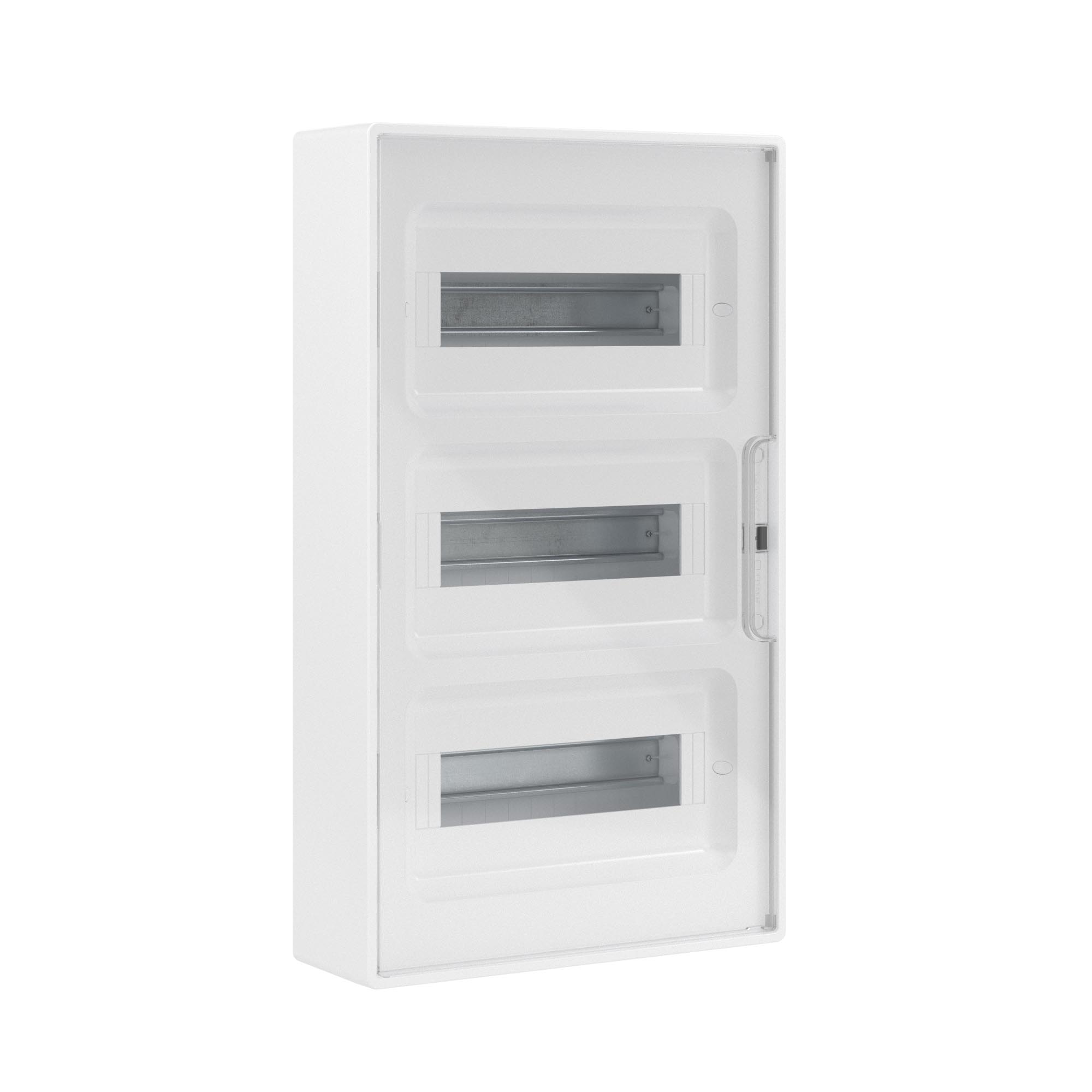

Plastic shield 36 mod wall mounted, white, with transparent door, with 2 PEN busbar 8 holes, and 2 PEN busbar 10 holes

Code: F36W1WT
Plastic shield 36 mod wall mounted, white, with transparent door, with 2 PEN busbar 8 holes, and 2 PEN busbar 10 holes
Plastic shield 36 mod wall mounted, white, with transparent door, with 2 PEN busbar 8 holes, and 2 PEN busbar 10 holes
Code: F36W1WT
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Promo
  • Viewed items
Mounting method Surface mounted (plaster)
Colour White

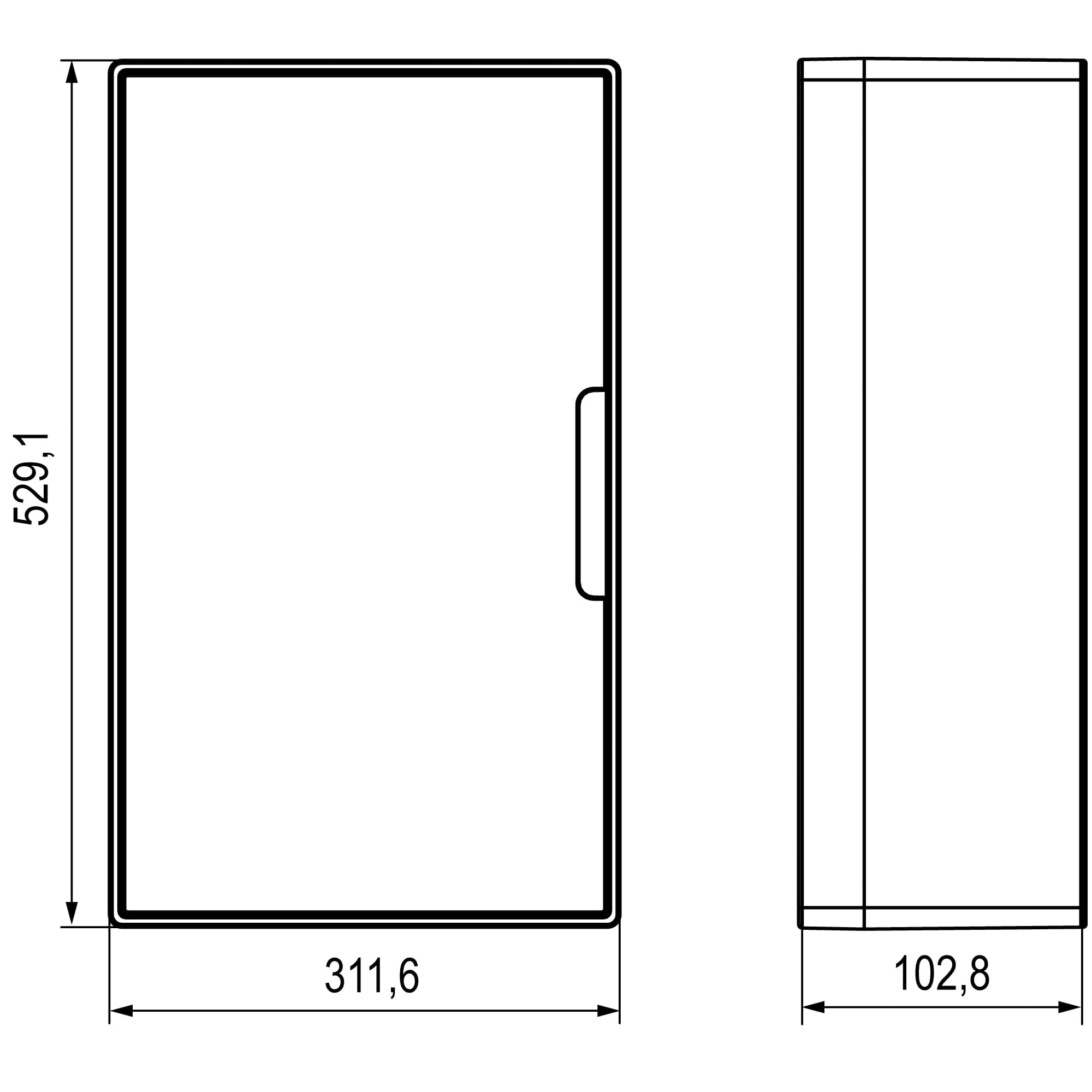

Width, mm 311.6
Height, mm 529.1
Depth, mm 102.8
With mounting plate No
Number of doors 1
Number of rows 3
Type of cover Door
Extension possible No
DIN-rail Yes
Material housing Plastic
Width in number of modular spacings 36
Degree of protection (IP) IP40
Transparent cover/door Yes
With lock No
Cover model Closed
Door color Transparent
Case color White
Impact strength IK08
Product type Mounted shield
Appointment Power shield
3 года 3 years
Operating life warranty period 5 years from the date of sale
Service life 15 years
ТУ 2248-012-47022248-2009 ТУ 27.12.31-130-47022248-2024
