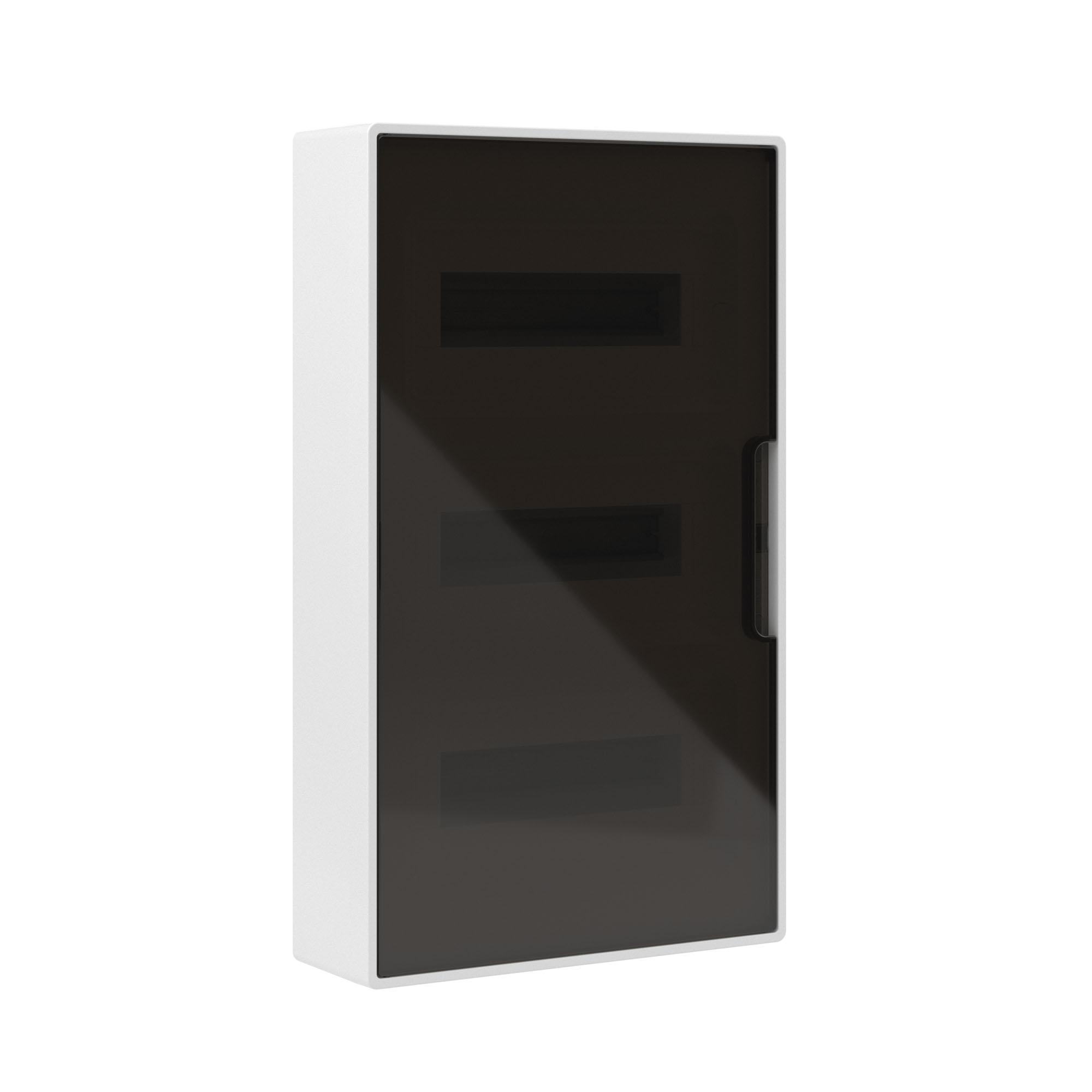

Plastic shield 36 modules wall mounted FRAME, white, with tinted door,with 2 PEN busbar 8 holes and 2 PEN busbar 10 holes

Code: F36W1WD
Plastic shield 36 modules wall mounted FRAME, white, with tinted door,with 2 PEN busbar 8 holes and 2 PEN busbar 10 holes
Plastic shield 36 modules wall mounted FRAME, white, with tinted door,with 2 PEN busbar 8 holes and 2 PEN busbar 10 holes
Code: F36W1WD
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Promo
  • Viewed items
Mounting method Surface mounted (plaster)
Colour White

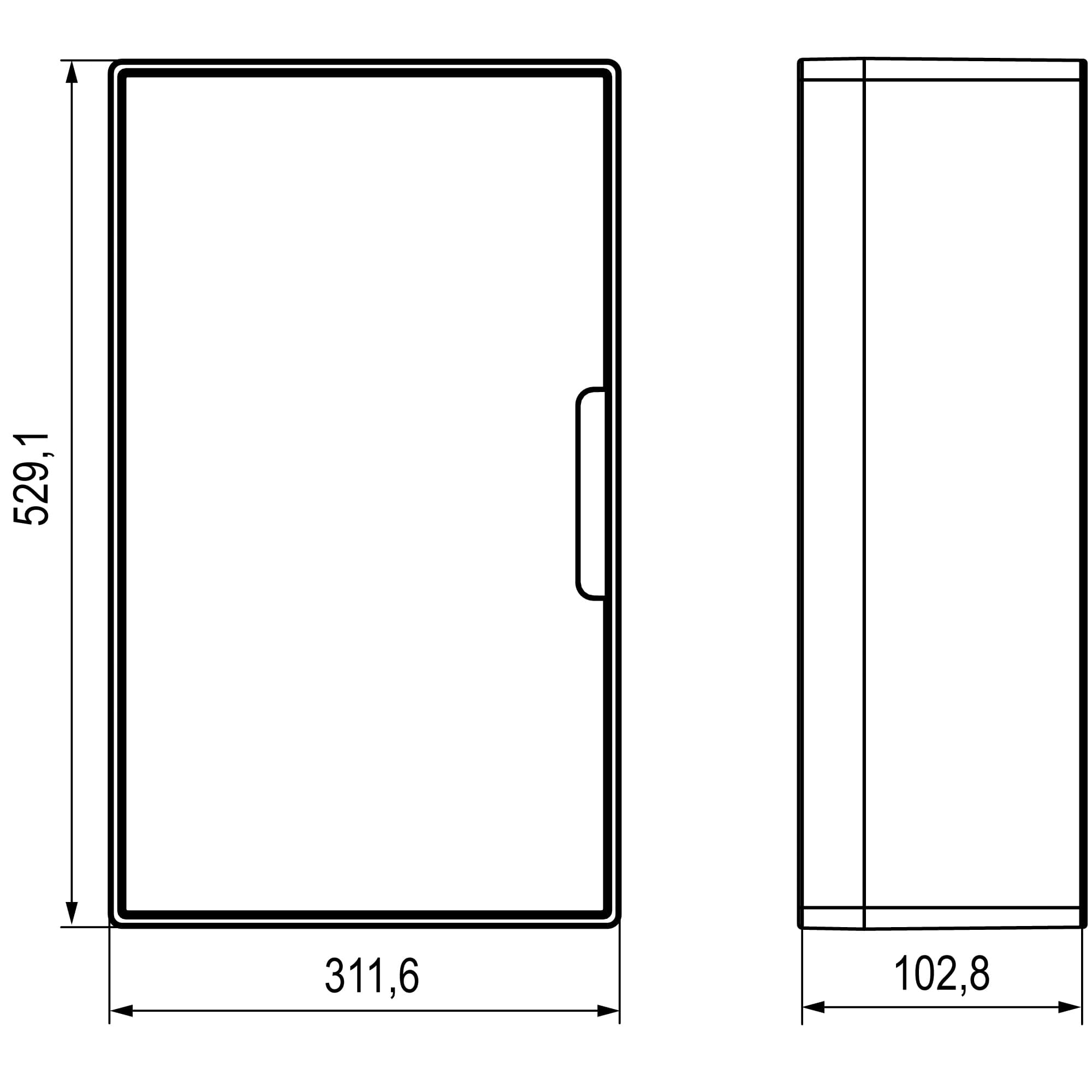

Width, mm 311.6
Height, mm 529.1
Depth, mm 102.8
With mounting plate No
Number of doors 1
Number of rows 3
Type of cover Door
Extension possible No
DIN-rail Yes
Material housing Plastic
Width in number of modular spacings 36
Degree of protection (IP) IP40
With lock No
Cover model Closed
Door color Tinted
Case color White
Impact strength IK08
Product type Mounted shield
Appointment Power shield
3 года 3 years
Operating life warranty period 5 years from the date of sale
Service life 15 years
ТУ 2248-012-47022248-2009 ТУ 27.12.31-130-47022248-2024
