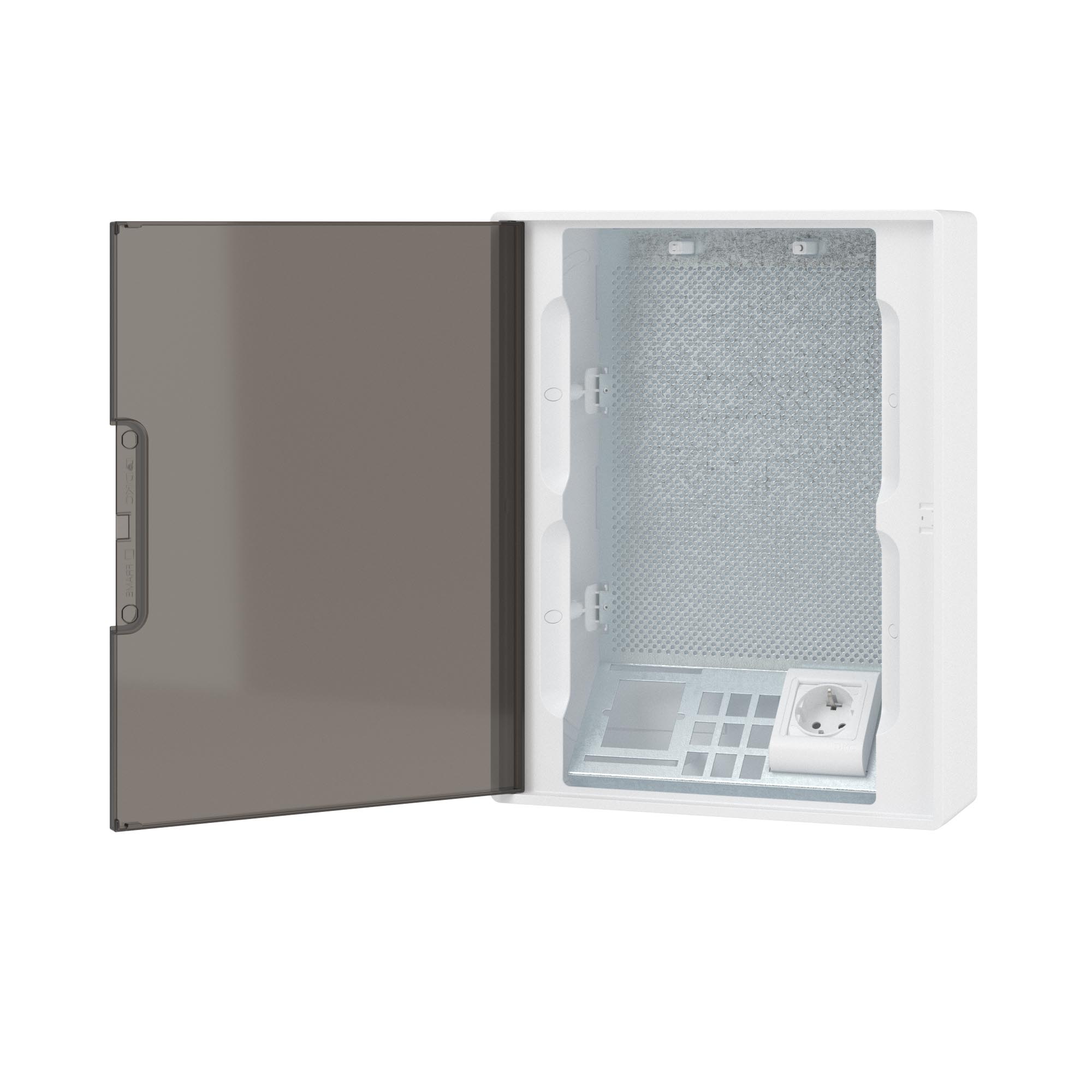

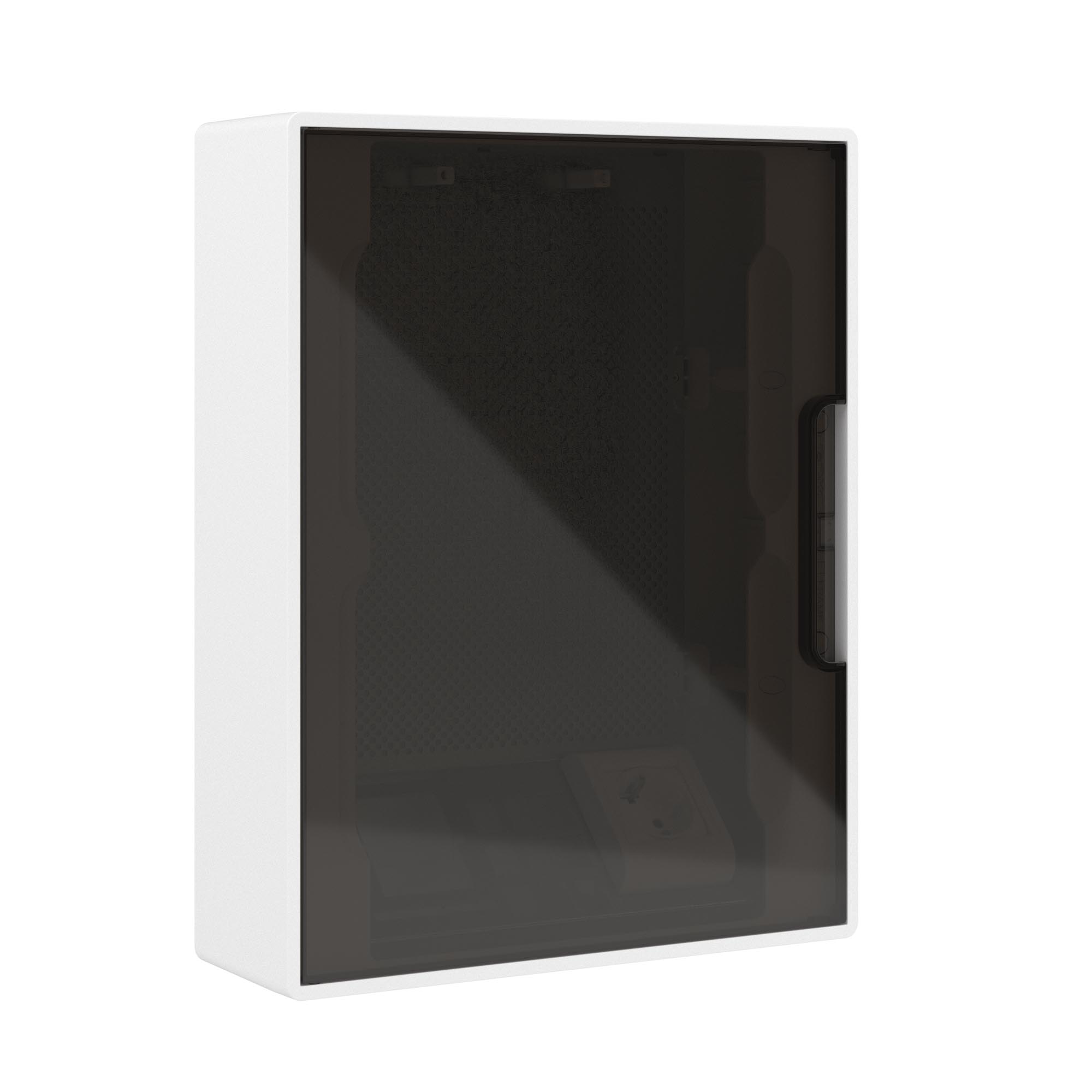

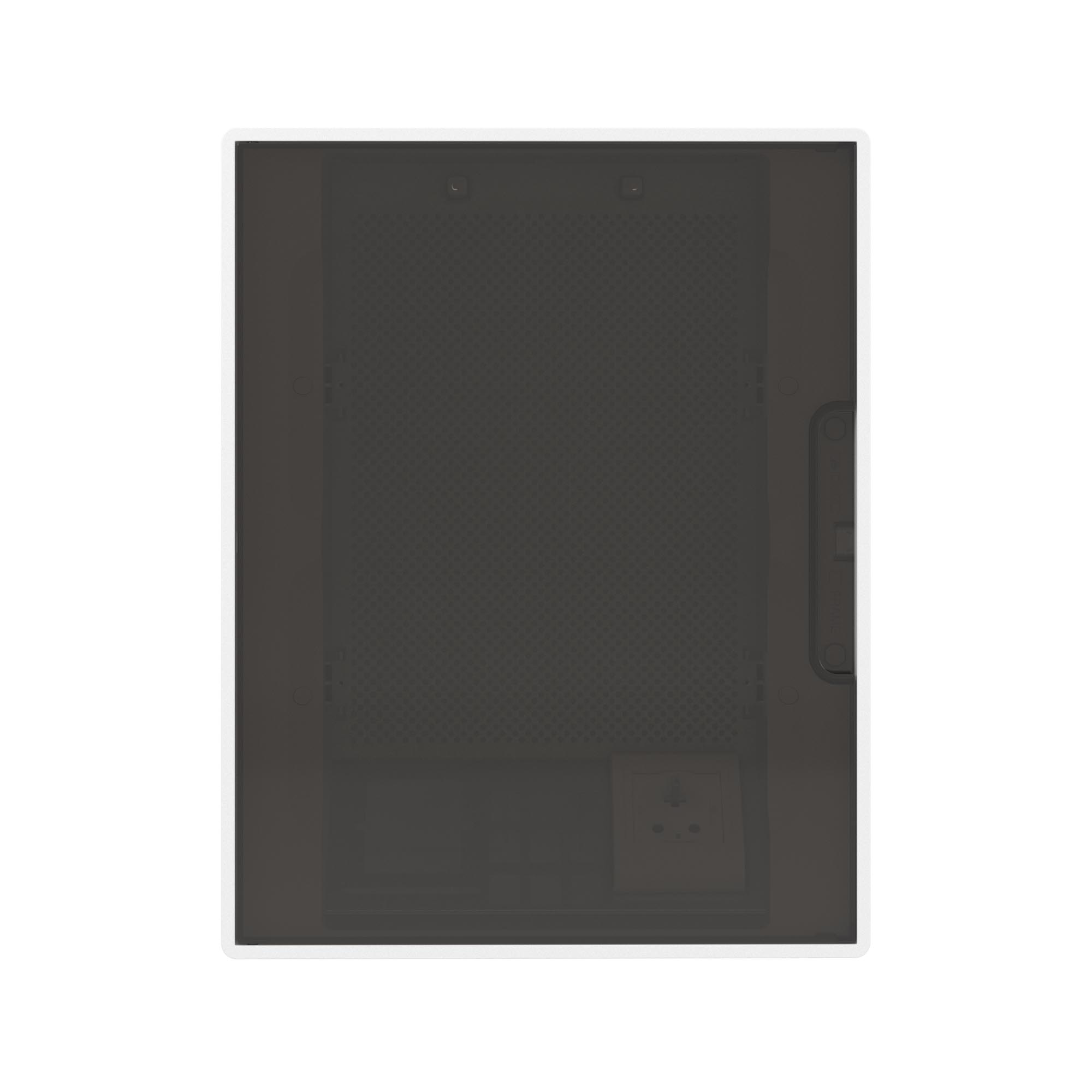

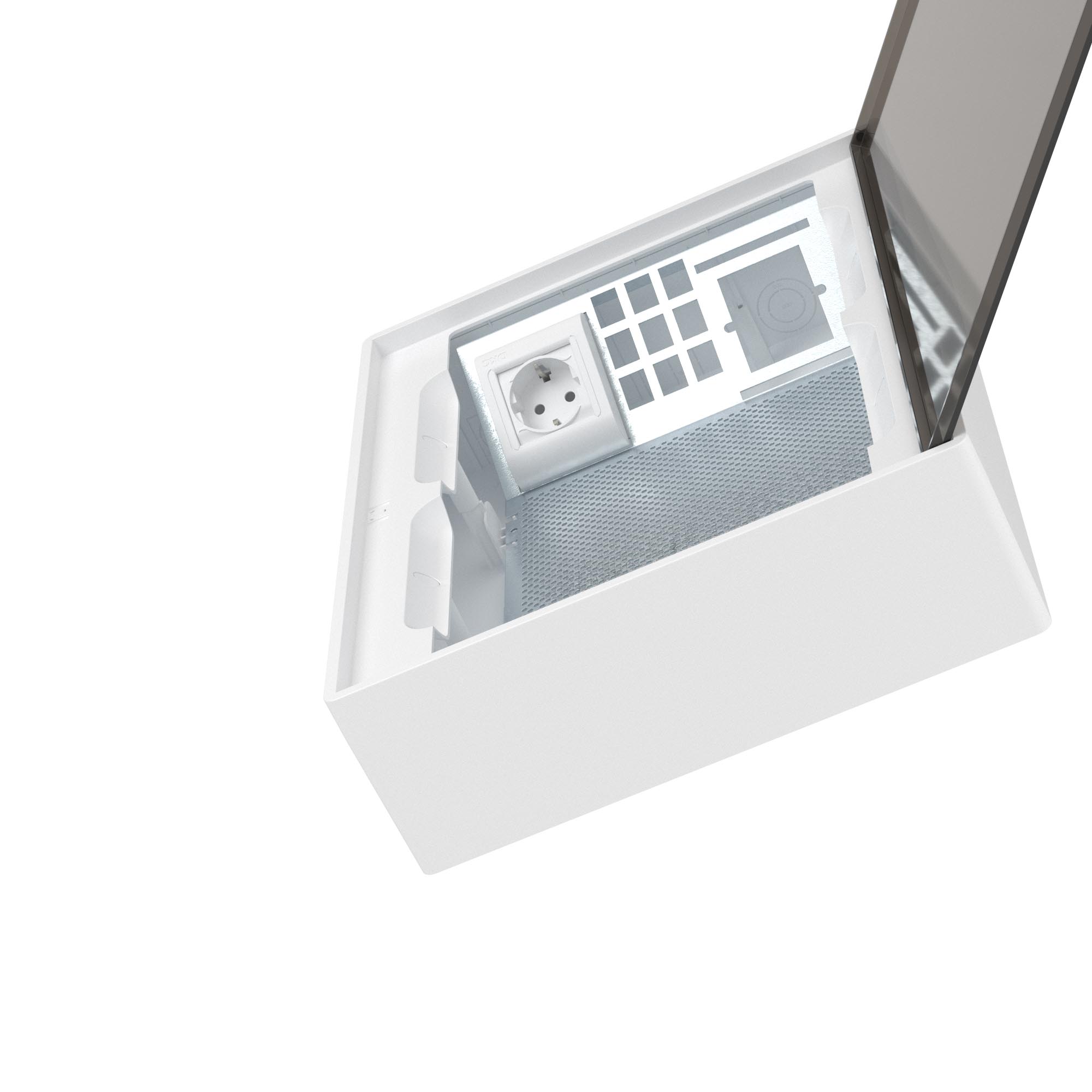

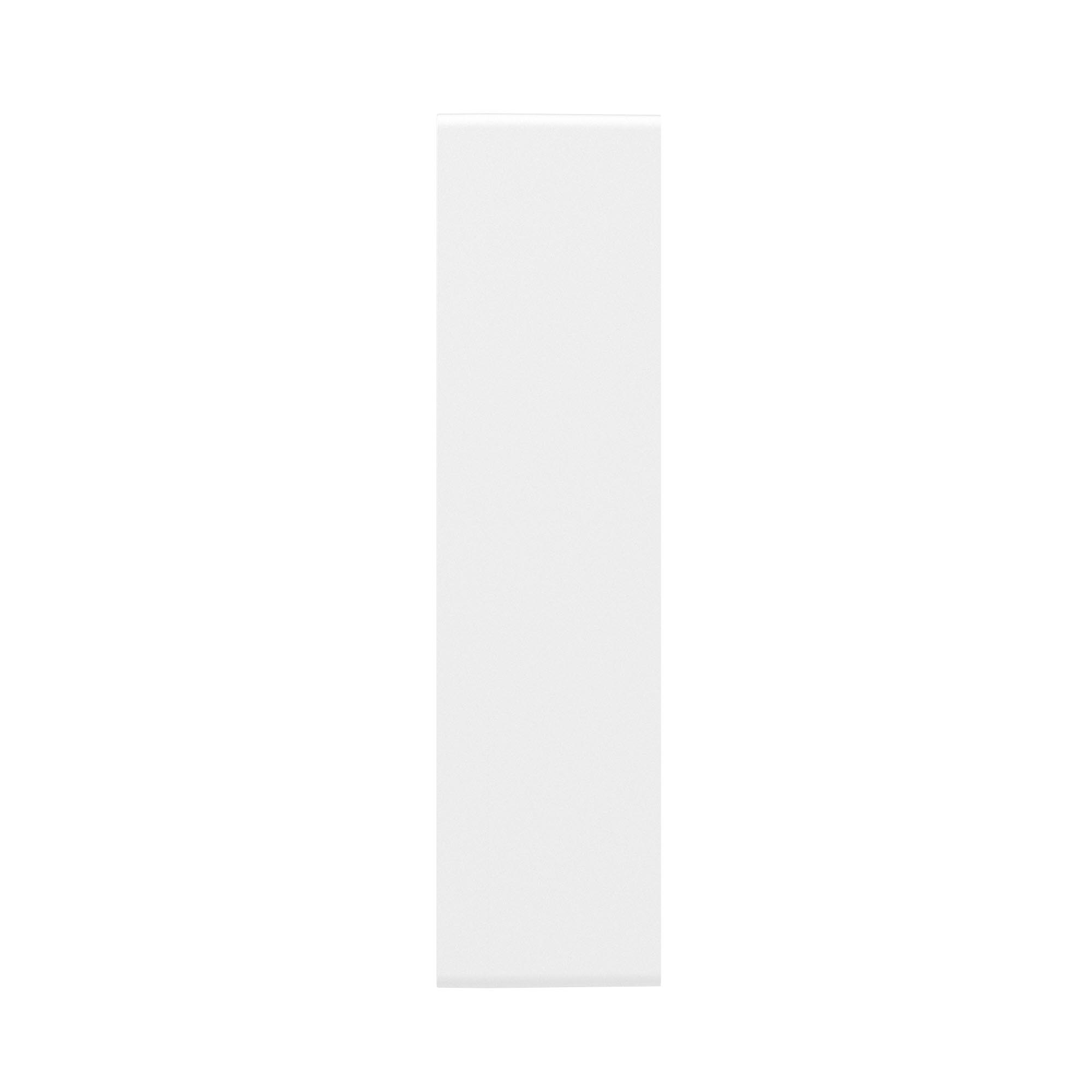

24-module wall-mounted low-current FRAME panel, white, with a tinted door, with a mounting plate, complete with 1 Brava socket (art.76482B) and mounting frame

Code: F24W4WD
24-module wall-mounted low-current FRAME panel, white, with a tinted door, with a mounting plate, complete with 1 Brava socket (art.76482B) and mounting frame
24-module wall-mounted low-current FRAME panel, white, with a tinted door, with a mounting plate, complete with 1 Brava socket (art.76482B) and mounting frame
Code: F24W4WD
  • To ask a question
  • Characteristics
  • Promo
  • Viewed items
Mounting method Surface mounted (plaster)
Colour White
Width, mm 311.6
Height, mm 398.6
Depth, mm 102
With mounting plate Yes
Number of doors 1
Number of rows 2
Type of cover Door
Extension possible No
DIN-rail No
Material housing Plastic
Width in number of modular spacings 24
Degree of protection (IP) IP40
Transparent cover/door No
With lock No
Cover model Closed
Impact strength IK08
Door color Tinted
Case color White
Product type Mounted shield
Appointment Low-current shield
3 года 3 years
Operating life warranty period 5 years from the date of sale
Service life 15 years
ТУ 2248-012-47022248-2009 ТУ 27.12.31-130-47022248-2024
