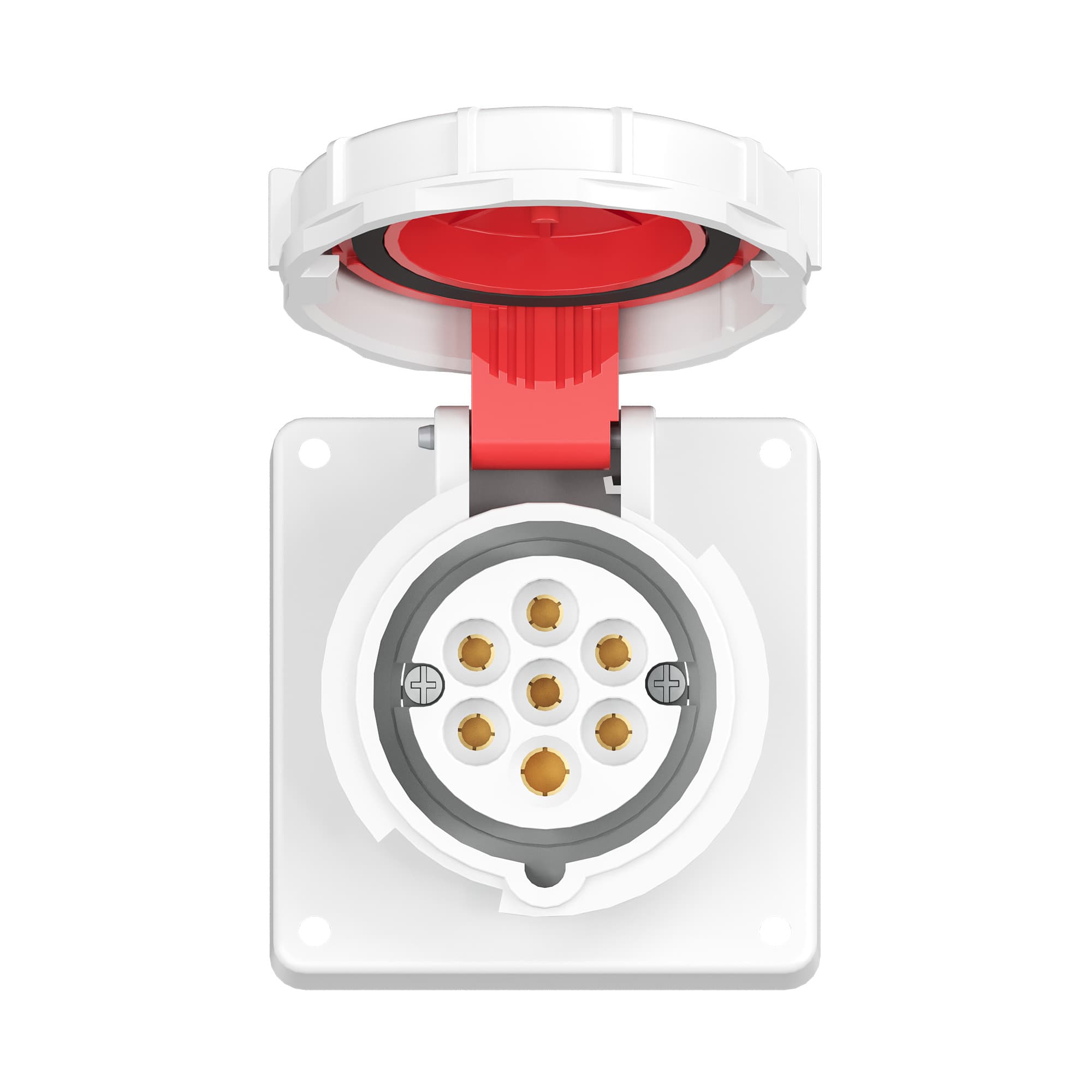

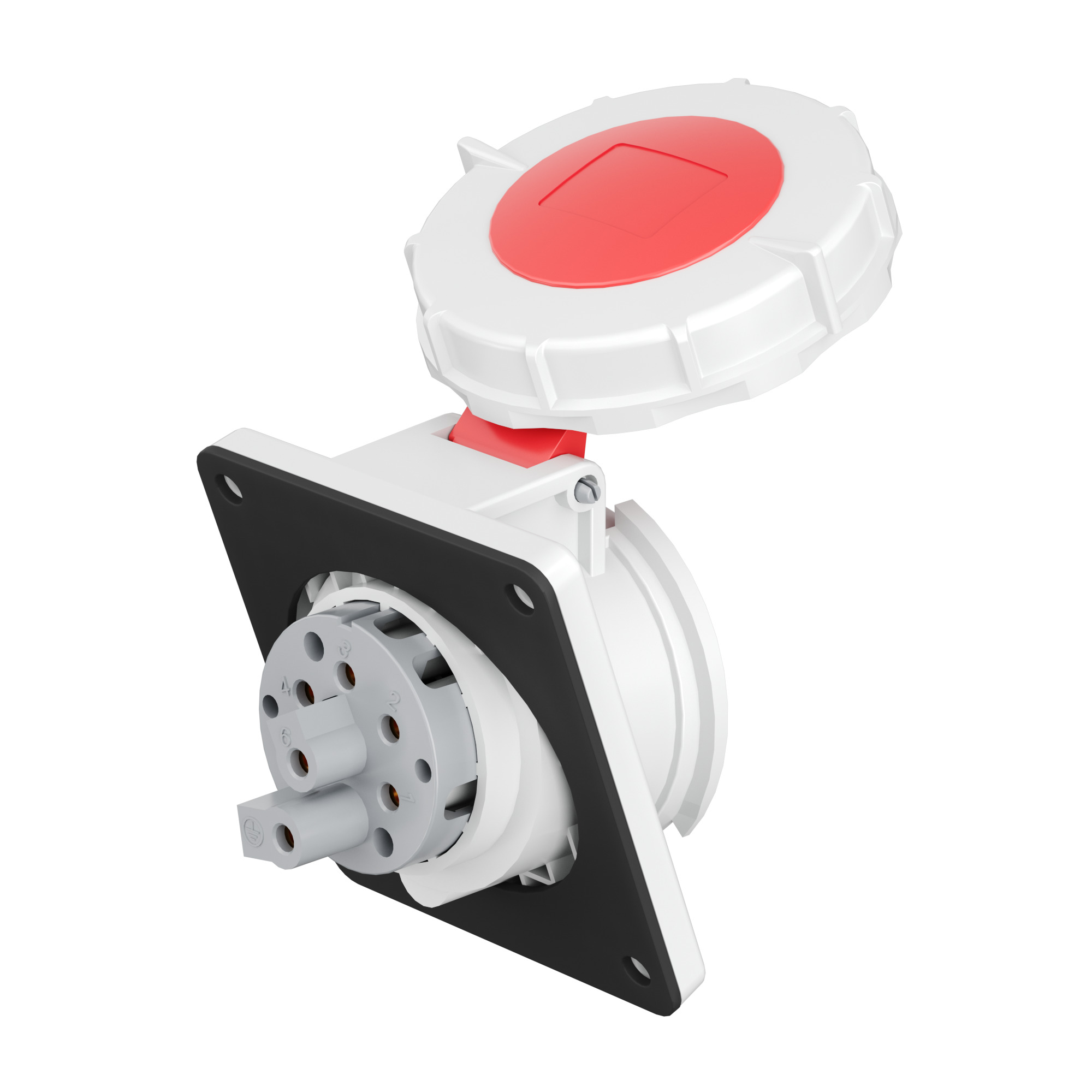

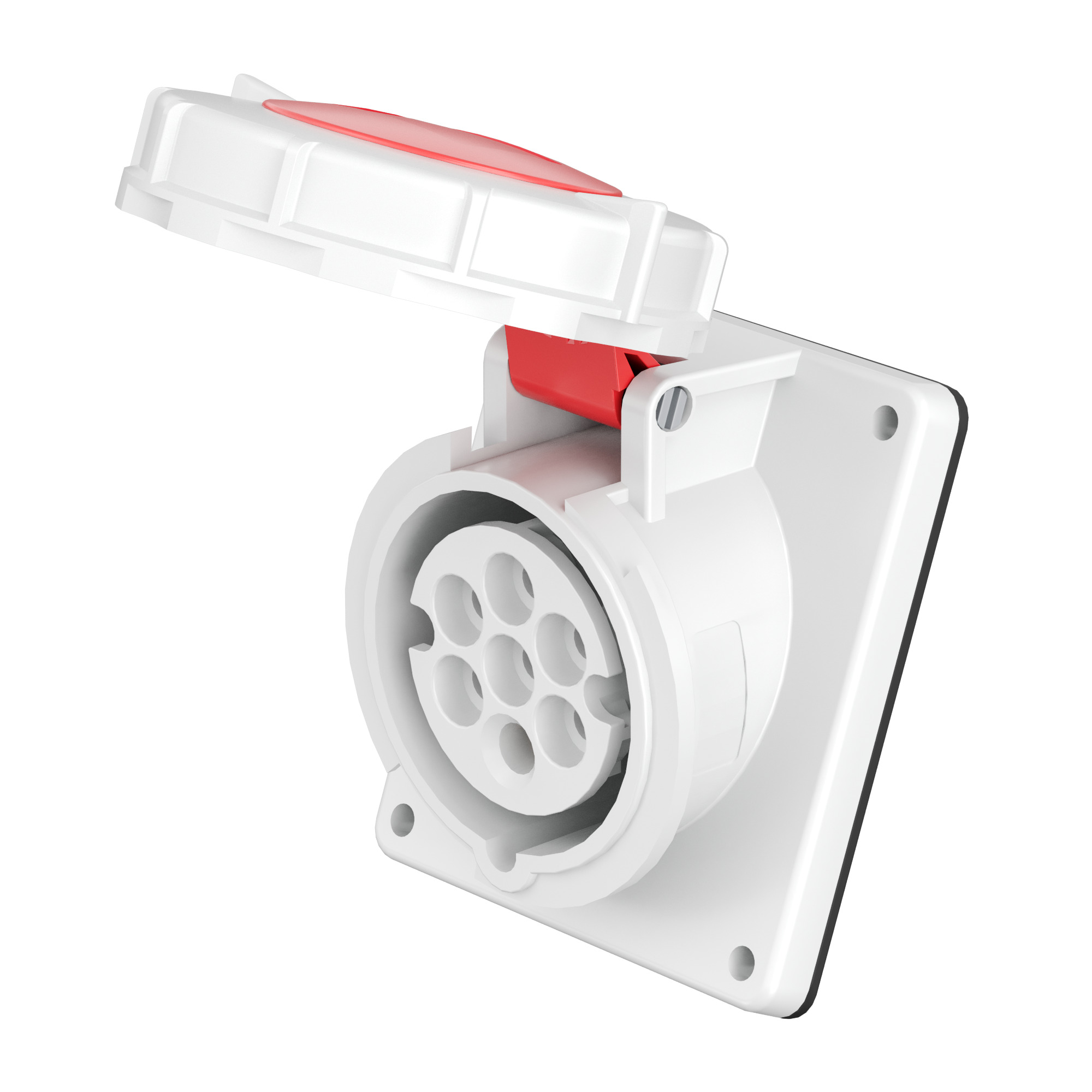

Panel angled socket IP67 16A 6P+E 400V

Code: PAS676-016-40
Panel angled socket IP67 16A 6P+E 400V
Panel angled socket IP67 16A 6P+E 400V
Code: PAS676-016-40
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Number of poles 7
Rated frequency, Hz 50...60
Material Plastic
IEC-amperage, A 16
Connection system Screwed terminal
Angle of plug Angled
Rated voltage, V 400...400
Degree of protection (IP) IP67
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 100
Flange size horizontal, mm 92
Height 100 mm
GWFI +960 °С
Q'ty of poles 6P+E
Temperature of operation +40 °С
Material of case Ployamide
Voltage 400V
Clock position 6h
Degree of protection IP67
-5°С ... +60°С -25 °С...+40 °С
Temperature of dinamic operation -25 °С...+40 °С
Temperature of static operation -40 °С...+40 °С
Product type Flush-mounting socket
Current 16A
Color Red
Width 92 mm
Honest SIGN system. Commodity group Radio‑electronic products
Russian Classification of Products by Economic Activities (OKPD 2) 27.33.13.110
Commodity Nomenclature of Foreign Economic Activity 8536699008
