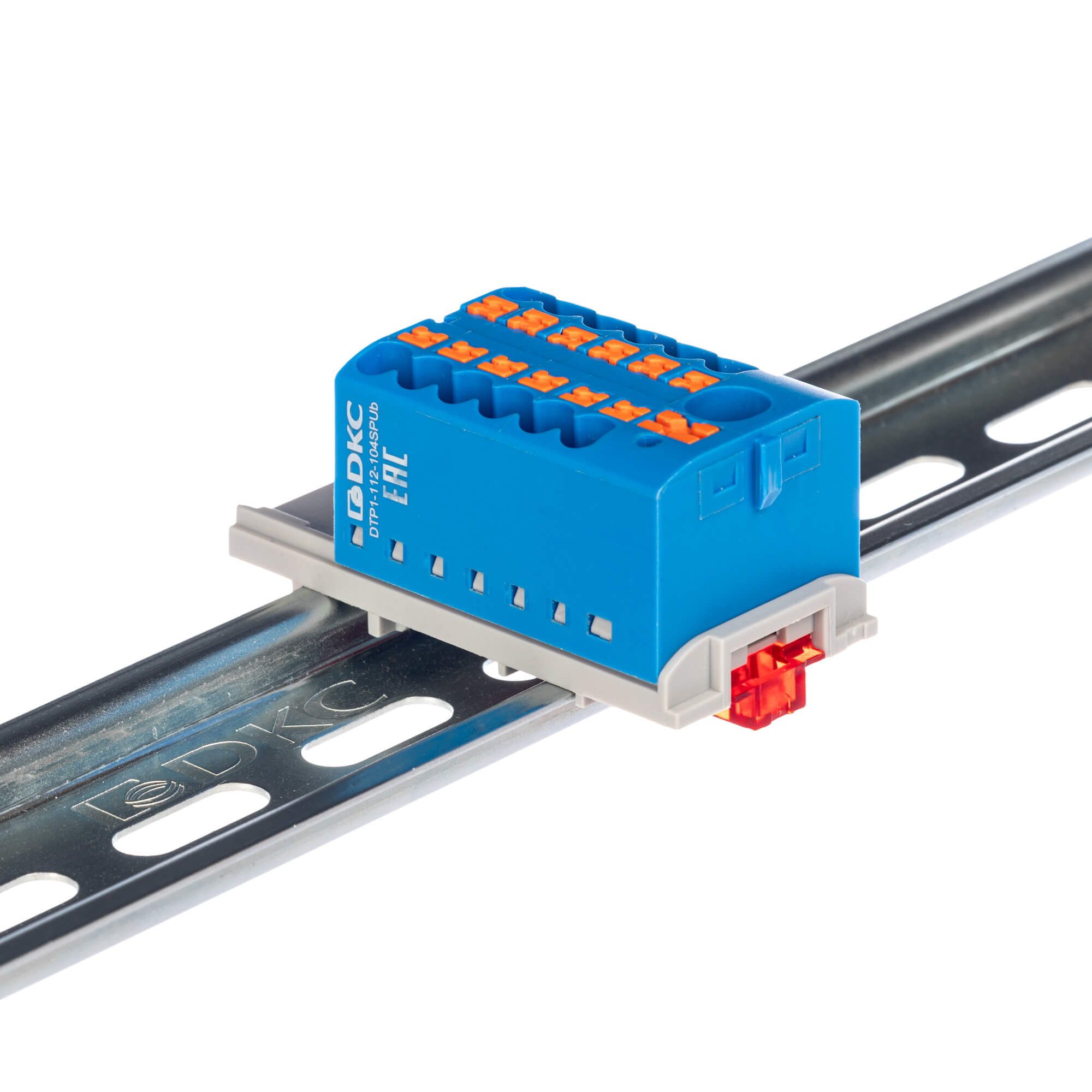

Distribution block, vertical adaptor, push-in, 1/12 connection points 6/2.5qmm, blue
Code:
DTP1-112-104SPUB-V
Code:
DTP1-112-104SPUB-V
| Mounting method | DIN rail (top hat rail) 35 mm |
| Colour | Blue |
| Rated voltage, V | 690 |
| Length, mm | 28.8 |
| Operating temperature, °C | -40...105 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Width/grid dimension, mm | 41.3 |
| Height at lowest possible mounting height, mm | 21.7 |
| Closing plate required | No |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 13 |
| Internally connected stages | Yes |
| Connectable conductor cross section solid-core, mm² | 0.2...10 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.2...6 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...6 |
| Connectable conductor cross section multi-wired, mm² | 0.2...6 |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| Rated current In, A | 41 |
| Explosion-tested version 'Ex e' | No |
| Number of poles | 13 |
| With shock protection | Yes |
| Core cross section, mm² | 6 |
| Function | Distribution |
| Clamp type | Push-in |
| Width | 28,8 mm |
| Number of connection points | 13 |
| Rated cross-section | 2,5 mm2 |
| Max. cross-section | 4 mm2 |
| Stripping length | 8−10 mm |
| Rated cross-section input line | 6 mm2 |
| Max. cross-section input line | 10 mm2 |
| Stripping length input line | 10−12 mm |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Max.current | 32 A |
| Max.current total | 57 A |
| Material of case | PA |
| Weight | 0,027 kg |
| Line contact 6(10) мм2 | Yes |
| Mounting type | Vertical on DIN-rail |
