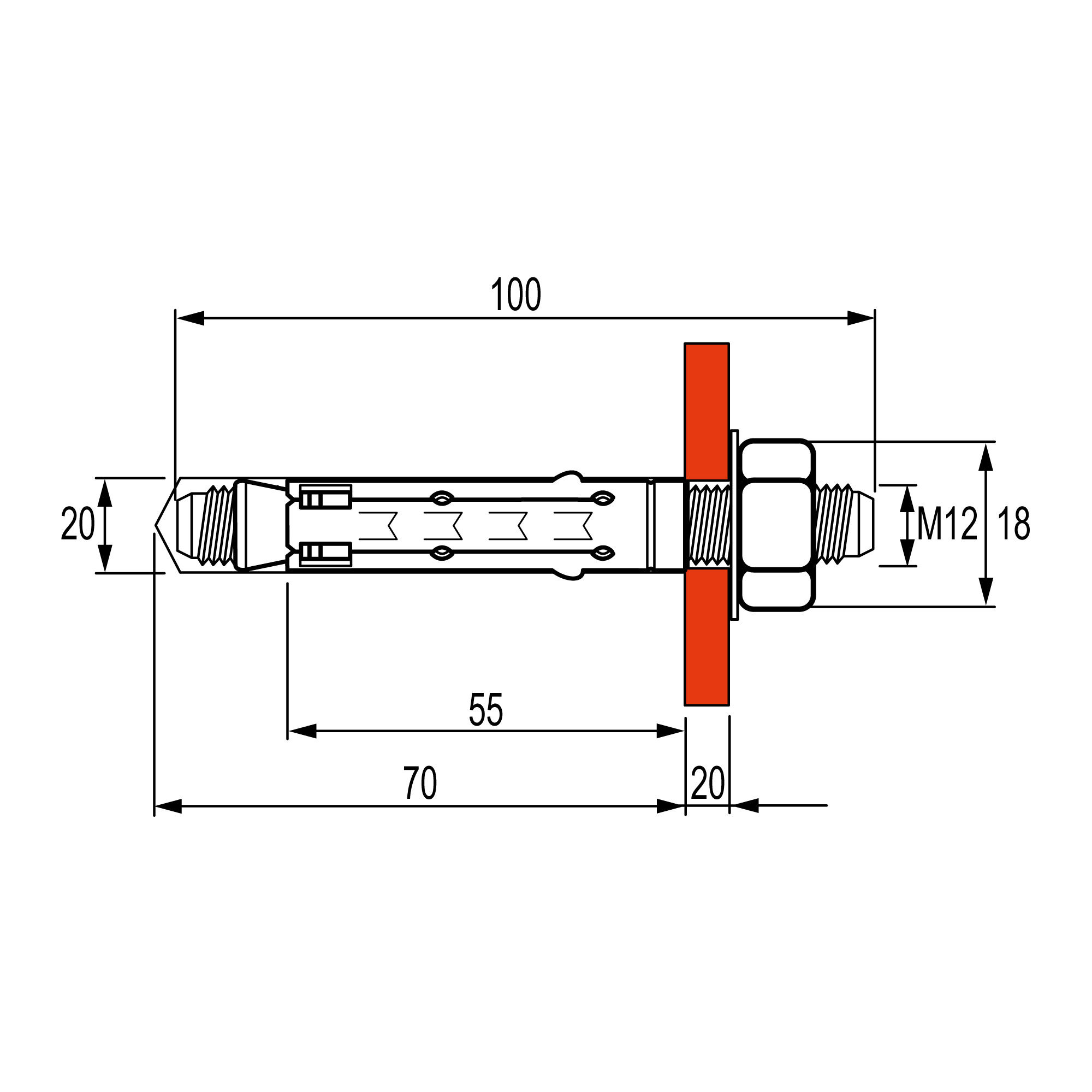

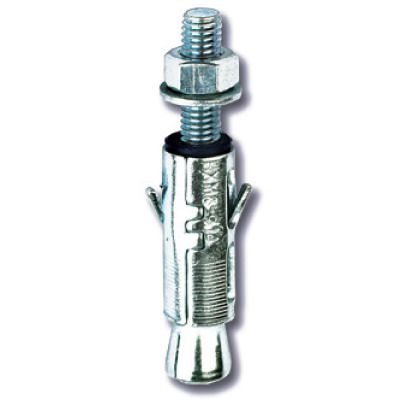

Heavy sleeve metal anchor with stud М12
Code:
CM471275
Heavy sleeve metal anchor with stud М12
Code:
CM471275
Model | Impact |
Surface protection | Galvanic/electrolytic zinc plated |
Min. drill hole depth, mm | 70 |
Material sleeve | Steel |
Length, mm | 100 |
Thread size (metric) | 12 |
Drill hole diameter, mm | 20 |
Self boring | Yes |
App. load pull zone, kN | 28.7 |
Fastening provision | Nut |
Material | Pre-galvanized |
Threading | M12 |
Length | 100 mm |
Type | Anchor with stud |
Analogs
Certificates
Name | Document |
---|---|
