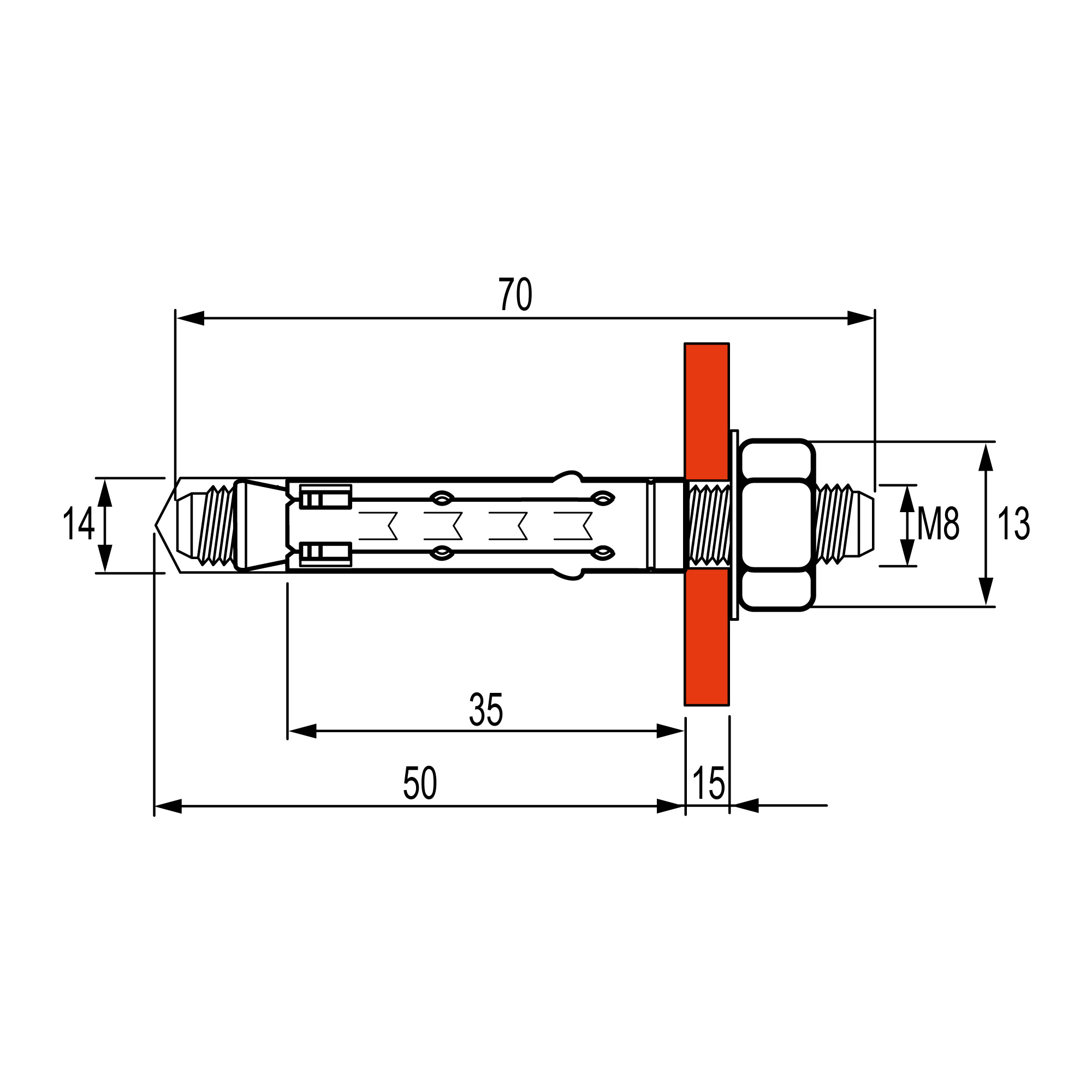

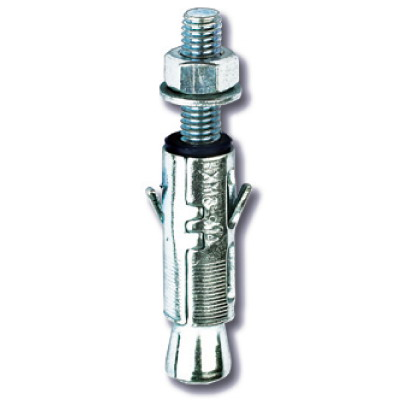

Heavy sleeve metal anchor with stud М8

Code: CM470850
Model Impact
Surface protection Galvanic/electrolytic zinc plated
Min. drill hole depth, mm 50
Material sleeve Steel
Length, mm 70
Thread size metric (M..) 8
Drill hole diameter, mm 14
Self boring No
App. load pull zone, kN 1720
Approval existing Yes
Mounting feature Nut
Raw material PVC
Length, mm 70
Threading M16×50
Certificates
Name Document
