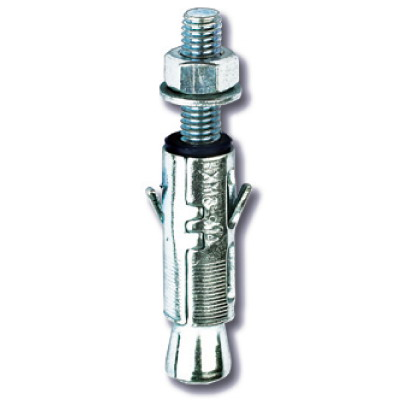

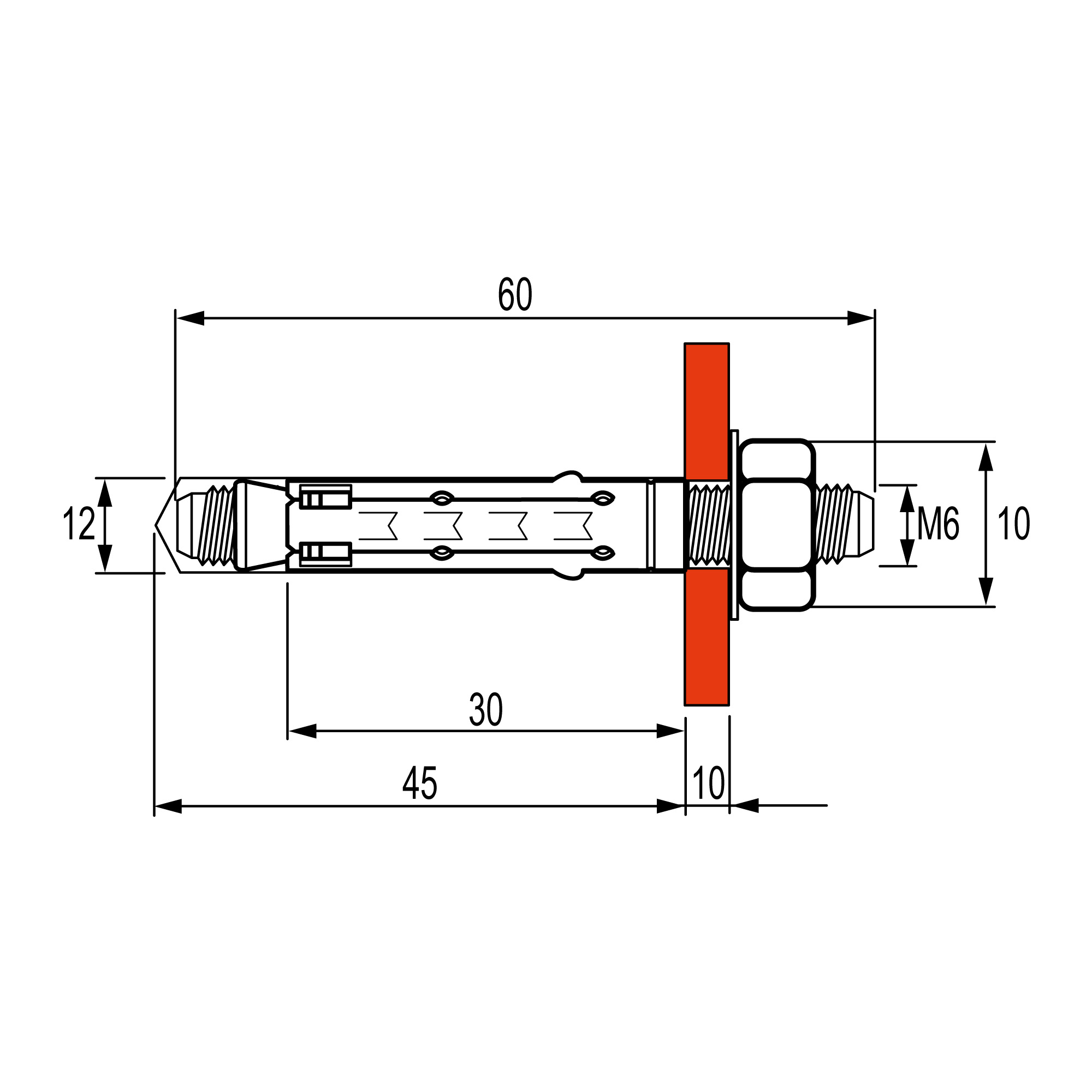

Heavy sleeve metal anchor with stud М6

Code: CM470645
Material PVC
Length, mm 60
type of thread M6
Model Impact
Surface protection Galvanic/electrolytic zinc plated
Min. drill hole depth, mm 45
Material sleeve Steel
Length, mm 60
Thread size metric (M..) 6
Drill hole diameter, mm 12
Self boring No
App. load pull zone, kN 1280
Approval existing Yes
Mounting feature Nut
