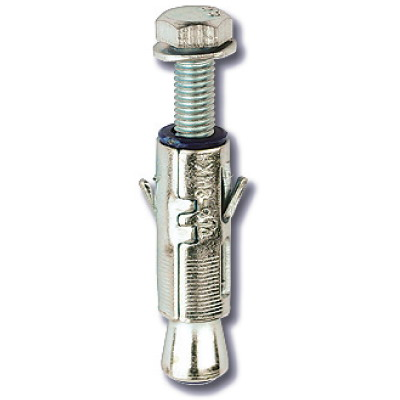

Heavy sleeve metal anchor with bolt М12
Code: CM461275
Heavy sleeve metal anchor with bolt М12
Code: CM461275
Model | Impact |
Surface protection | Galvanic/electrolytic zinc plated |
Min. drill hole depth, mm | 70 |
Material sleeve | Steel |
Length, mm | 90 |
Thread size (metric) | 12 |
Drill hole diameter, mm | 20 |
Self boring | Yes |
App. load pull zone, kN | 28.7 |
With approval | Yes |
Fastening provision | L-hook screw |
Material | Pre-galvanized steel |
Threading | M12 |
Length | 90 mm |
Type | Anchor with bolt |
