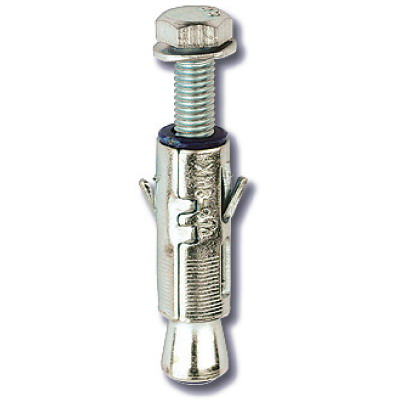

Heavy sleeve metal anchor with bolt М10

Code: CM461065

Heavy sleeve metal anchor with bolt М10

Code: CM461065
Model Impact
Surface protection Galvanic/electrolytic zinc plated
Min. drill hole depth, mm 58
Material sleeve Steel
Length, mm 80
Thread size (metric) 10
Drill hole diameter, mm 16
Self boring Yes
App. load pull zone, kN 24.6
With approval Yes
Fastening provision L-hook screw
Material Pre-galvanized steel
Threading M10
Length 80 mm
Type Anchor with bolt
