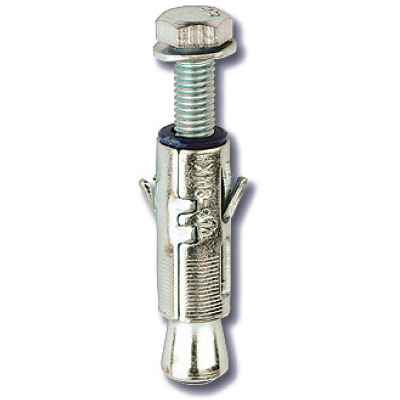

Heavy sleeve metal anchor with bolt М6
Code:
CM460645
Heavy sleeve metal anchor with bolt М6
Code:
CM460645
Model | Impact |
Surface protection | Galvanic/electrolytic zinc plated |
Min. drill hole depth, mm | 45 |
Material sleeve | Steel |
Length, mm | 55 |
Thread size (metric) | 6 |
Drill hole diameter, mm | 12 |
Self boring | Yes |
App. load pull zone, kN | 10.2 |
Fastening provision | L-hook screw |
Material | Pre-galvanized |
Threading | M6 |
Length | 55 mm |
Type | Anchor with bolt |
Analogs
Certificates
Name | Document |
---|---|
