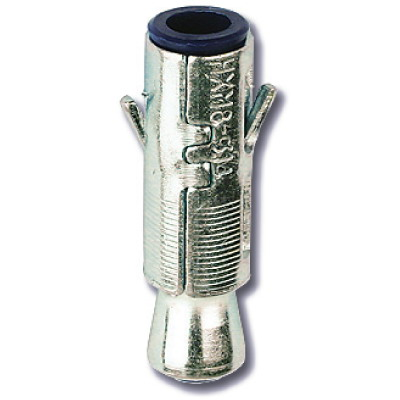

Heavy sleeve metal anchor М10
Code:
CM451065
Heavy sleeve metal anchor М10
Code:
CM451065
Model | Impact |
Surface protection | Galvanic/electrolytic zinc plated |
Min. drill hole depth, mm | 58 |
Material sleeve | Steel |
Length, mm | 65 |
Thread size (metric) | 10 |
Drill hole diameter, mm | 16 |
Self boring | Yes |
App. load pull zone, kN | 11.3 |
Fastening provision | Stud |
Material | Pre-galvanized |
Threading | M10 |
Length | 65 mm |
Type | Anchor |
