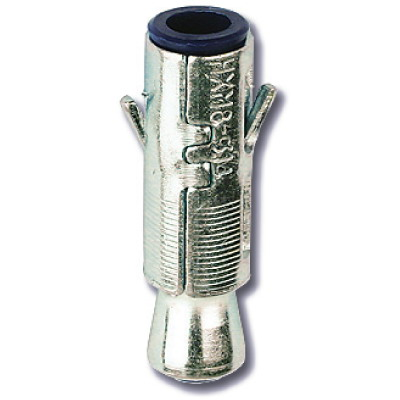

Heavy sleeve metal anchor М8
Code:
CM450850
Heavy sleeve metal anchor М8
Code:
CM450850

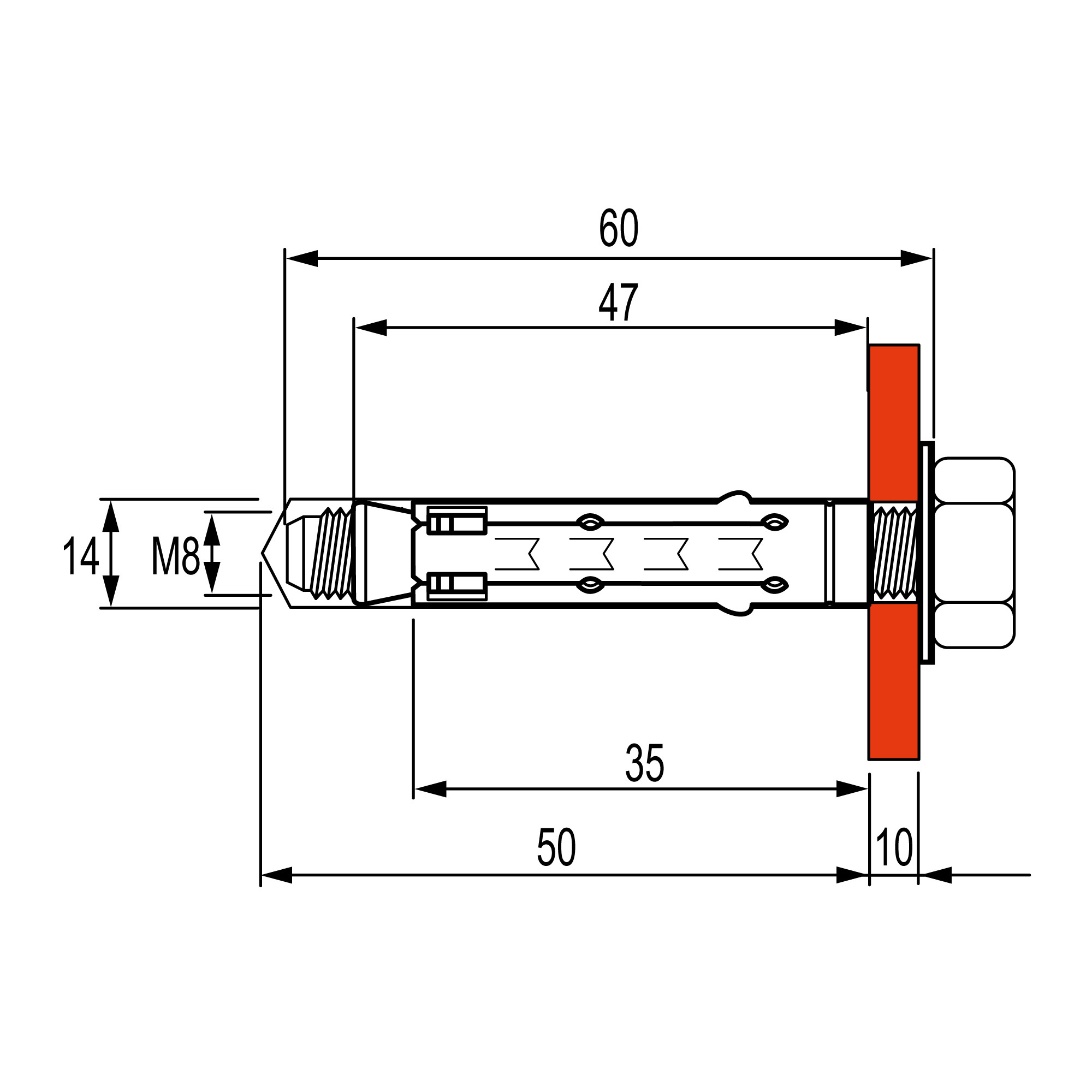

Model | Impact |
Surface protection | Galvanic/electrolytic zinc plated |
Min. drill hole depth, mm | 50 |
Material sleeve | Steel |
Length, mm | 50 |
Thread size (metric) | 8 |
Drill hole diameter, mm | 14 |
Self boring | Yes |
App. load pull zone, kN | 12 |
Fastening provision | Stud |
Material | Pre-galvanized |
Threading | M8 |
Length | 50 mm |
Type | Anchor |
Analogs
Certificates
Name | Document |
---|---|
