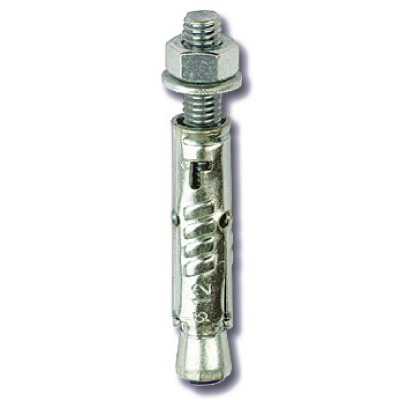

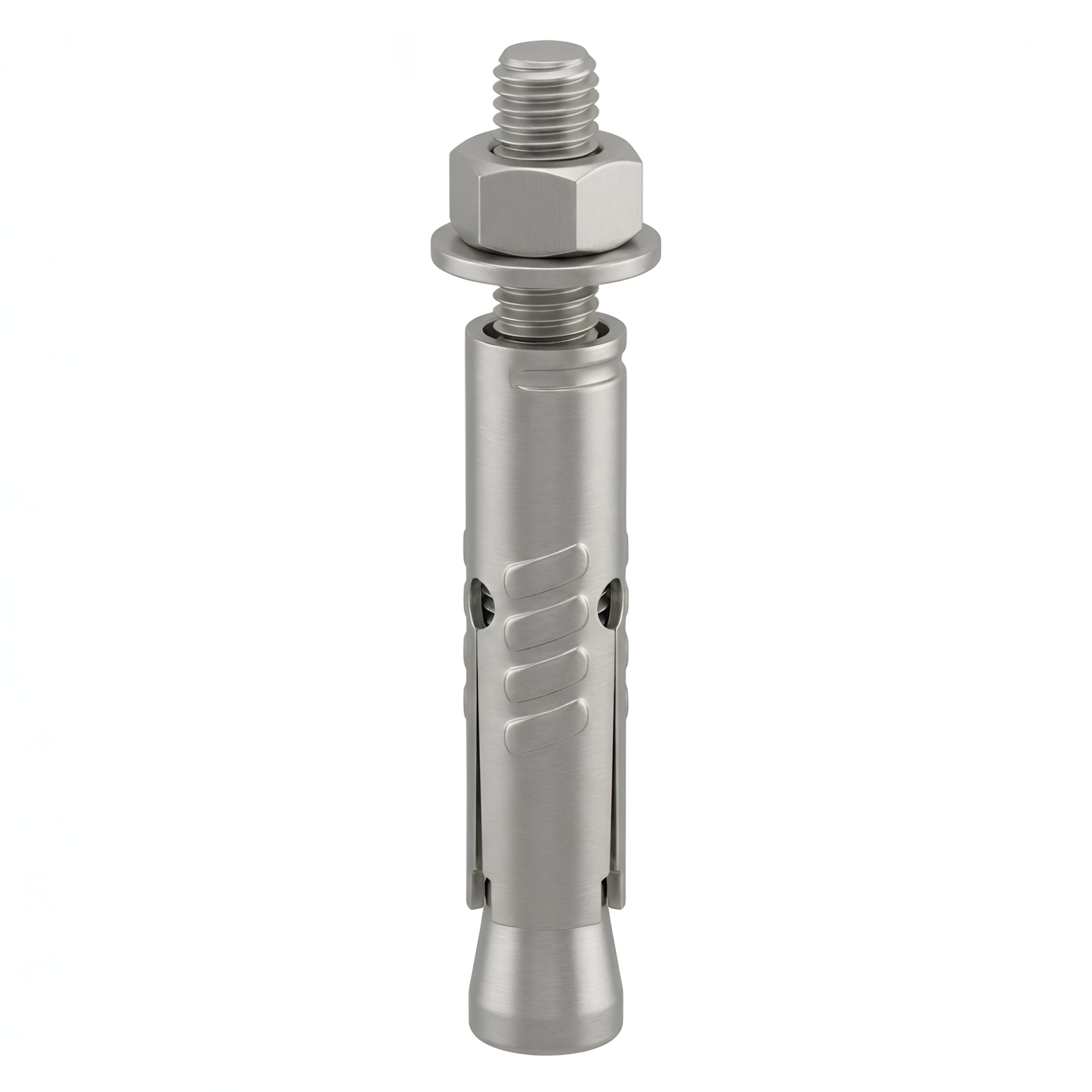

Sleeve metal anchor with stud М10
Code:
CM441060
Sleeve metal anchor with stud М10
Code:
CM441060

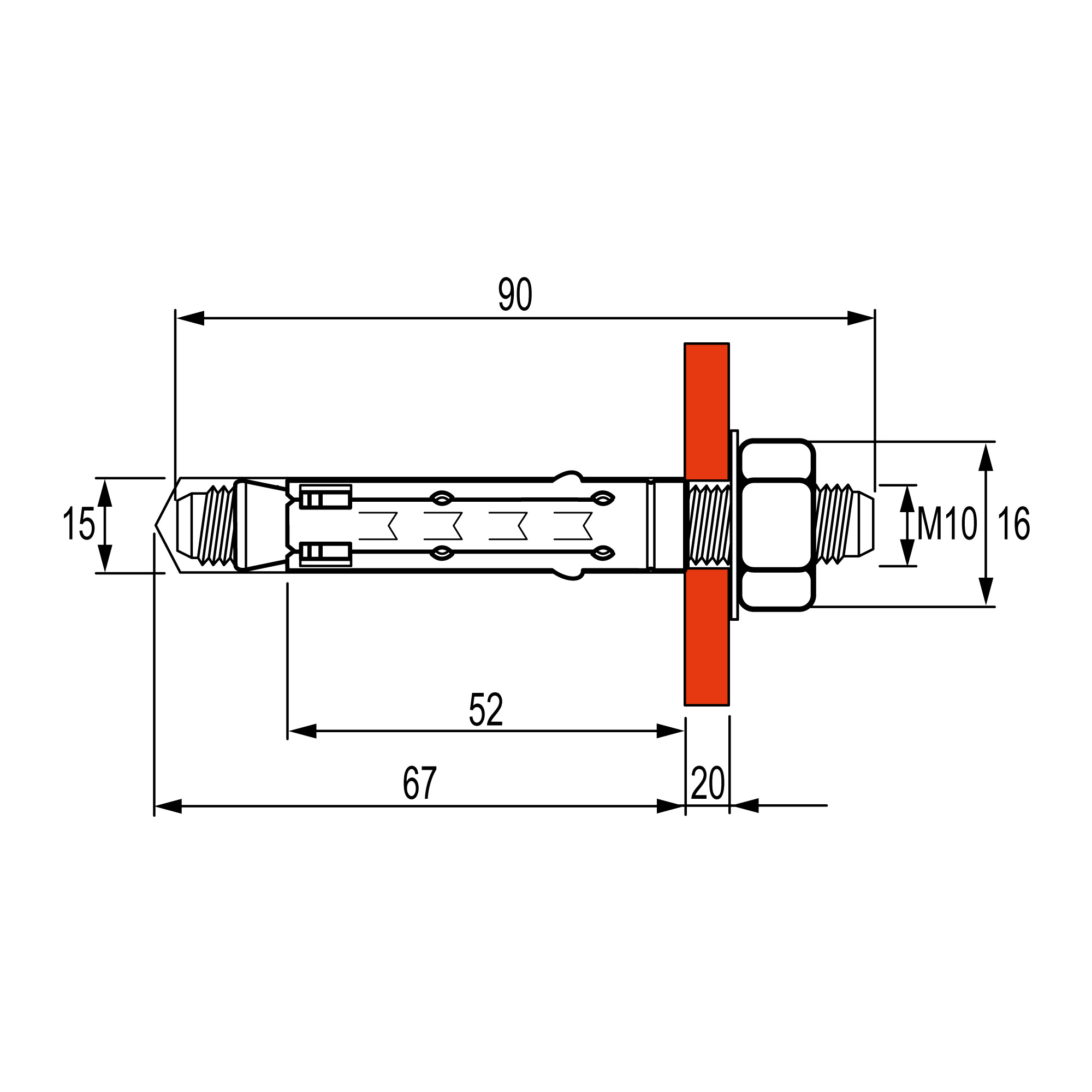

Model | Impact |
Surface protection | Galvanic/electrolytic zinc plated |
Min. drill hole depth, mm | 67 |
Material sleeve | Steel |
Length, mm | 90 |
Thread size (metric) | 10 |
Drill hole diameter, mm | 15 |
Self boring | Yes |
App. load pull zone, kN | 20.6 |
Fastening provision | Nut |
Material | Pre-galvanized |
Threading | M10 |
Length | 90 mm |
Type | Anchor with stud |
Analogs
Certificates
Name | Document |
---|---|
