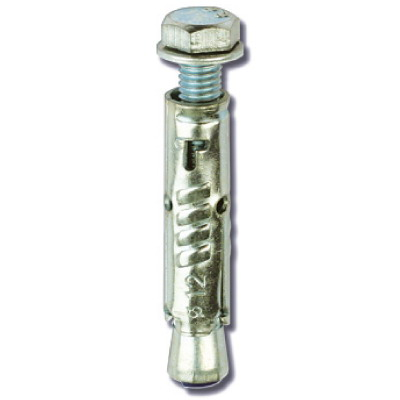

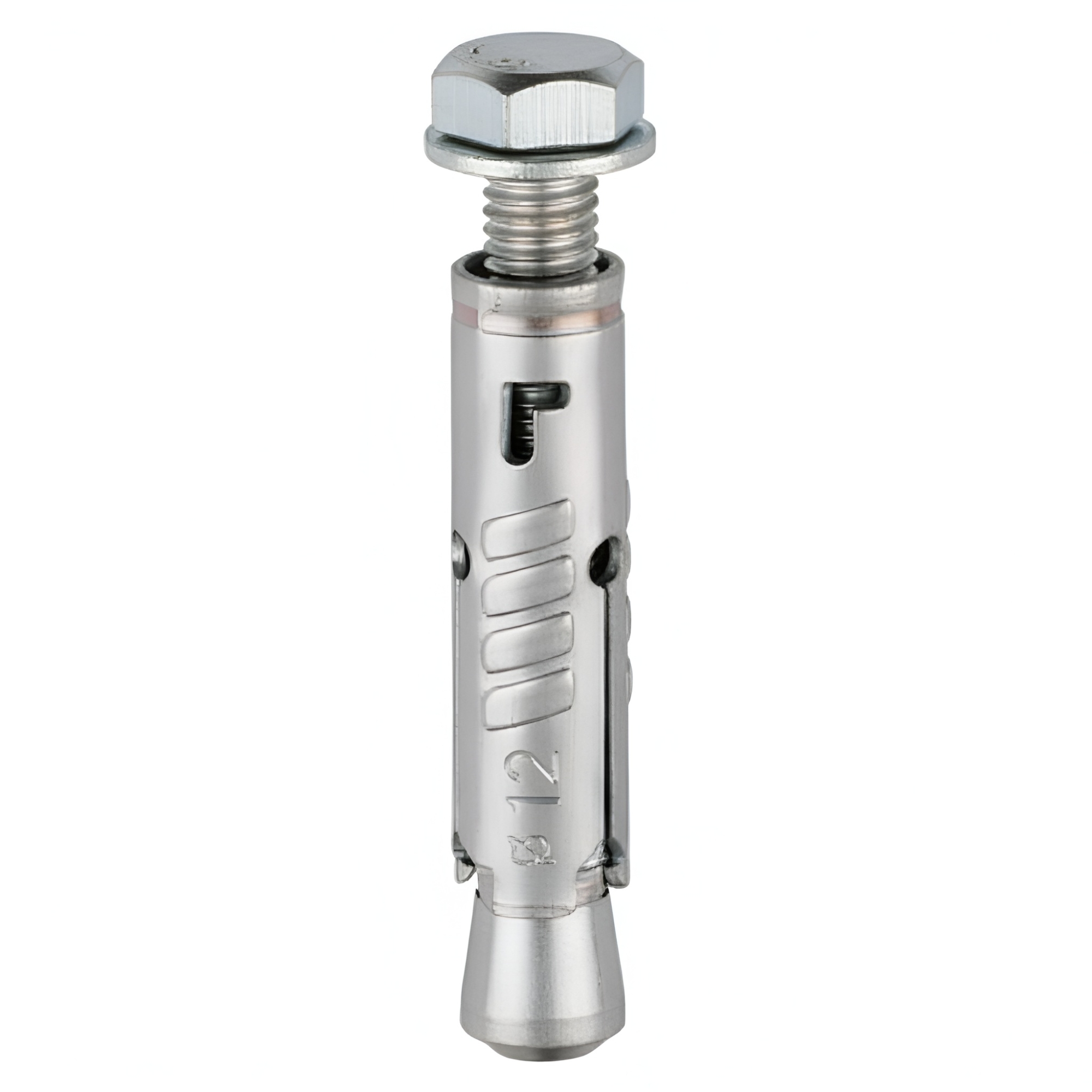

Sleeve metal anchor with bolt М8
Code:
CM430850
Sleeve metal anchor with bolt М8
Code:
CM430850

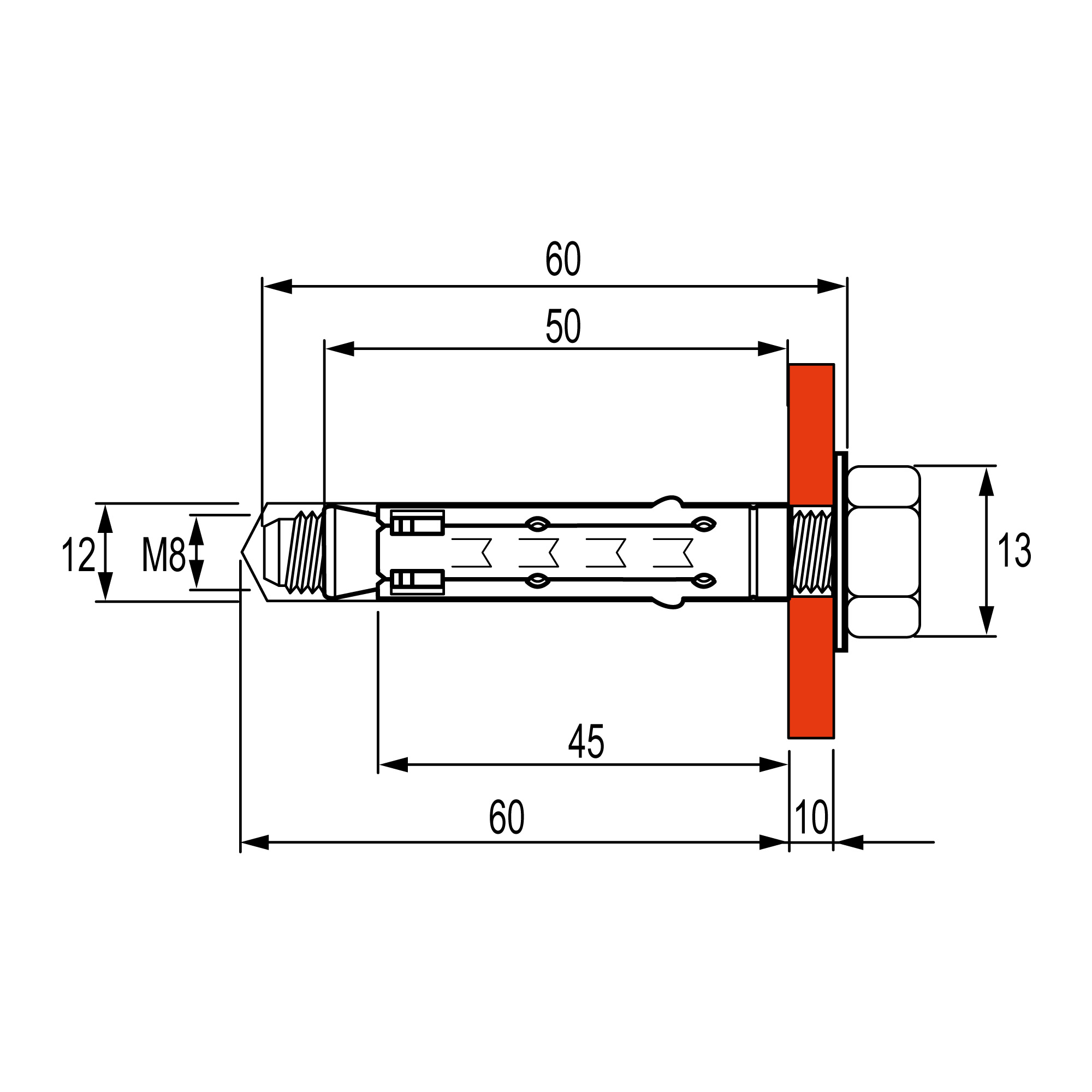

| Model | Impact |
| Surface protection | Galvanic/electrolytic zinc plated |
| Min. drill hole depth, mm | 60 |
| Material sleeve | Steel |
| Length, mm | 60 |
| Thread size (metric) | 8 |
| Drill hole diameter, mm | 12 |
| Self boring | Yes |
| App. load pull zone, kN | 16.6 |
| Fastening provision | L-hook screw |
| Material | Pre-galvanized |
| Threading | M8 |
| Length | 60 mm |
| Type | Anchor with bolt |
Analogs
Certificates
| Name | Document |
|---|---|
