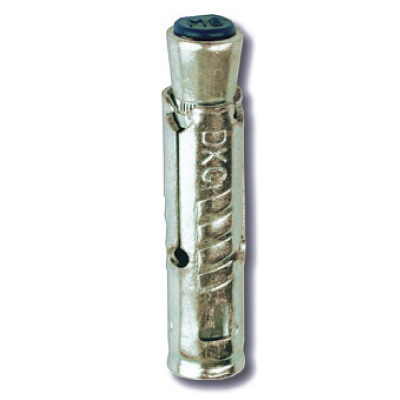

Sleeve metal anchor М12
Code:
CM421274
Sleeve metal anchor М12
Code:
CM421274
Model | Impact |
Surface protection | Galvanic/electrolytic zinc plated |
Min. drill hole depth, mm | 80 |
Material sleeve | Steel |
Length, mm | 74 |
Thread size (metric) | 12 |
Drill hole diameter, mm | 18 |
Self boring | Yes |
App. load pull zone, kN | 26 |
Fastening provision | Stud |
Material | Pre-galvanized |
Threading | M12 |
Length | 74 mm |
Type | Anchor |
