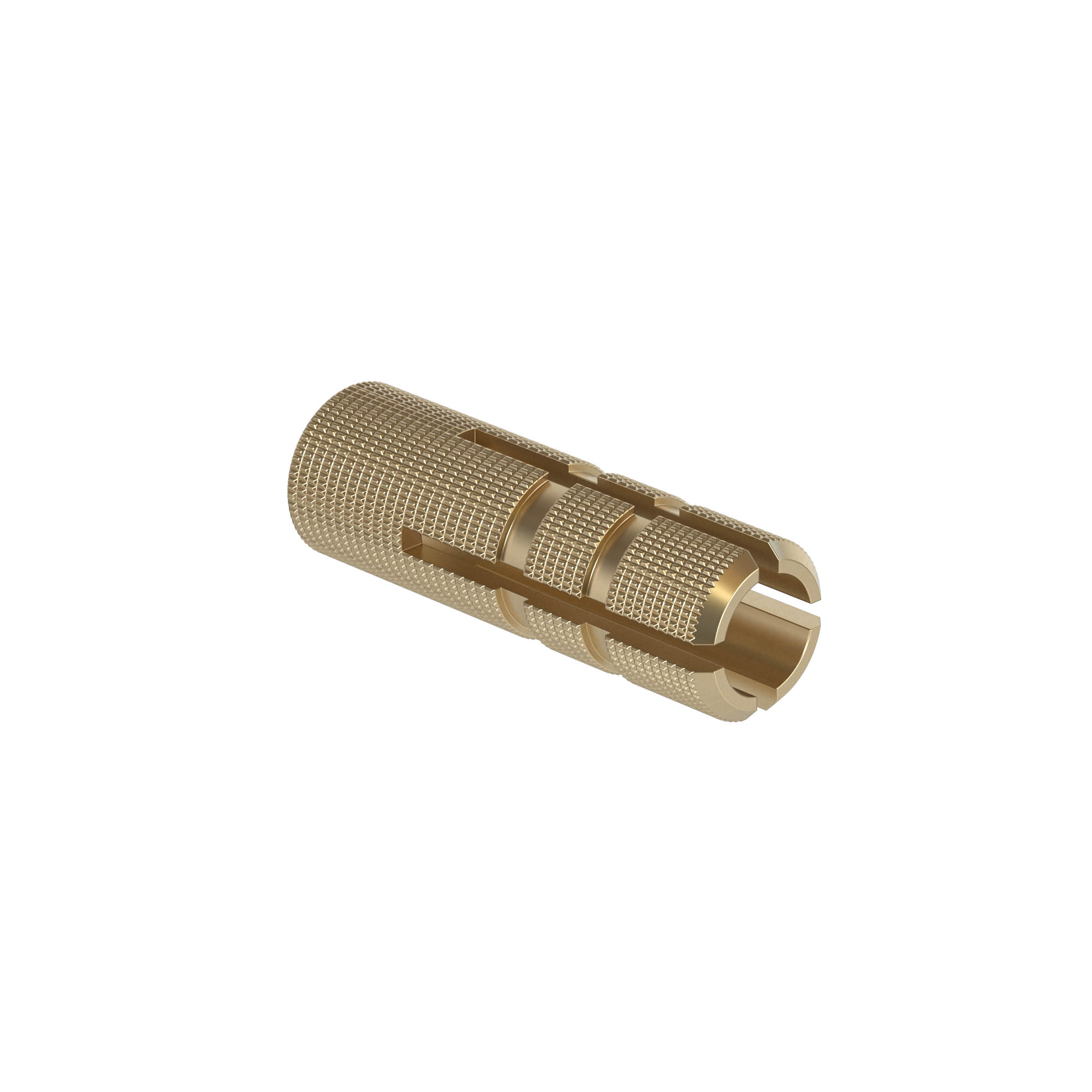

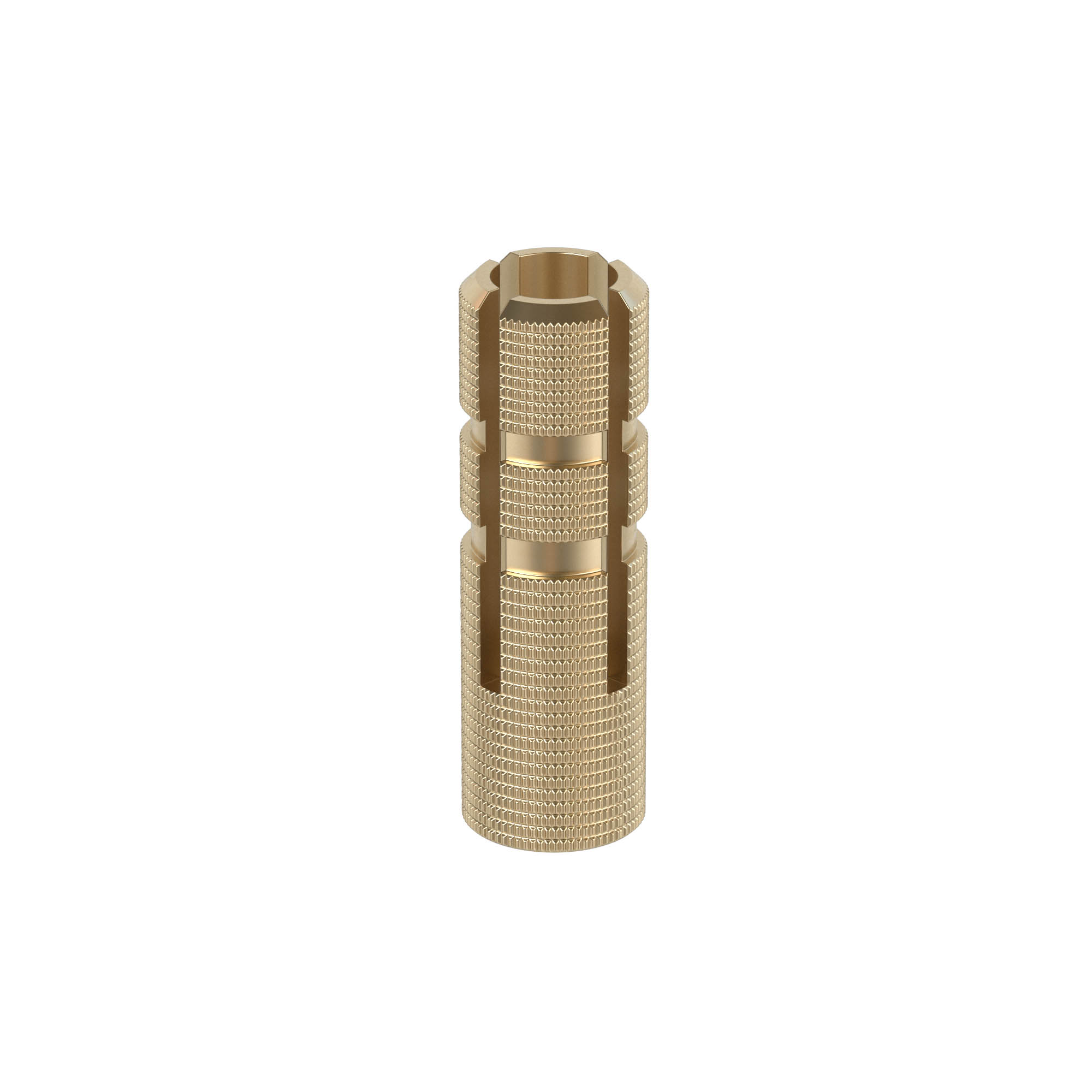

Brass metal anchor М4
Code: CM410416
Brass metal anchor М4
Code: CM410416
| Model | Impact |
| Surface protection | Galvanic/electrolytic zinc plated |
| Min. drill hole depth, mm | 20 |
| Material sleeve | Brass |
| Length, mm | 16 |
| Thread size (metric) | 4 |
| Drill hole diameter, mm | 5 |
| Self boring | Yes |
| App. load pull zone, kN | 2 |
| With approval | Yes |
| Fastening provision | Stud |
| Material | Pre-galvanized steel |
| Threading | M4 |
| Length | 16 mm |
| Type | Brass anchor |
Analogs
Certificates
| Name | Document |
|---|---|
