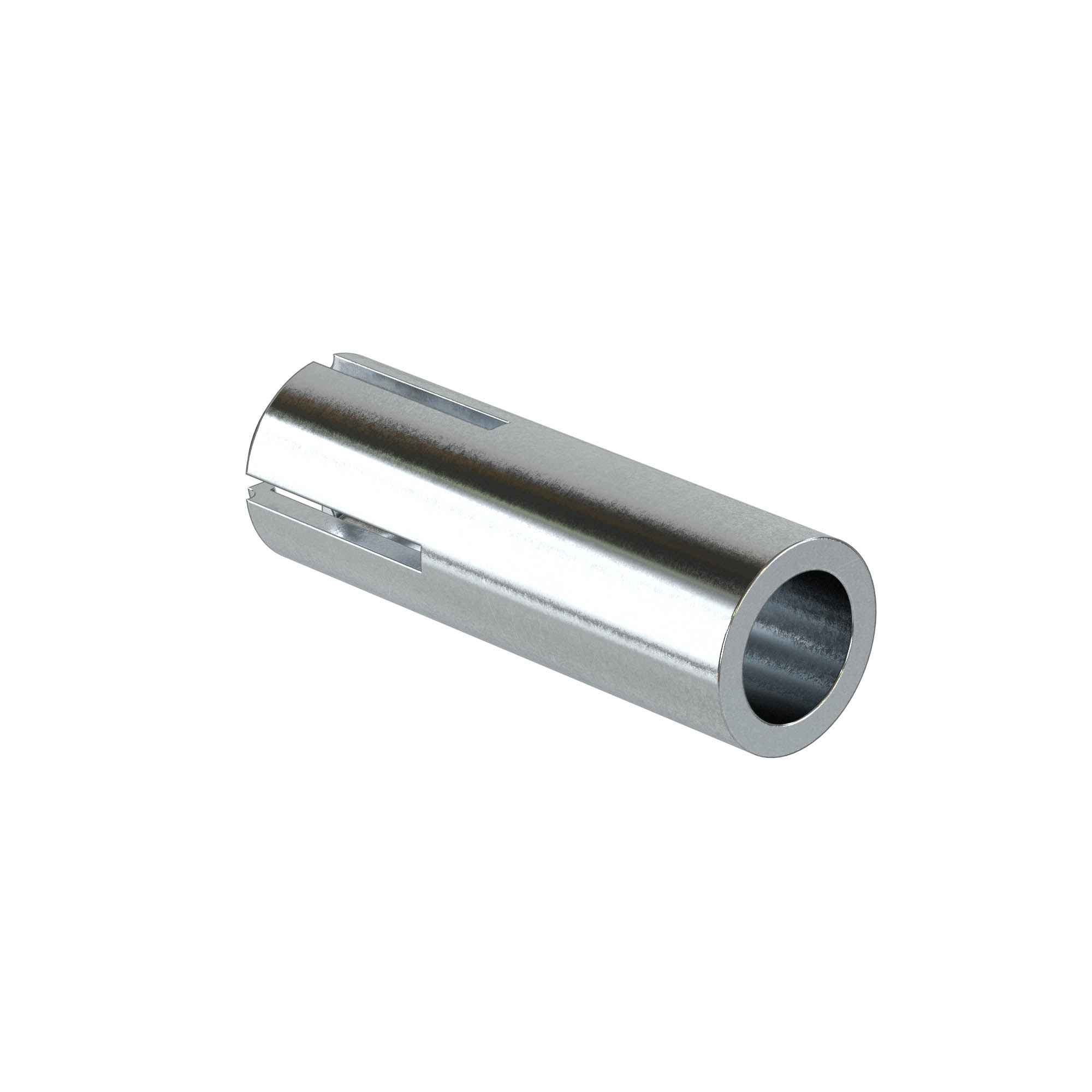

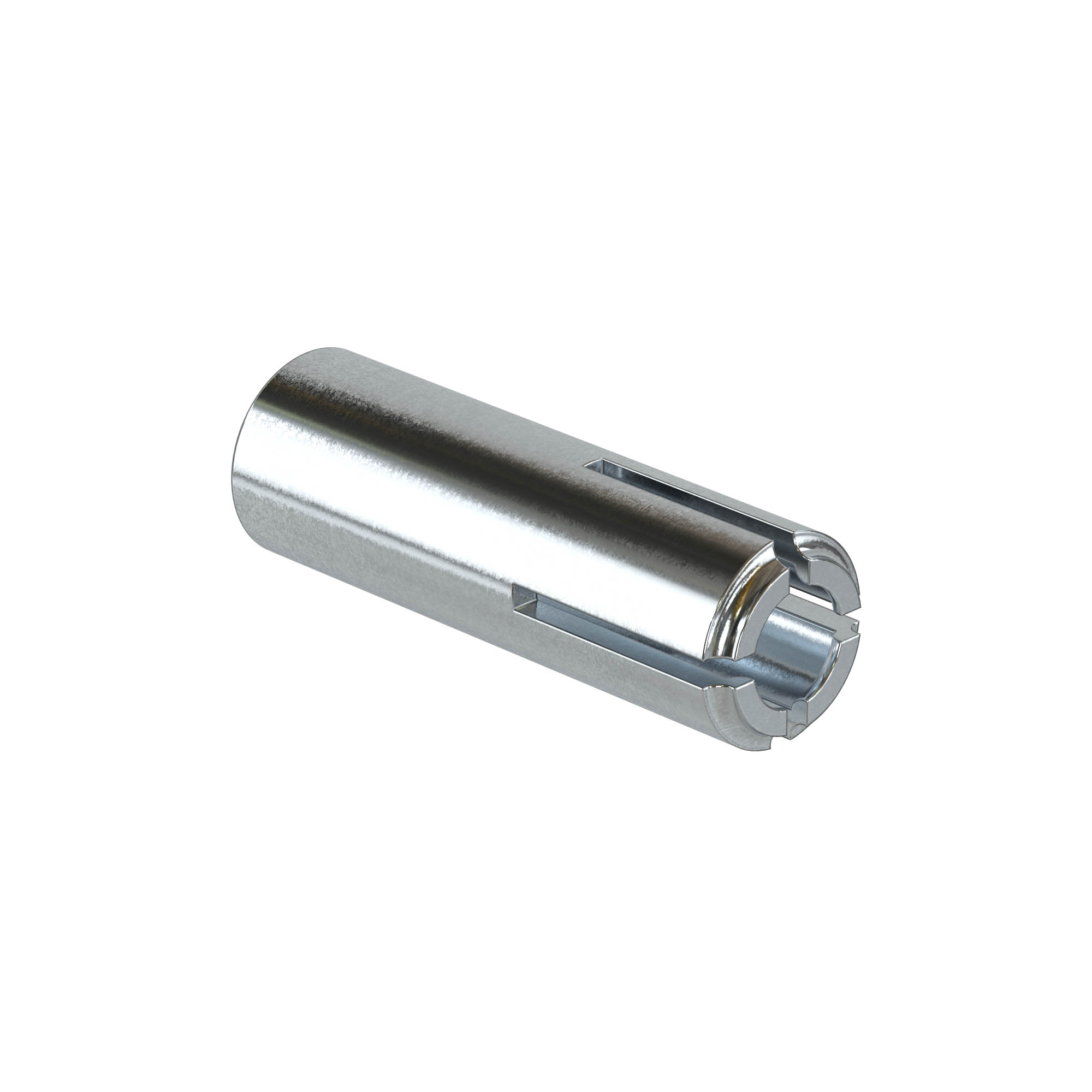

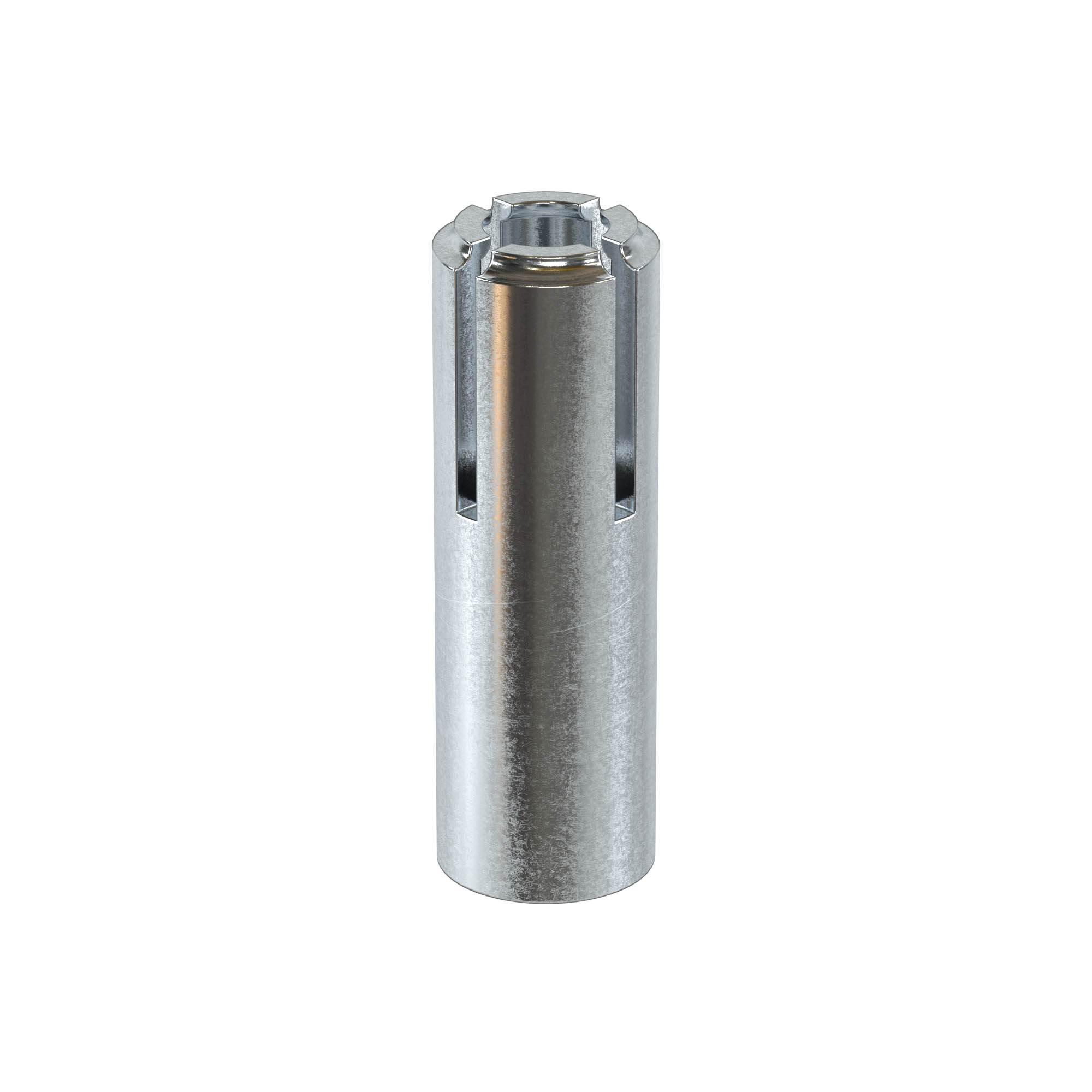

Drop in metal anchor М10

Code: CM401040
Drop in metal anchor М10
  • To ask a question
Model Impact
Surface protection Galvanic/electrolytic zinc plated
Min. drill hole depth, mm 42
Material sleeve Steel
Length, mm 40
Thread size (metric) 10
Drill hole diameter, mm 12
Self boring No
App. load pull zone, kN 1080
With approval No
Fastening provision Other
Material Pre-galvanized steel
Threading M10
Length 40 mm
Type Scoring anchor
