| Rated current In, A | 105 |
| Rated voltage, V | 1000 |
| Colour | Grey |
| Length, mm | 110.4 |
| Width/grid dimension, mm | 16 |
| Height at lowest possible mounting height, mm | 48.8 |
| Material insulation body | Thermoplastic |
| Operating temperature, °C | -40...105 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section solid-core, mm² | 0.2...50 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.2...35 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...35 |
| Connectable conductor cross section multi-wired, mm² | 0.2...35 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 11 |
| Internally connected stages | No |
| Number of poles | 11 |
| Closing plate required | No |
| With shock protection | Yes |
| Connection position | Above |
| Explosion-tested version 'Ex e' | No |
| Core cross section, mm² | 35 |

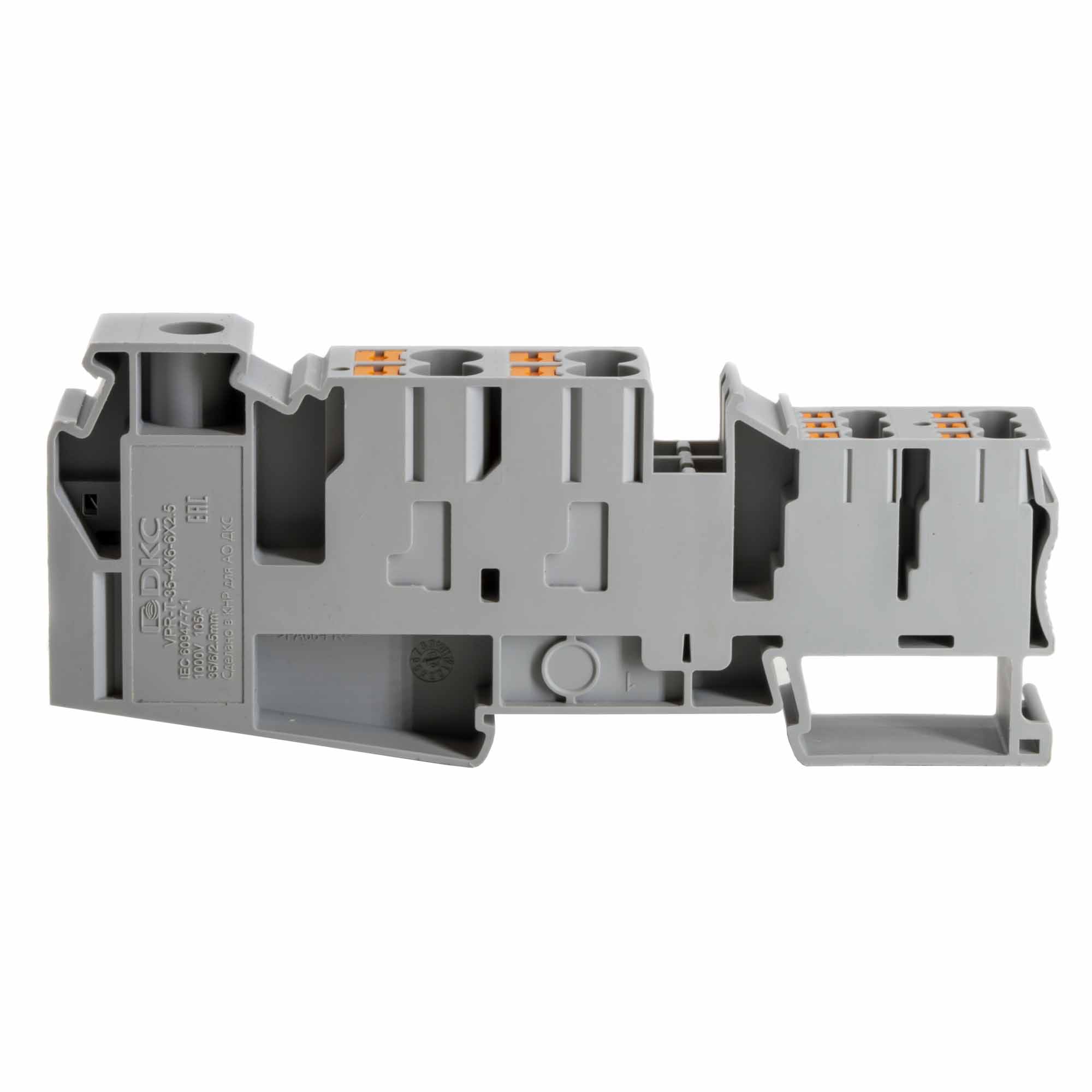

| Product type | Terminal block |
| Function | Distribution |
| Clamp type | Screw / Push-in |
| Width | 16.3 mm |
| Number of levels | 1 |
| Number of connection points | 11 |
| Rated cross-section | 35 mm2 |
| Max. cross-section | 50 mm2 |
| Max. cross-section push-in | 10 mm2 |
| Stripping length | 25 mm |
| Stripping length push-in | 10-12 mm |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Max.current | 105 A |
| Screw size | M6 |
| Tightening torque | 3,2−3,7 N∙m |
| Blade size | 1,0 × 6,5 |
| Material of case | PA |
