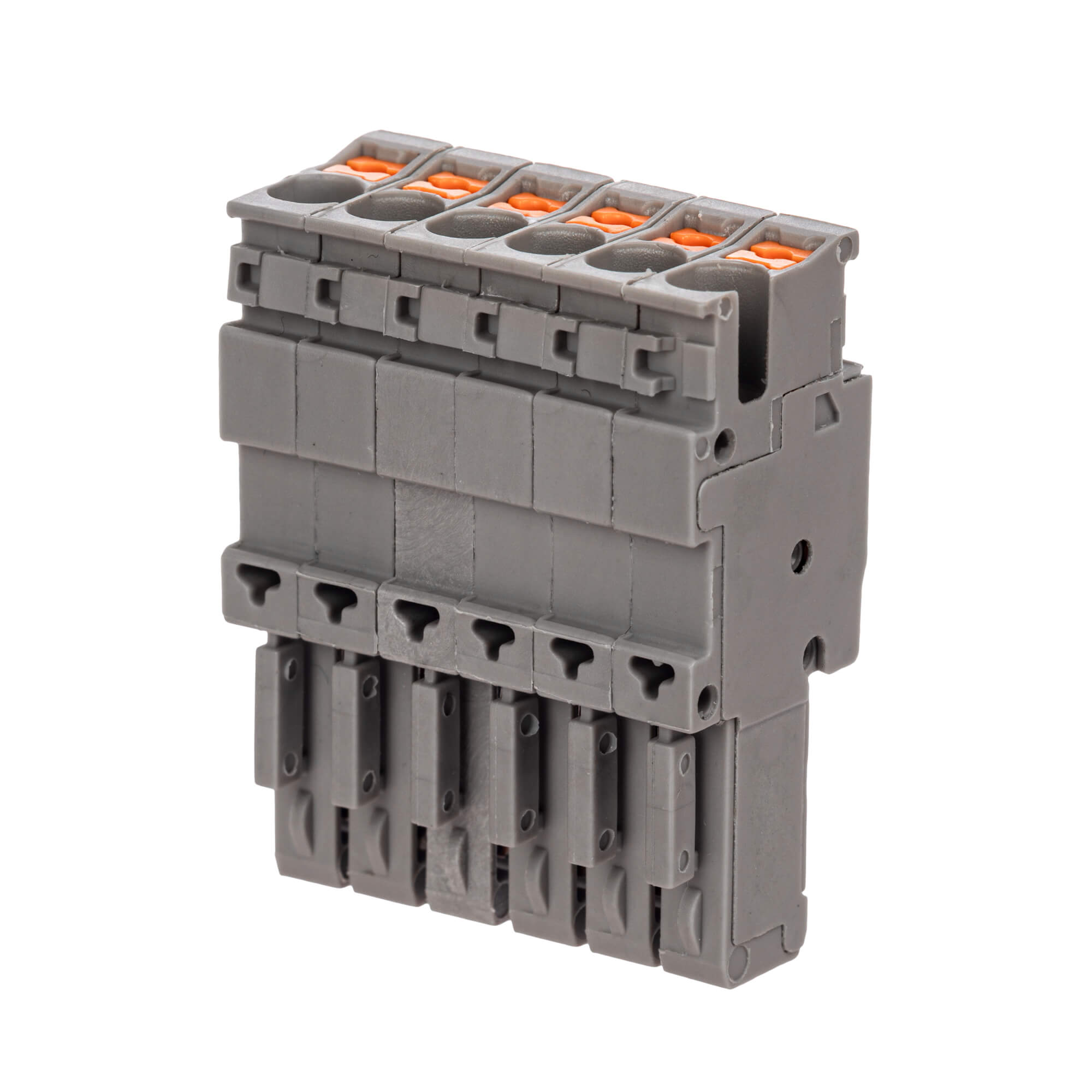

Plug connector, 6 connection points, 2.5qmm, gray

Code: VPR-P-2.5-6
Plug connector, 6 connection points, 2.5qmm, gray
Plug connector, 6 connection points, 2.5qmm, gray
Code: VPR-P-2.5-6
  • To ask a question
  • Characteristics
  • Accessories
  • Drawings
  • Promo
  • Viewed items
Model Pin insert
Rated voltage, V 500
Number of poles 6
Width/grid dimension, mm 31.2
Type of electric connection Spring clamp connection
Tackable No
Total number of poles (without ground contact) 6
Connectable conductor cross section solid-core, mm² 0.14...4
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.14...2.5
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.14...2.5
Connectable conductor cross section multi-wired, mm² 0.14...2.5
Connectable conductor cross section, mm² 0.14...2.5
Rated current In, A 24
