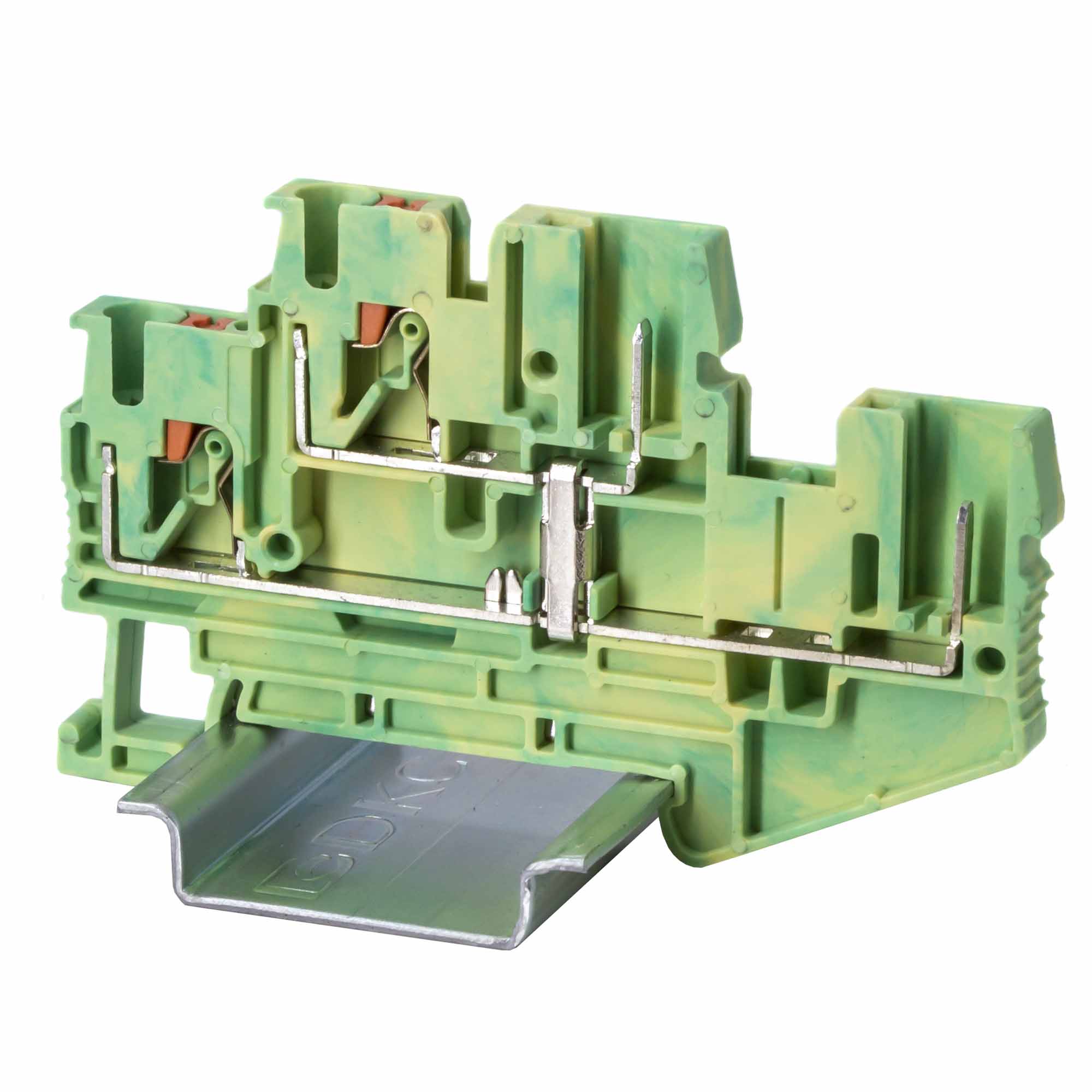

| Colour | Green/yellow |
| Length, mm | 74.1 |
| Width/grid dimension, mm | 5.2 |
| Height at lowest possible mounting height, mm | 47.6 |
| Material insulation body | Thermoplastic |
| Operating temperature, °C | -40...105 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| PEN function possible | Yes |
| Connectable conductor cross section solid-core, mm² | 0.14 ...4 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.14 ...2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.14 ...2.5 |
| Connectable conductor cross section multi-wired, mm² | 0.14 ...2.5 |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Plug-in connection |
| Number of levels | 2 |
| Number of clamp positions per level | 2 |
| Connection position | Above |
| Closing plate required | Yes |
