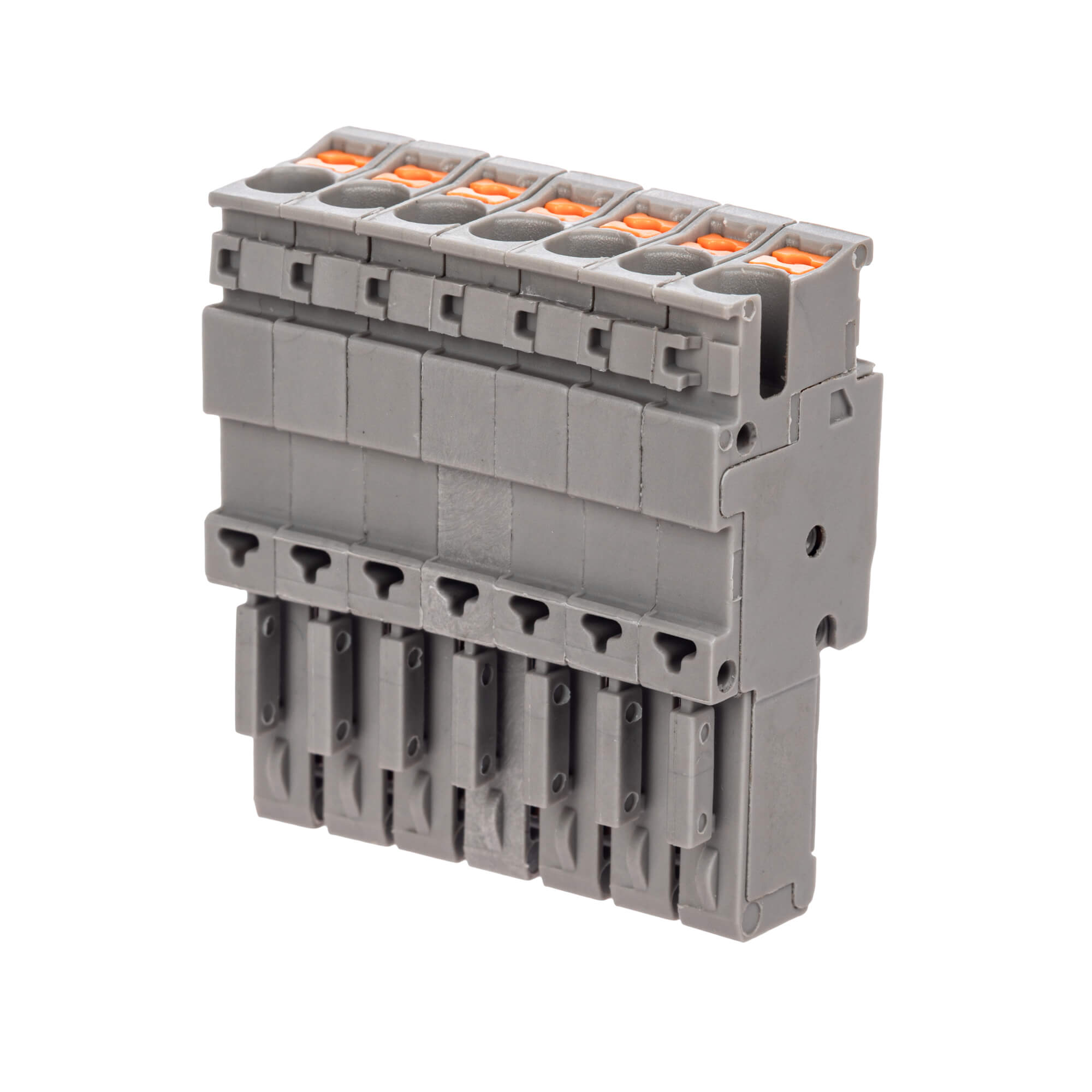

| Model | Pin insert |
| Rated voltage, V | 500 |
| Number of poles | 7 |
| Width/grid dimension, mm | 36.4 |
| Type of electric connection | Spring clamp connection |
| Tackable | No |
| Total number of poles (without ground contact) | 7 |
| Connectable conductor cross section solid-core, mm² | 0.14...4 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.14...2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.14...2.5 |
| Connectable conductor cross section multi-wired, mm² | 0.14...2.5 |
| Connectable conductor cross section, mm² | 0.14...2.5 |
| Rated current In, A | 24 |
