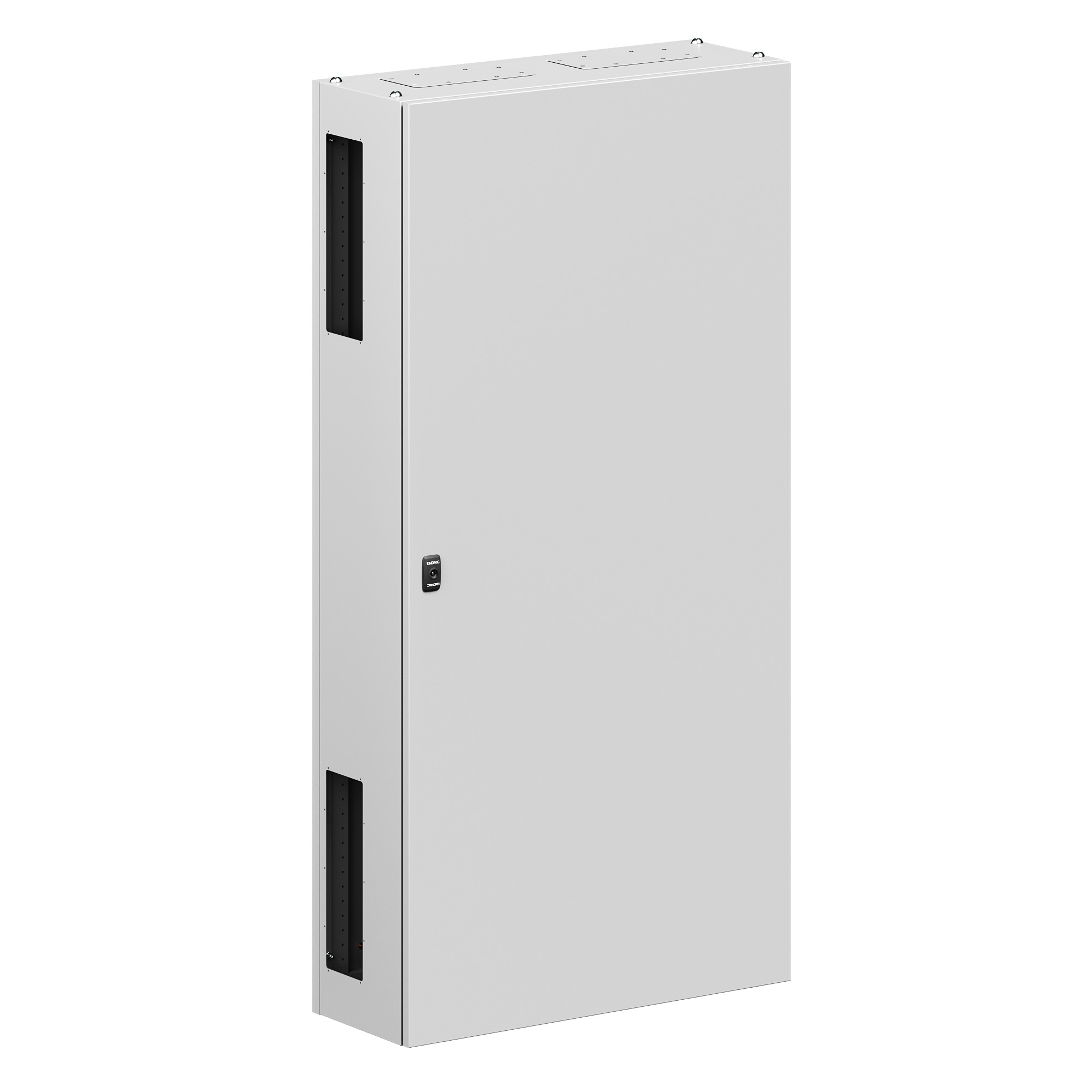

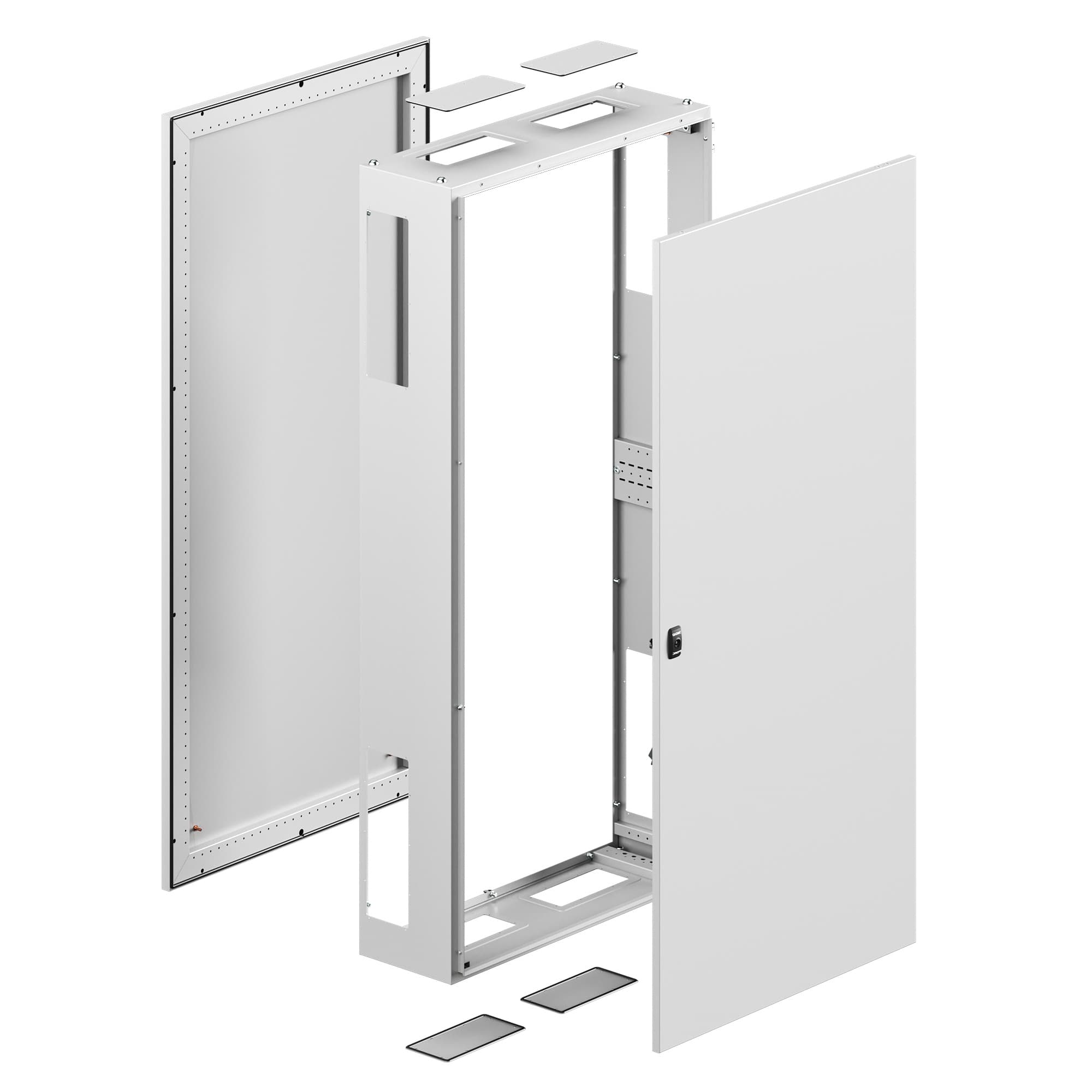

Floor-standing RAM fit case with side cutouts, HxWxD 2000x800x250 mm
Code:
R6NFW208025F
Code:
R6NFW208025F
| Colour | Grey |
| Width, mm | 800 |
| Height, mm | 2000 |
| Depth, mm | 250 |
| With mounting plate | No |
| Number of doors | 1 |
| Number of locks | 1 |
| With glazed door | No |
| Material | Steel |
| Impact strength | IK10 |
| Degree of protection (IP) | IP55 |
| Suitable for outdoor set-up | Yes |
| Tackable | Yes |
| Wall fastening possible | Yes |
| Surface finishing | Powder coating |
| With backside door | No |
| Wall build in | No |
| Floor installation possible | Yes |
| Pole fastening | No |
| RAL-number | 7035 |
| Suitable for metrical mounting | Yes |
| Enclosure type | Floor |
| Product type | Compact floor standing cabinet |
| Height | 2000 mm |
| Width | 800 mm |
| Depth | 250 mm |
| Enclosure design | With side cutouts |
| Door design | Plain single door |
| Static load on the door | 50 kg |
| Static load on the cabinet | 400 Kg |
| Cabinet thickness | 1,2 mm |
| Flange thickness | 2,0 mm |
| Door thickness | 1,5 mm |
| Rear panel thickness | 1,5 mm |
| Climate version | UHL1, OM2, OM3 |
