Code: CTWW-25-0.5-5

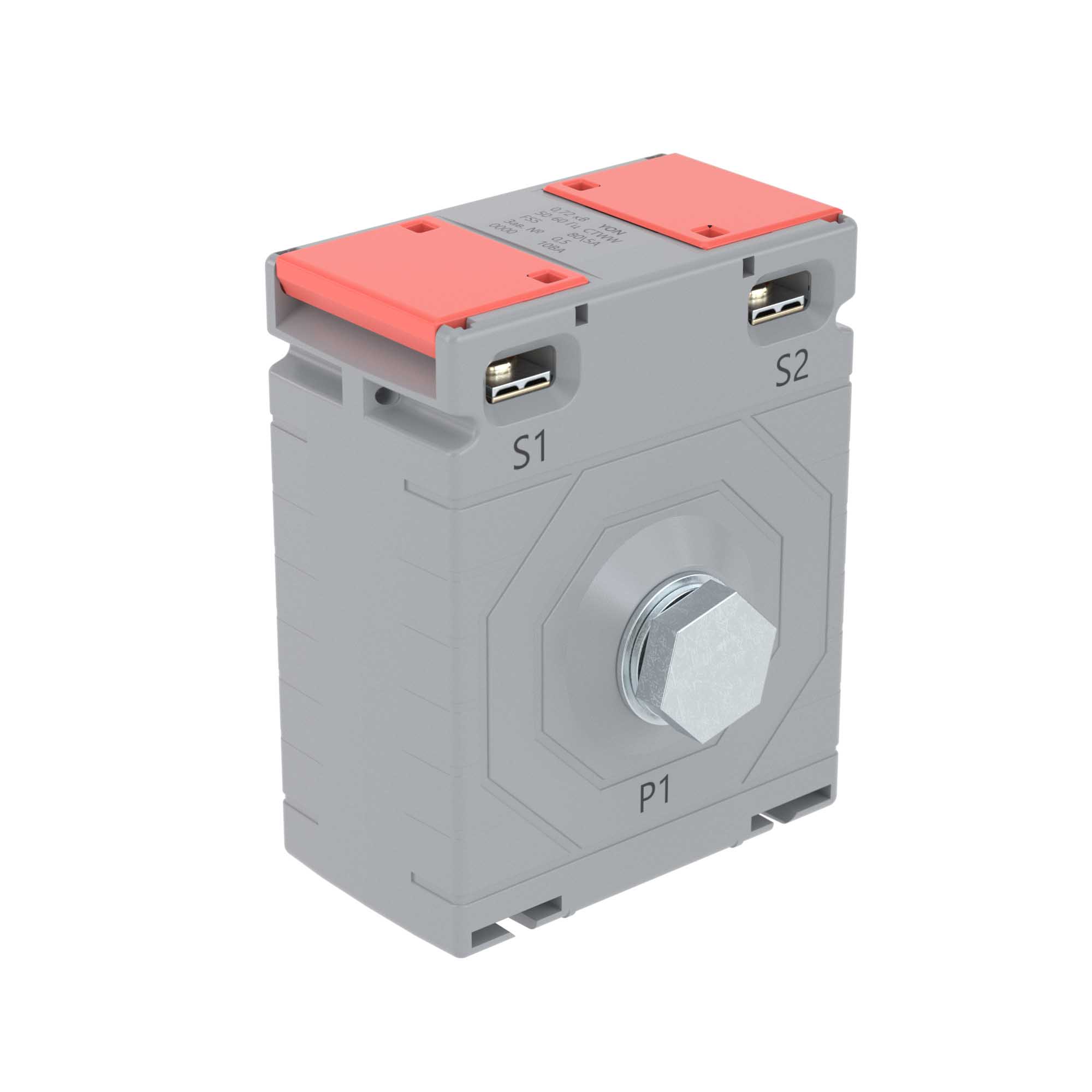

current transformer CTWW 25/5A, accuracy class - 0.25, power - 5VA
current transformer CTWW 25/5A, accuracy class - 0.25, power - 5VA
Code: CTWW-25-0.5-5
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Attachable current transformer
Accuracy class 0.5
Number of primary inputs 1
With copper rail Yes
Primary rated current, A 25
Snap mounting No
Secondary connection Screw connection
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CTWW-25-0.5-5
Series YON CT
Primary winding current 25A
Secondary winding current 0.20833333333333
Accuracy class 0.5
