Code: CTWW-15-0.5S-5

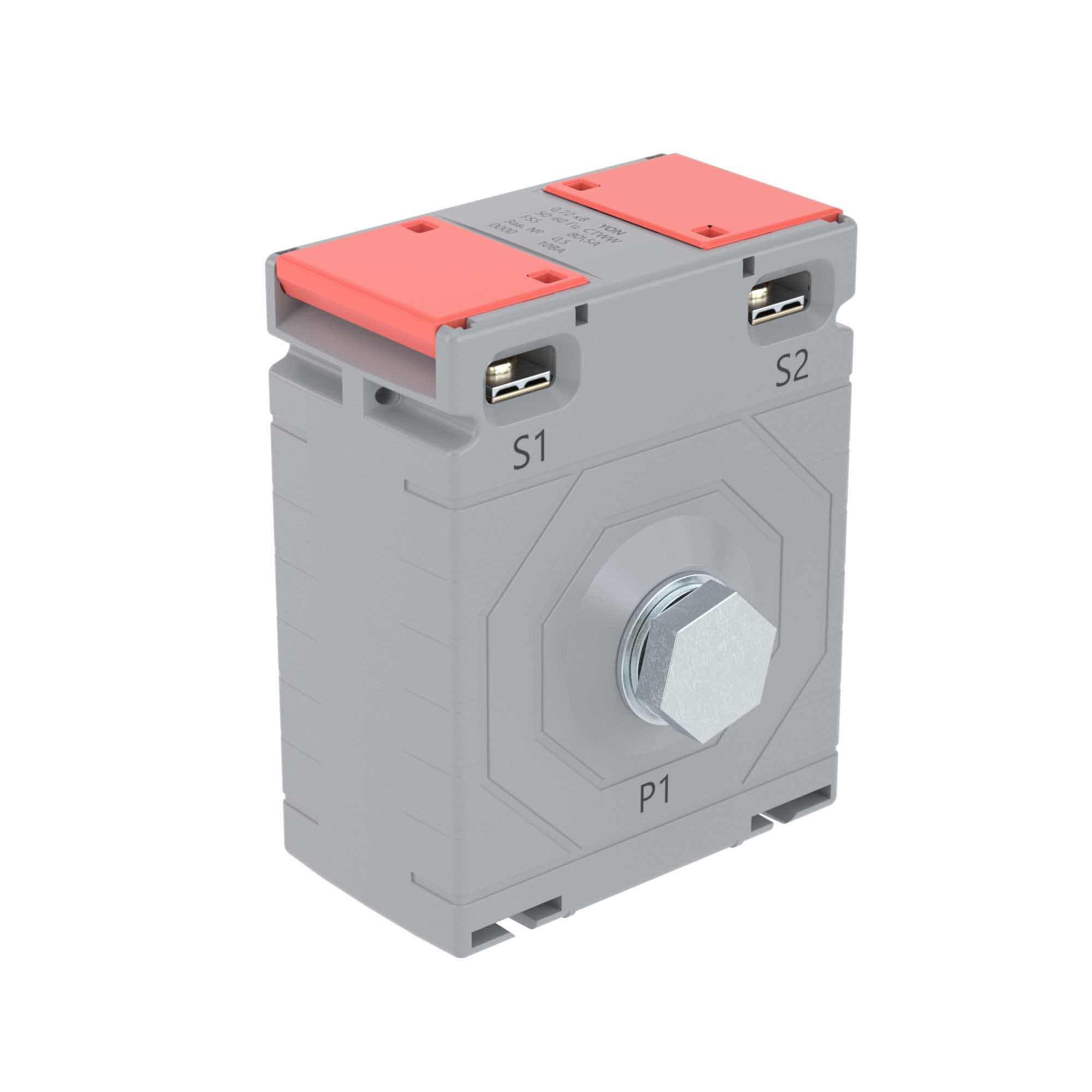

current transformer CTWW 15/5A, accuracy class - 0.15, power - 5VA
current transformer CTWW 15/5A, accuracy class - 0.15, power - 5VA
Code: CTWW-15-0.5S-5
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Attachable current transformer
Accuracy class 0.5
Opening diameter, mm 14
Number of primary inputs 1
With copper rail Yes
Primary rated current, A 15
Snap mounting No
Secondary connection Cable
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CTWW-15-0.5S-5
Series YON CT
Primary winding current 15 A
Secondary winding current 0.20833333333333
Accuracy class 0.5S
