| Mounting method | Surface mounted (plaster) |
| Built-in depth, mm | 300 |
| Extension possible | Yes |
| Material housing | Steel |
| Cover model | None |
| Width, mm | 450 |
| Height, mm | 1000 |
| Depth, mm | 300 |
| RAL-number | 7035 |
| With mounting plate | No |
| Degree of protection (IP) | IP55 |
| Enclosure type | Floor |

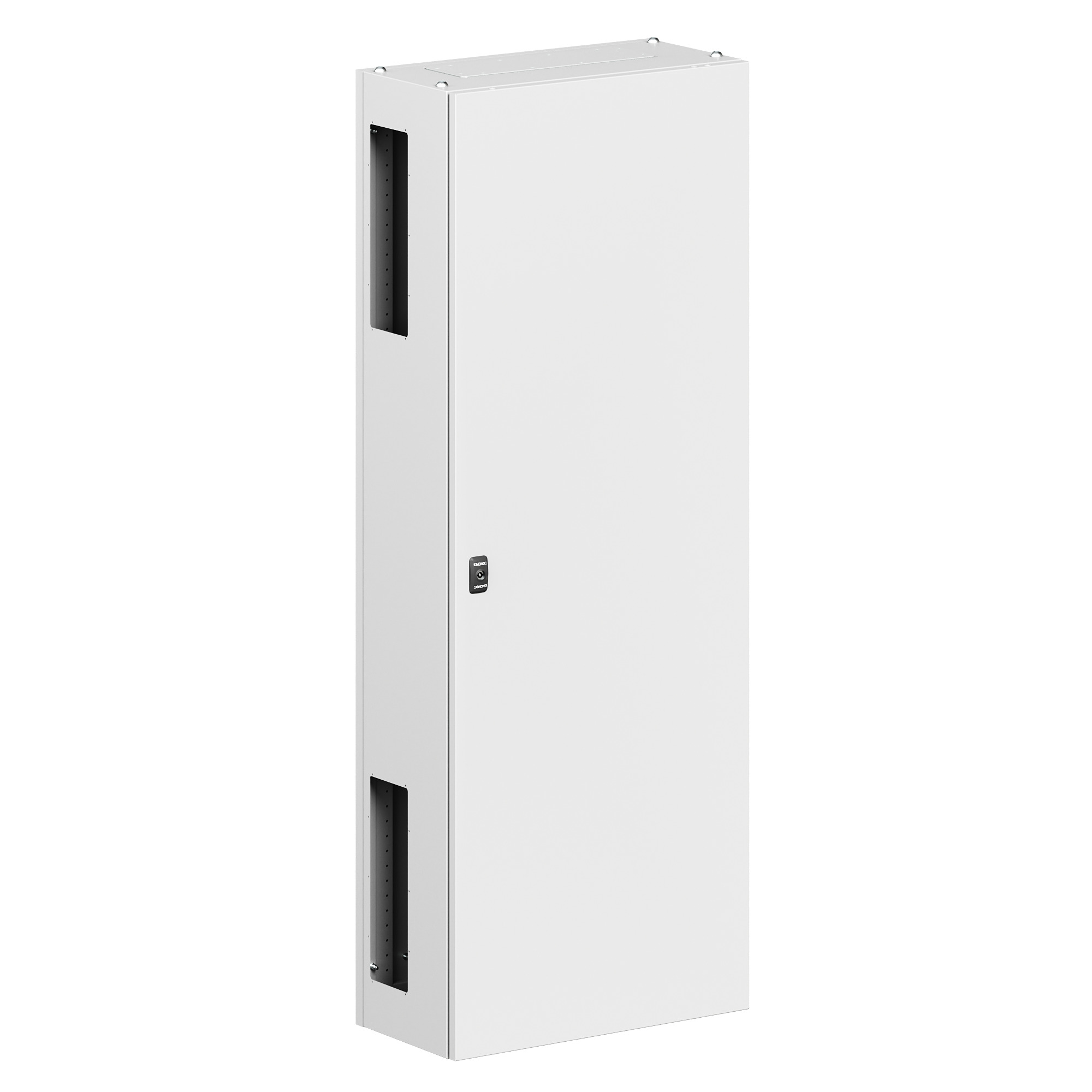

| Product type | Compact floor standing cabinet |
| Height | 1000 mm |
| Width | 450 mm |
| Depth | 300 mm |
| Enclosure design | With side cutouts |
| Door design | Plain single door |
| Static load on the door | 50 kg |
| Static load on the cabinet | 400 Kg |
| Cabinet thickness | 1,2 mm |
| Flange thickness | 2,0 mm |
| Door thickness | 1,5 mm |
| Rear panel thickness | 1,5 mm |
| Climate version | UHL1, OM2, OM3 |
