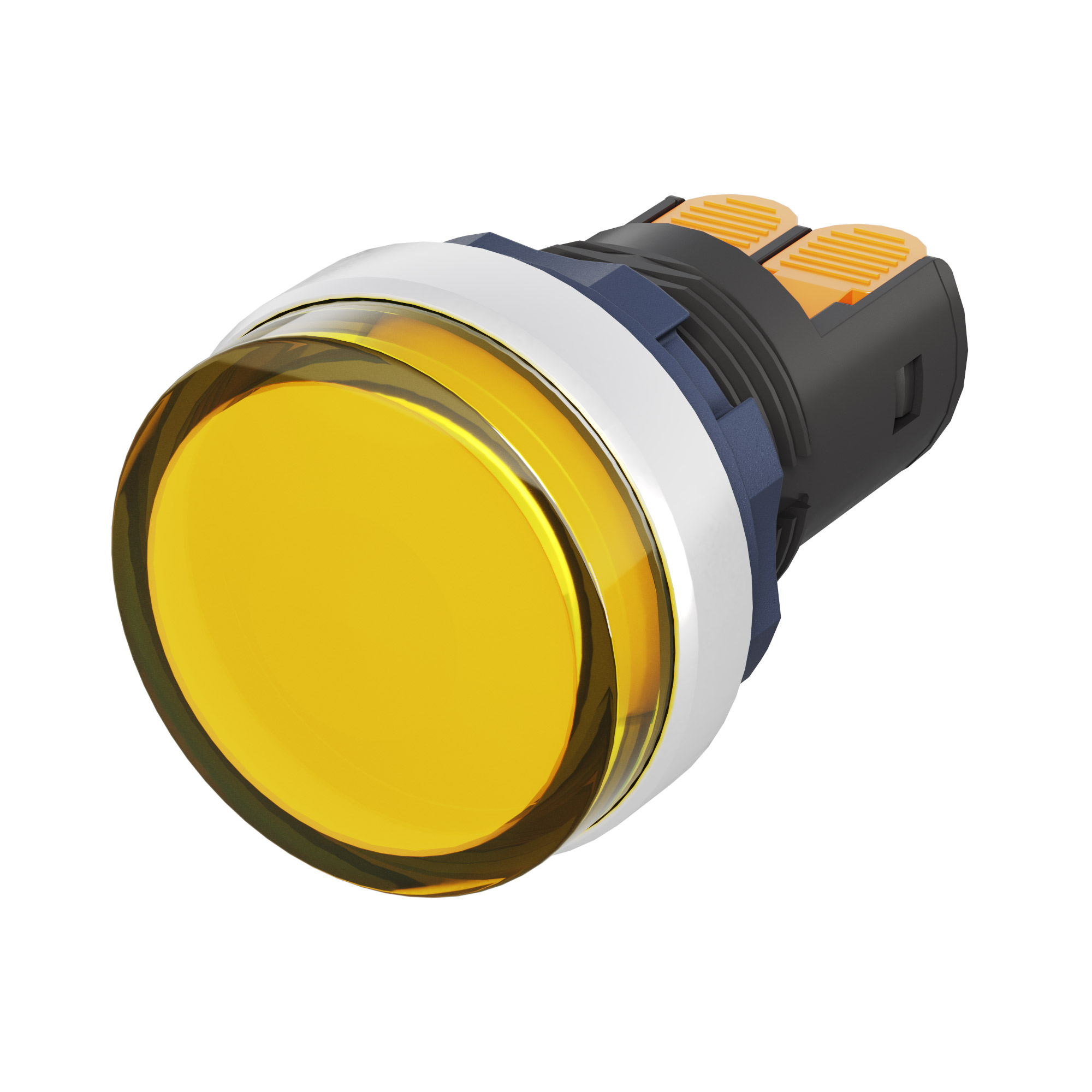

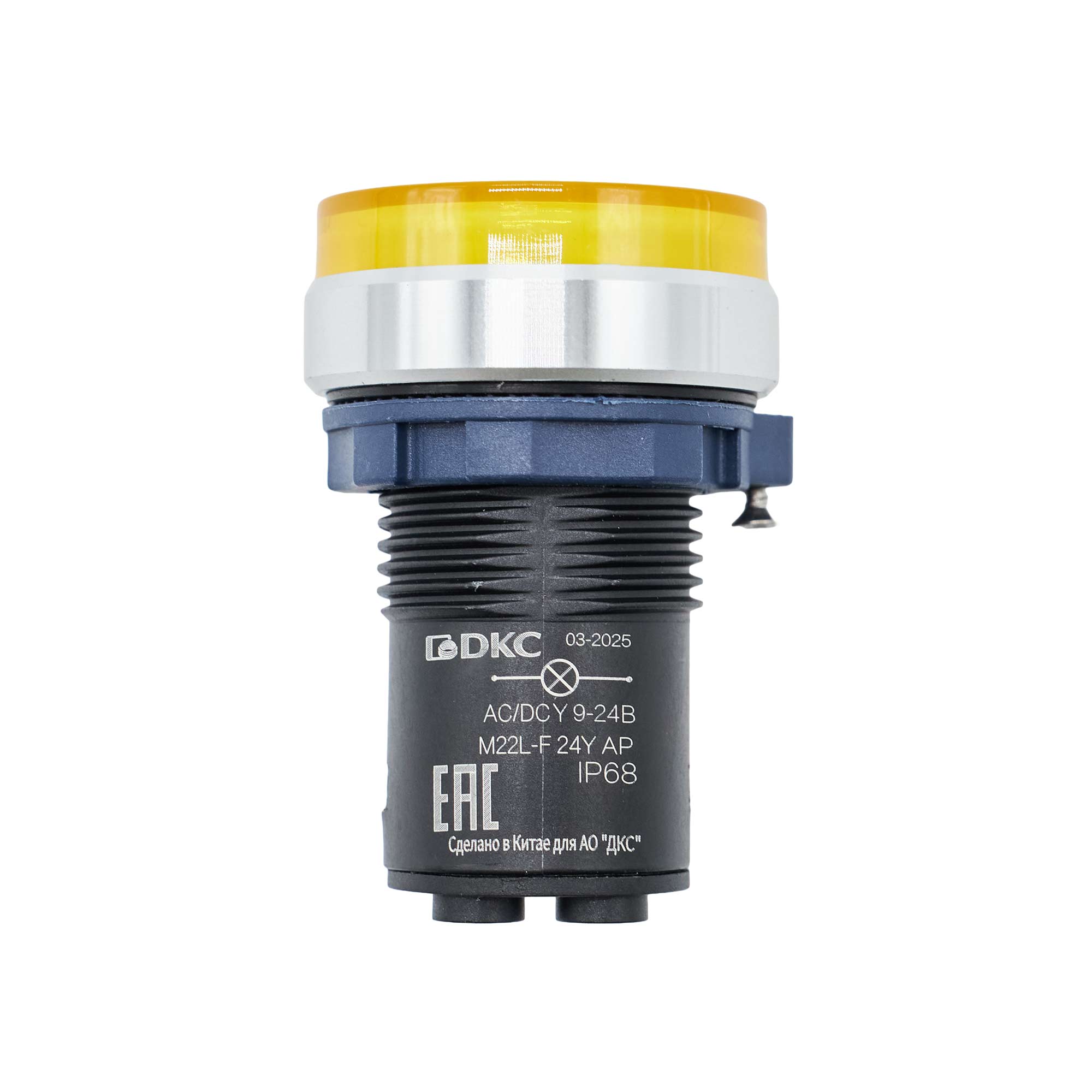

Warning light with built-in 9-24V diode, yellow, Aluminum ring, Plug-In clip
Code:
M22L-F24YAP
Code:
M22L-F24YAP

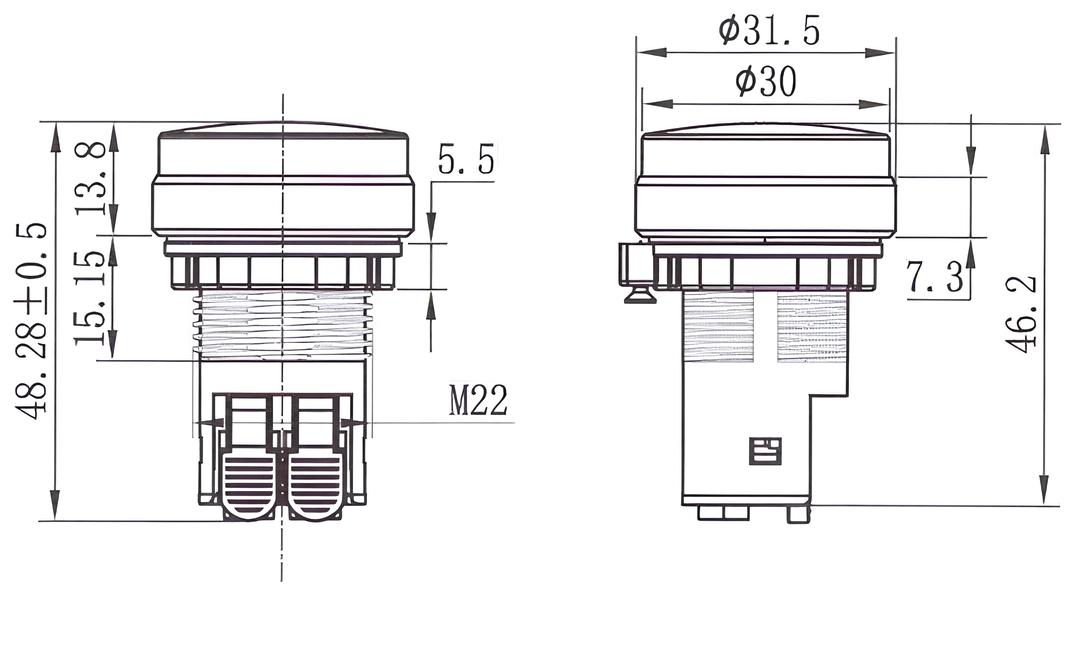

| Hole diameter, mm | 22.2 |
| Voltage type | AC/DC |
| Colour lens | Yellow |
| Number of indicator lights | 1 |
| Rated operating voltage Ue, V | 9...24 |
| Colour front ring | Grey |

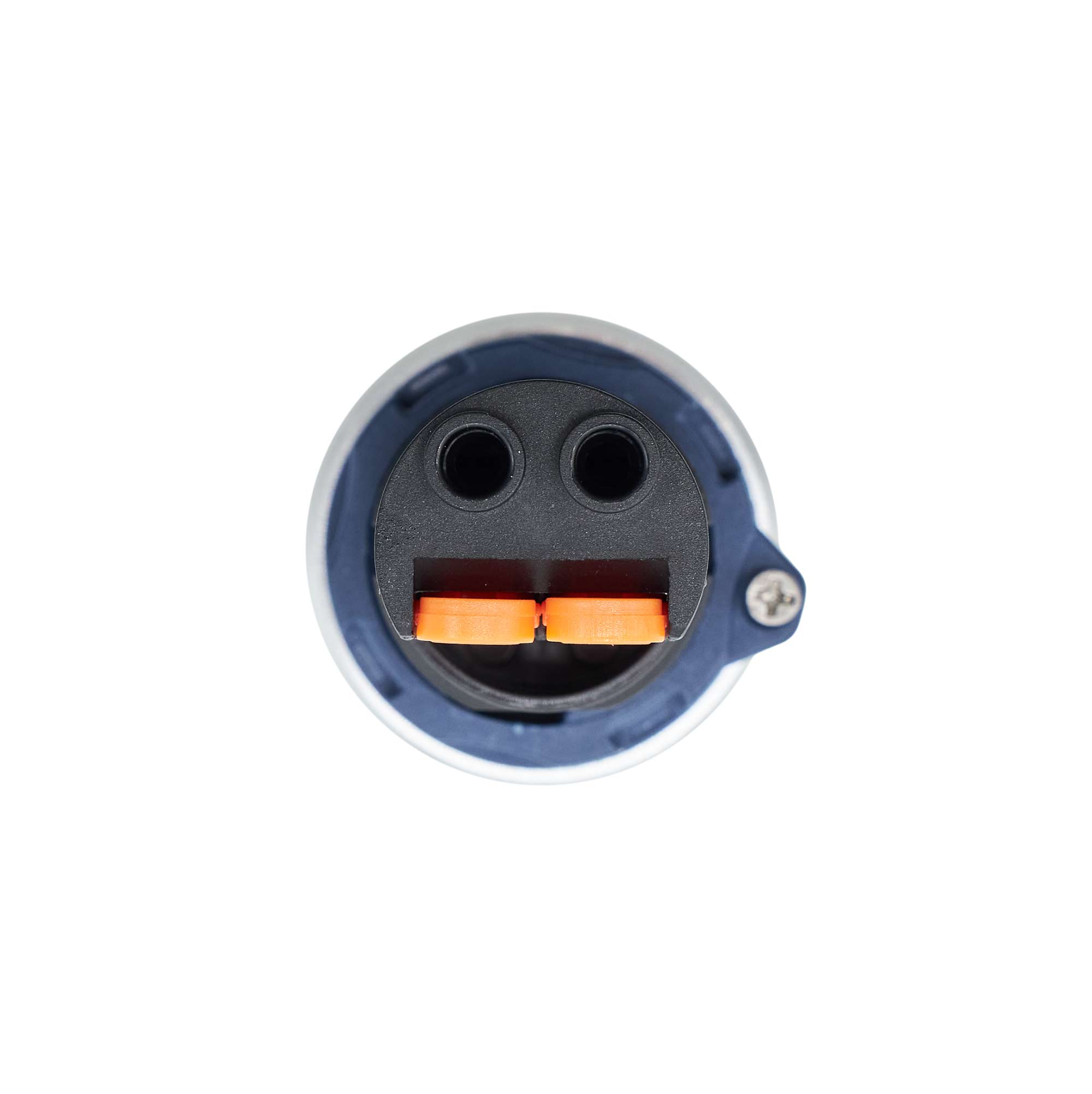

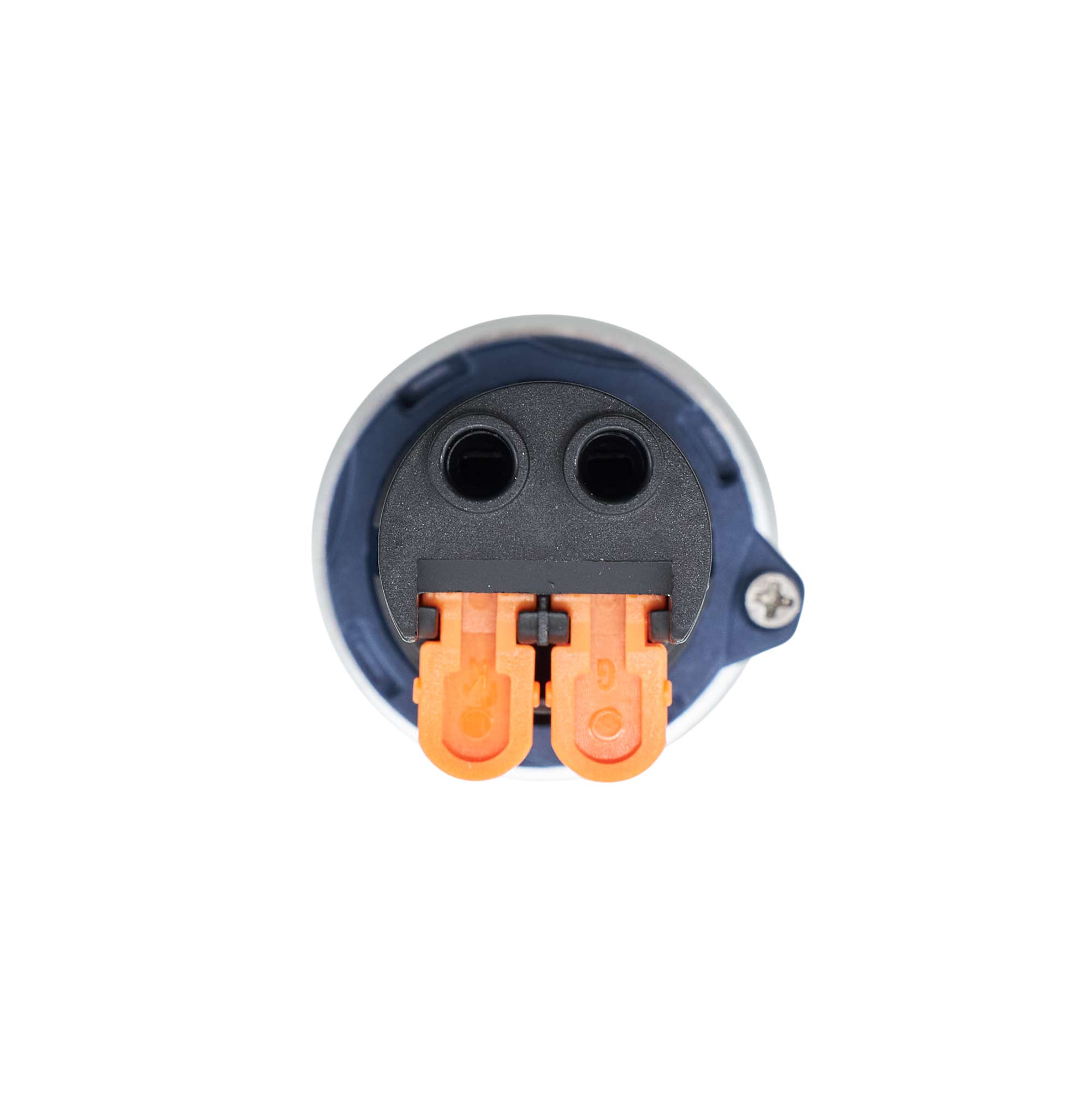

| Type of electric connection | Spring clamp connection |
| Width opening, mm | 22.2 |
| Height opening, mm | 22.2 |
| Degree of protection (IP) | IP68 |
| With light source | Yes |
| Material front ring | Metal |
| With front ring | Yes |

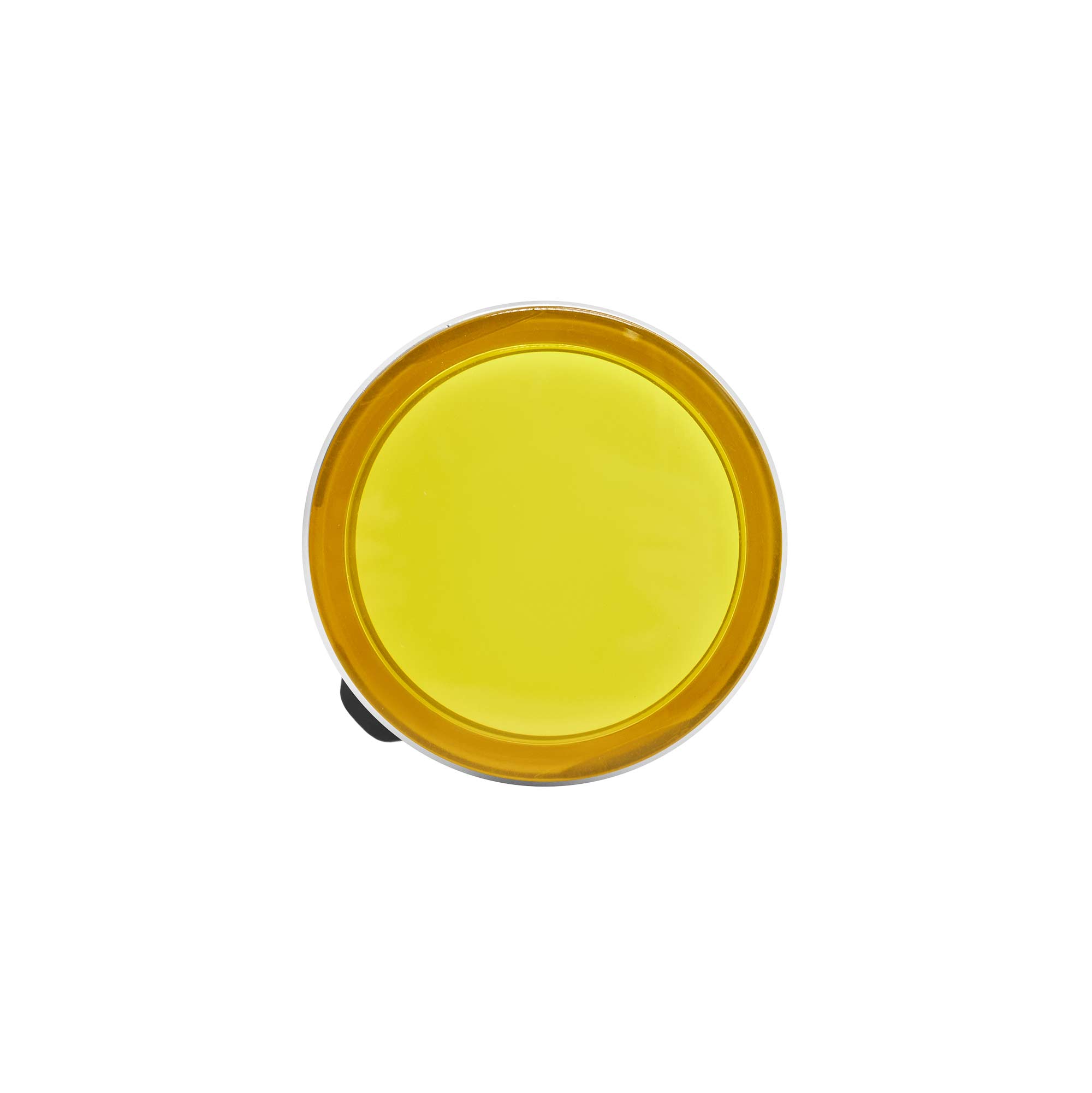

| Construction type lens | Round |
| Type of lamp socket | LED |
| Type of lens | Flat |
| Voltage | 9-24 V |
| Color | Yellow |
| Degree of protection (IP) | IP68 |
| Product type | Signal indicator |
| Ring Material | Aluminium |
| The clamp | Plug-In |
