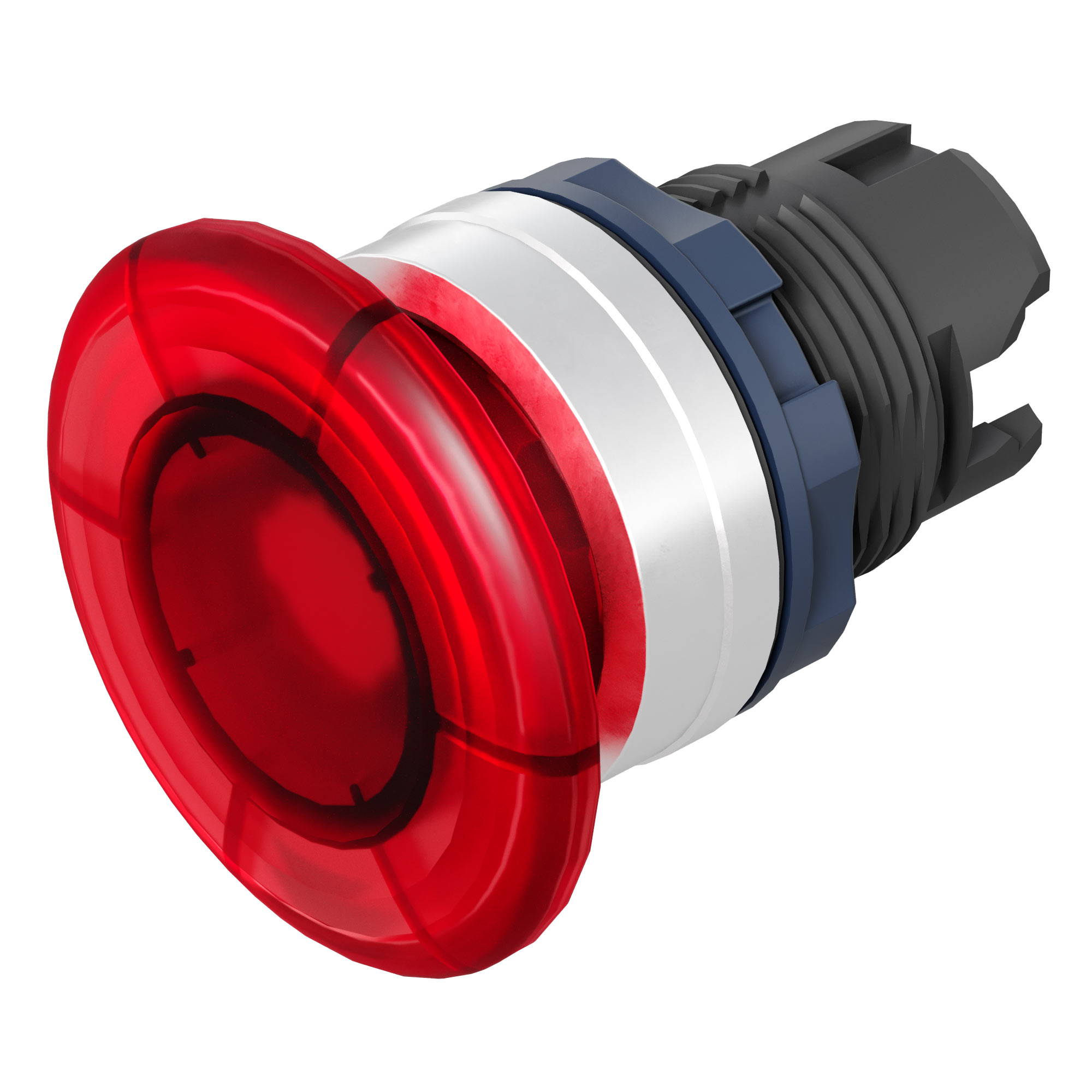

The button head is mushroom-shaped, D.40, transparent without fixation, red, aluminum ring
Code:
M22P-MMLRA
Code:
M22P-MMLRA
| Hole diameter, mm | 22.2 |
| Colour button | Red |
| Suitable for illumination | Yes |
| Number of command positions | 3 |
| Spring-return | No |
| Suitable for emergency stop | Yes |
| Labelled | No |
| Type of button | High |
| Degree of protection (IP), front side | IP65 |
| Width opening, mm | 22.2 |
| Height opening, mm | 22.2 |
| Material front ring | Metal |
| Construction type lens | Round |
| Switching function latching | No |
| Product type | Button head |
| Degree of protection (IP) | IP65 |
| Fixation | No |
| Color | Red |
| Button type | Mushroom |
| Backlighting option | Yes |
| Ring Material | Aluminium |
| Type | Push button |
