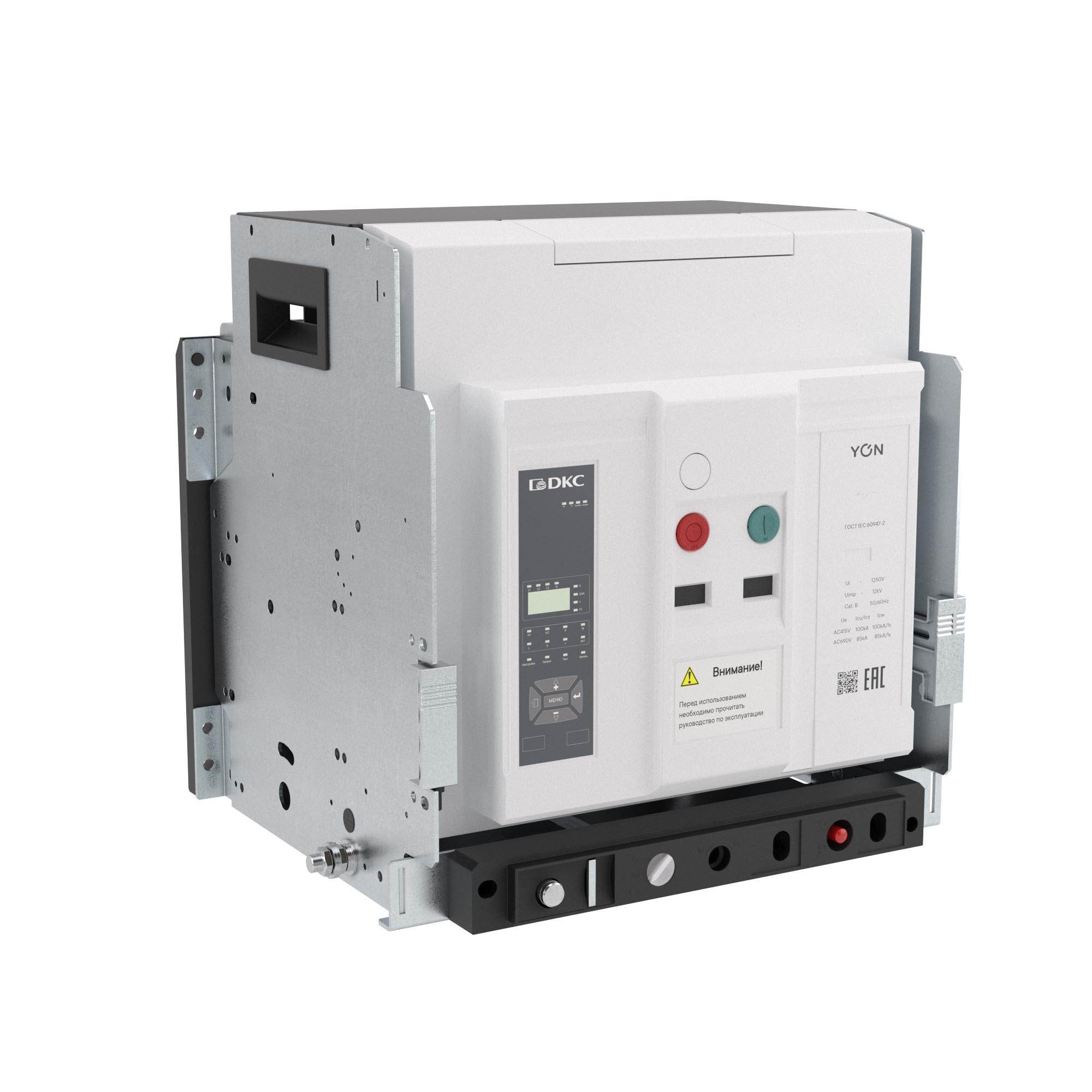

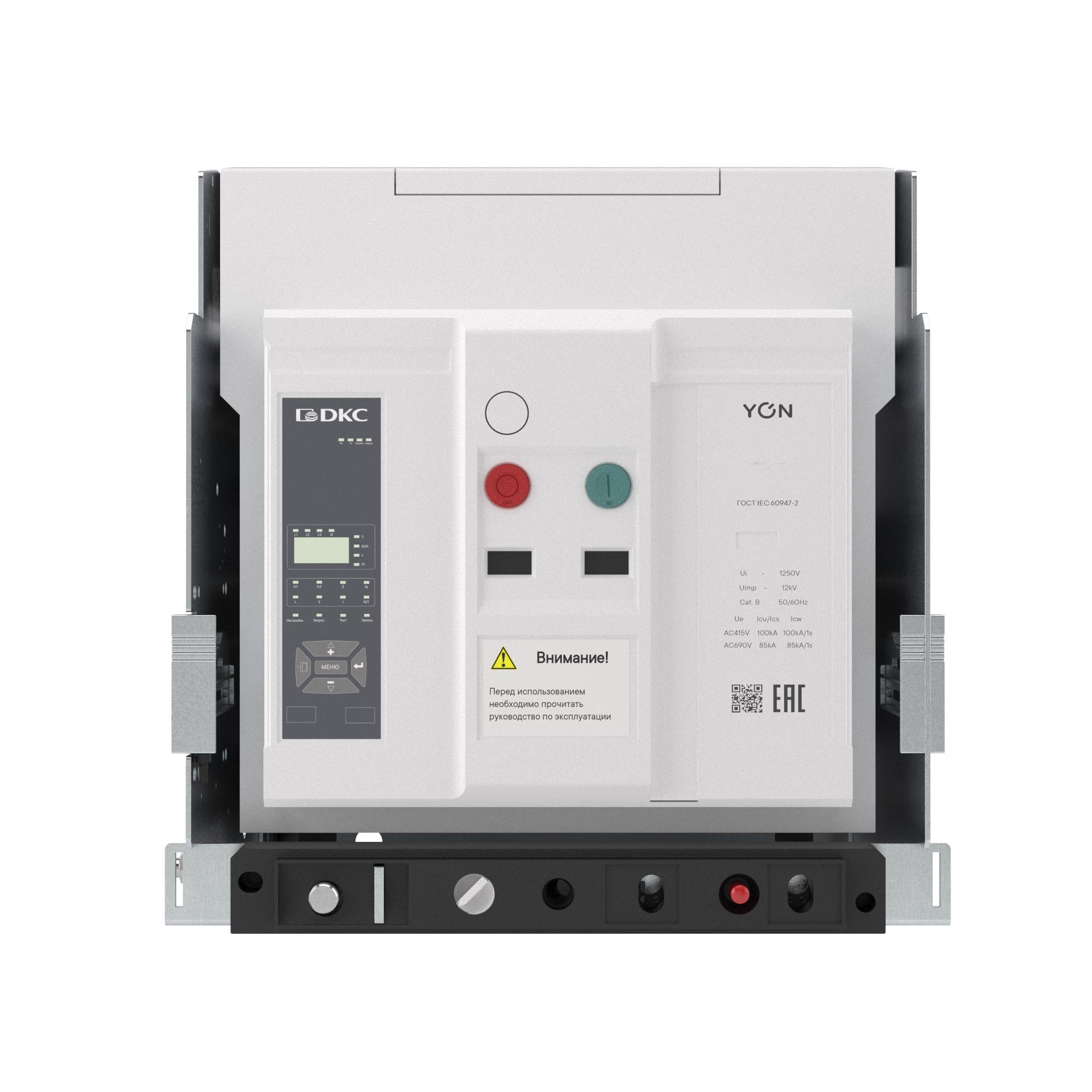

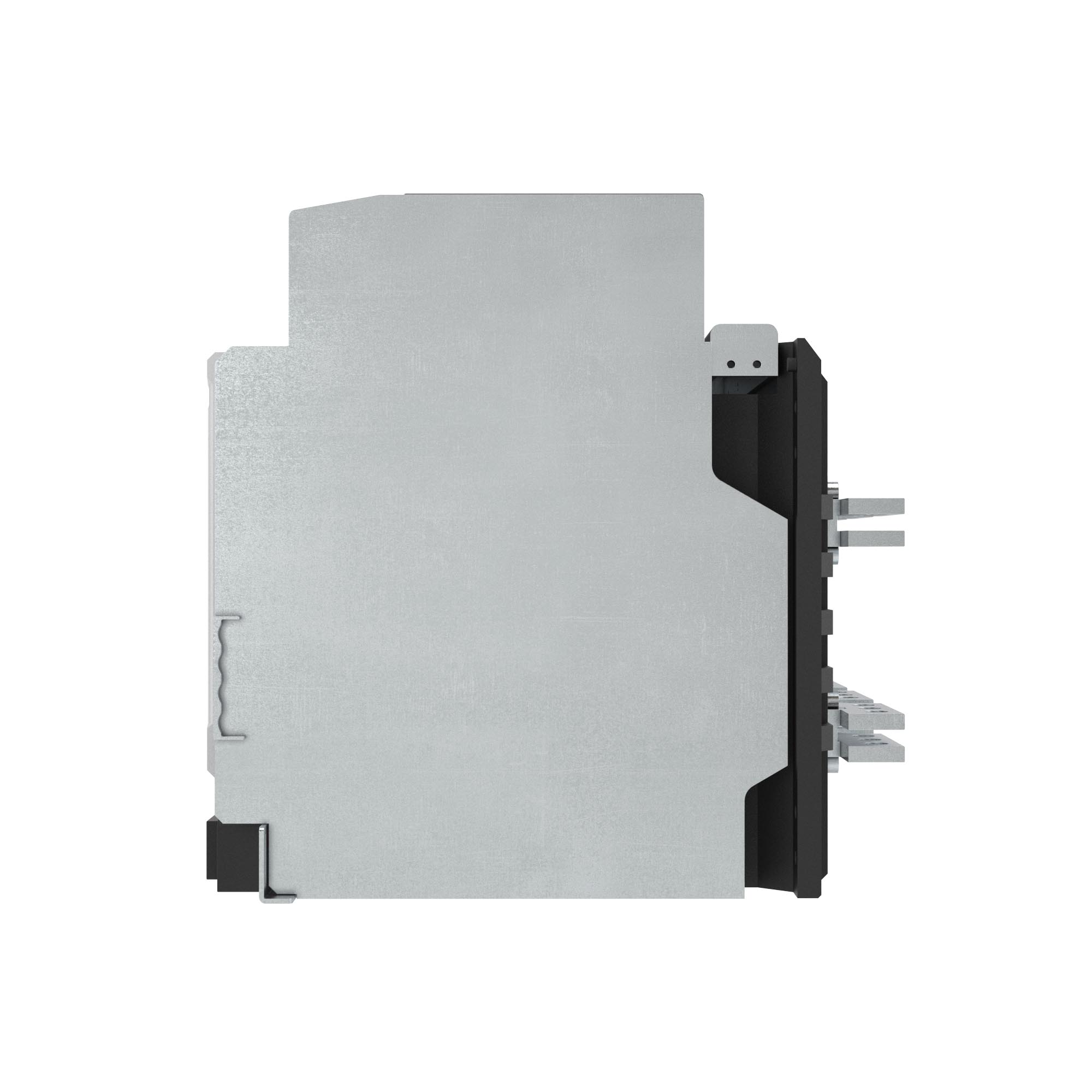

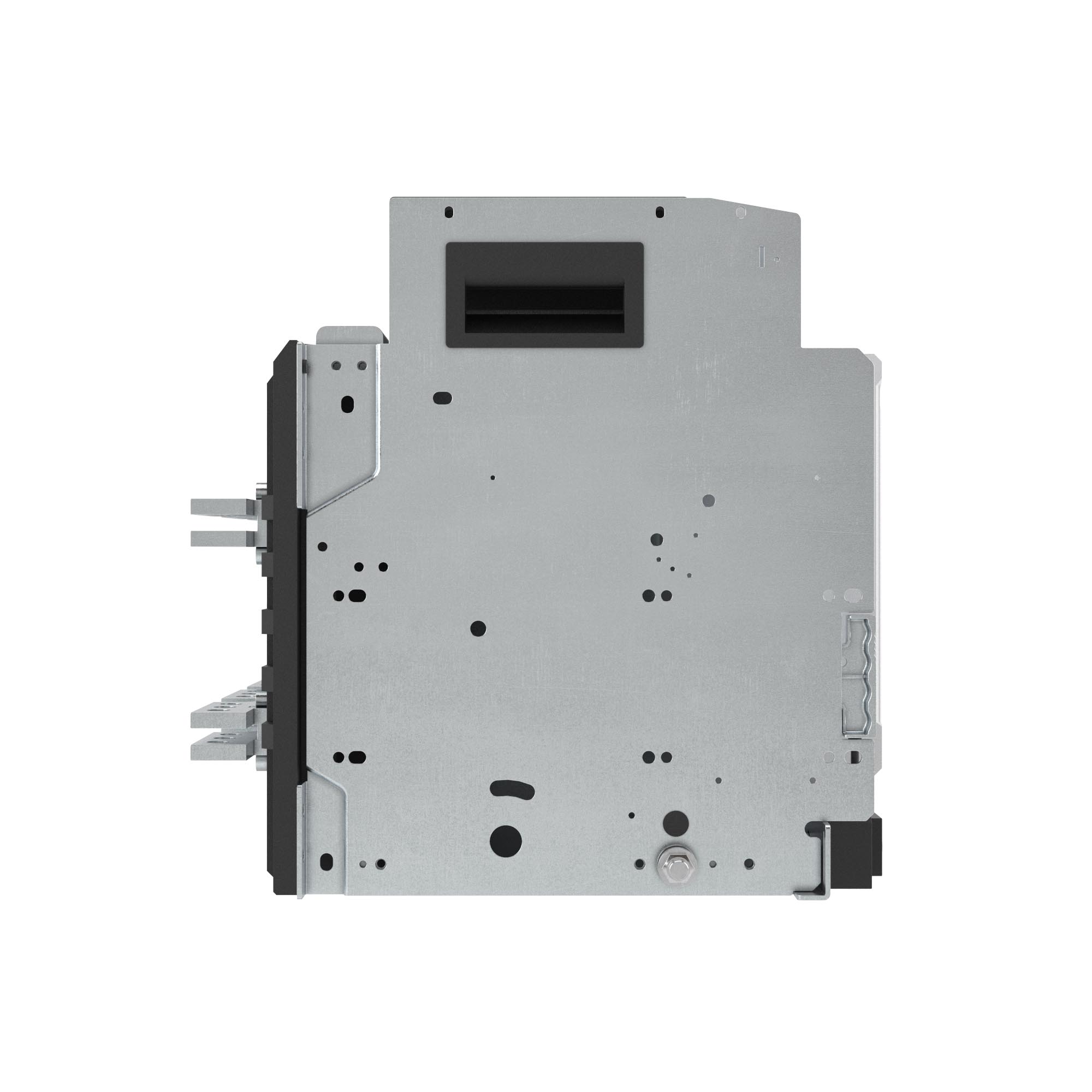

Air Circuit Breaker ANX4000 3200A 3P, Trip Unit ETA, 100kA, Withdrawable version, Connections: top horizontal, bottom horizontal, Remote operation 220V AC, Standart Kit
Code:
ANX32XM3DH522200K
Code:
ANX32XM3DH522200K
| Rated permanent current Iu, A | 3200 |
| Number of poles | 3 |
| Overload release current setting, A | 1280...3200 |
| Number of auxiliary contacts as change-over contact | 6 |
| Rated voltage, V | 400...690 |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Back connection |
| Type of electrical connection of main circuit | Bolt connection |
| Type of control element | Push button |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 100 |
| Suitable for DIN rail (top hat rail) mounting | No |
| Integrated earth fault protection | Yes |
| With under voltage release | No |
| Device construction | Built-in device slide-in technique (withdrawable) |
| Complete device with protection unit | Yes |
| Type of product | Выключатель автоматический воздушный |
| Motor drive integrated | Yes |
| Number of auxiliary contacts as normally open contact | 6 |
| Number of auxiliary contacts as normally closed contact | 6 |
| Rated current In | 3200 A |
| Breaking Capacity Limit at Ue 400V, Icu | 100 kA |
| Breaking Capacity Limitat Ue 690V, Icu | 85 kA |
| Q'ty of poles | 3P |
| Execution | Withdrawable |
| Executing the connection method | Horizontal |
| Type release | ETA |
| Integrated accessories: | Motor drive, closing coil, shunt trip, 220 V AC control |
