Code: R5TT102
No name
No name

No name

Code: R5TT102
Colour Grey
Width, mm 1000
Height, mm 45
Depth, mm 200
RAL-number 7035
With de-aeration Yes
Material Steel
Suitable for outdoor set-up Yes
Surface finishing Powder coating
Enclosure type Wall-mounted
Material Painted steel

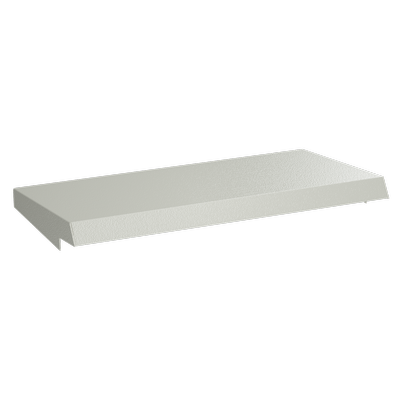

Product type Rain canopy
Drawings
Seria Name DWG STEP
Metal enclosures - "RAMblock"
Rain visor for cabinets of  ST/CE 1000x200мм
ZIP
106.27 Kb
ZIP
135.27 Kb
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for welded boxes CE/CDE on the seismic stability_1
PDF
128.88 kB
RAM block - Test report for welded boxes CE/CDE on the vibration_1
PDF
125.50 kB
Test report on seismic and vibration metal enclosures ST series_1
PDF
998.40 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
"RAM block" - Certificate of the Russian river register for welded hinged metal housings of the ST series
PDF
682.41 kB
Certificate of conformity to GOST R 51369-99 for resistance to climatic external factors for wall mounting enclosures ST series
PDF
377.54 kB
Certificate of conformity to GOST 14254-2015 for wall-mounted enclosure series ST (IP 55, 65, 66)
PDF
419.21 kB
Certificate of conformity to GOST 17516.1-90 to stability to seismic action for wall-mounted enclosure series ST
PDF
413.95 kB
Certificate of conformity to GOST 30244-94 for wall-mounted enclosure series ST of the burning group G1
PDF
2.58 MB
