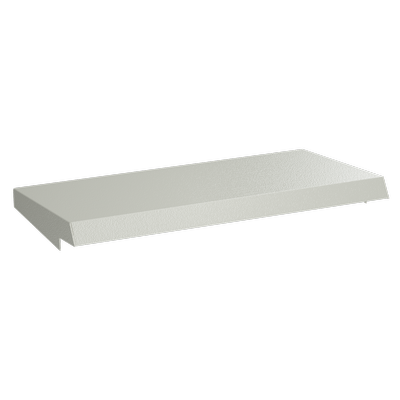

Rain visor for cabinets of CE, 500 x 200 mm

Code: R5TT052
Rain visor for cabinets of CE, 500 x 200 mm
Rain visor for cabinets of CE, 500 x 200 mm

Rain visor for cabinets of CE, 500 x 200 mm

Code: R5TT052
Colour White
Width, mm 500
Height, mm 30
Depth, mm 200
RAL-number 7035
With de-aeration Yes
Material Steel
Suitable for outdoor set-up Yes
Surface finishing Powder coating
Enclosure type Wall-mounted
Material Painted steel
Product type Rain canopy
Drawings
Seria Name DWG STEP
Metal enclosures - "RAMblock"
Visor rain, for Cabinet CE, 500 x 200 mm
RAR
48.9 Kb
RAR
40.02 Kb
Metal enclosures - "RAMblock"
Rain visor for cabinets of CE, 500 x 200 mm
ZIP
108.22 Kb
ZIP
134.66 Kb
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for welded boxes CE/CDE on the seismic stability_1
PDF
128.88 kB
RAM block - Test report for welded boxes CE/CDE on the vibration_1
PDF
125.50 kB
Test report on seismic and vibration metal enclosures ST series_1
PDF
998.40 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
