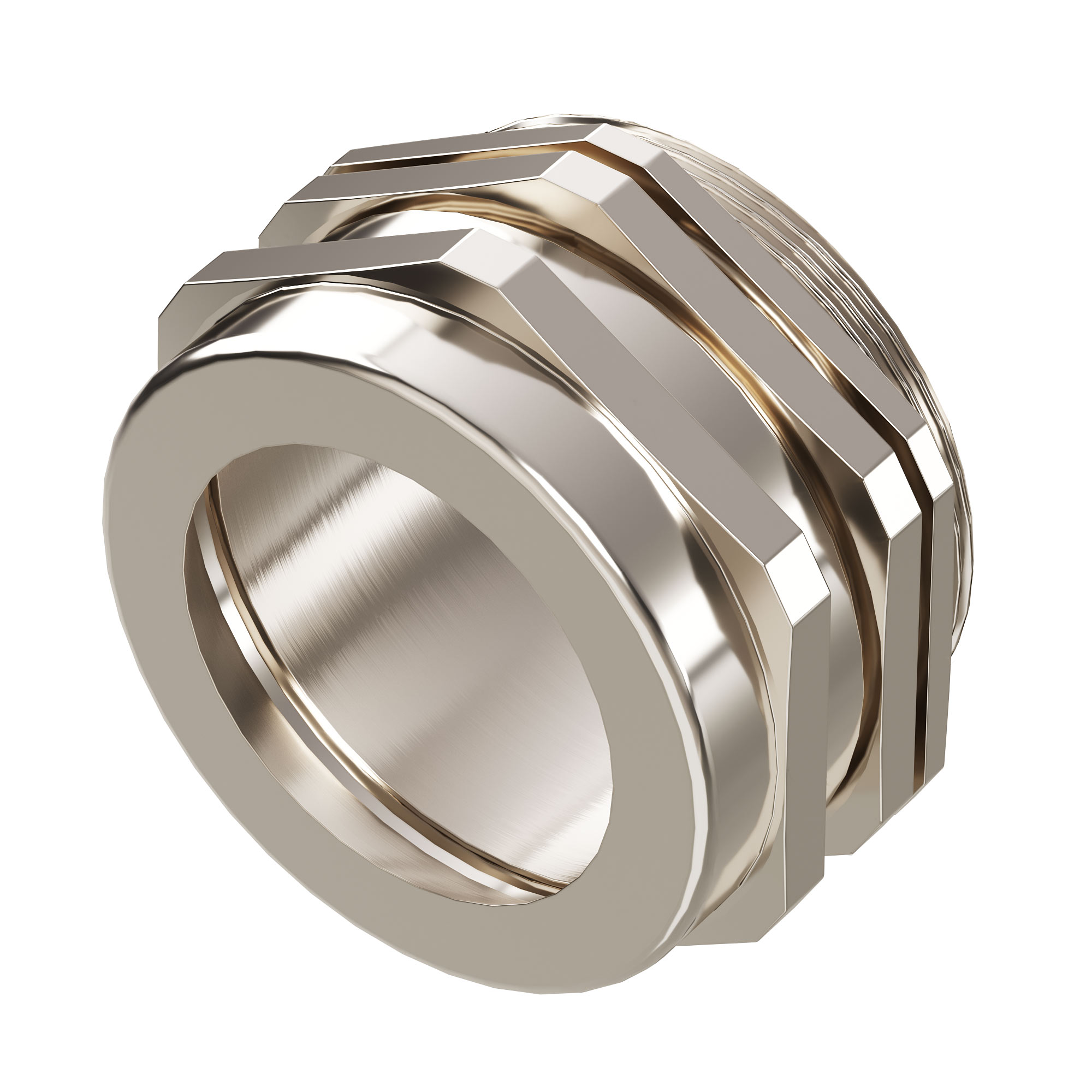

Brass cable gland М72, d= 42-52 mm

Code: R5BCM72

Colour	Light grey
Model	Straight
Halogen free	Yes
Shock resistant	No
Surface protection	Nickel-plated
Wrench width, mm	105
Thread length, mm	15
Bend radius protection/trumpet flare	No
Strain relief	No
Glass-fibre reinforced	No
Type of sealing	Sealing ring
Material quality	Brass
Operating temperature, °C	-40…100
Thread type	Metric

Material	Metal
Pitch thread, mm	1.5
Explosion-tested version	No
Flat cable coupling	No
Multi seal area	No
With locknut	Yes
Separable screw gland	No
Suitable for cable diameter, mm	52
Degree of protection (IP)	IP65
For Ex-zone gas	None
Nominal thread size inch/gas pipe thread	Other
Nominal thread size metric/PG	72
For Ex-Zone dust	None
