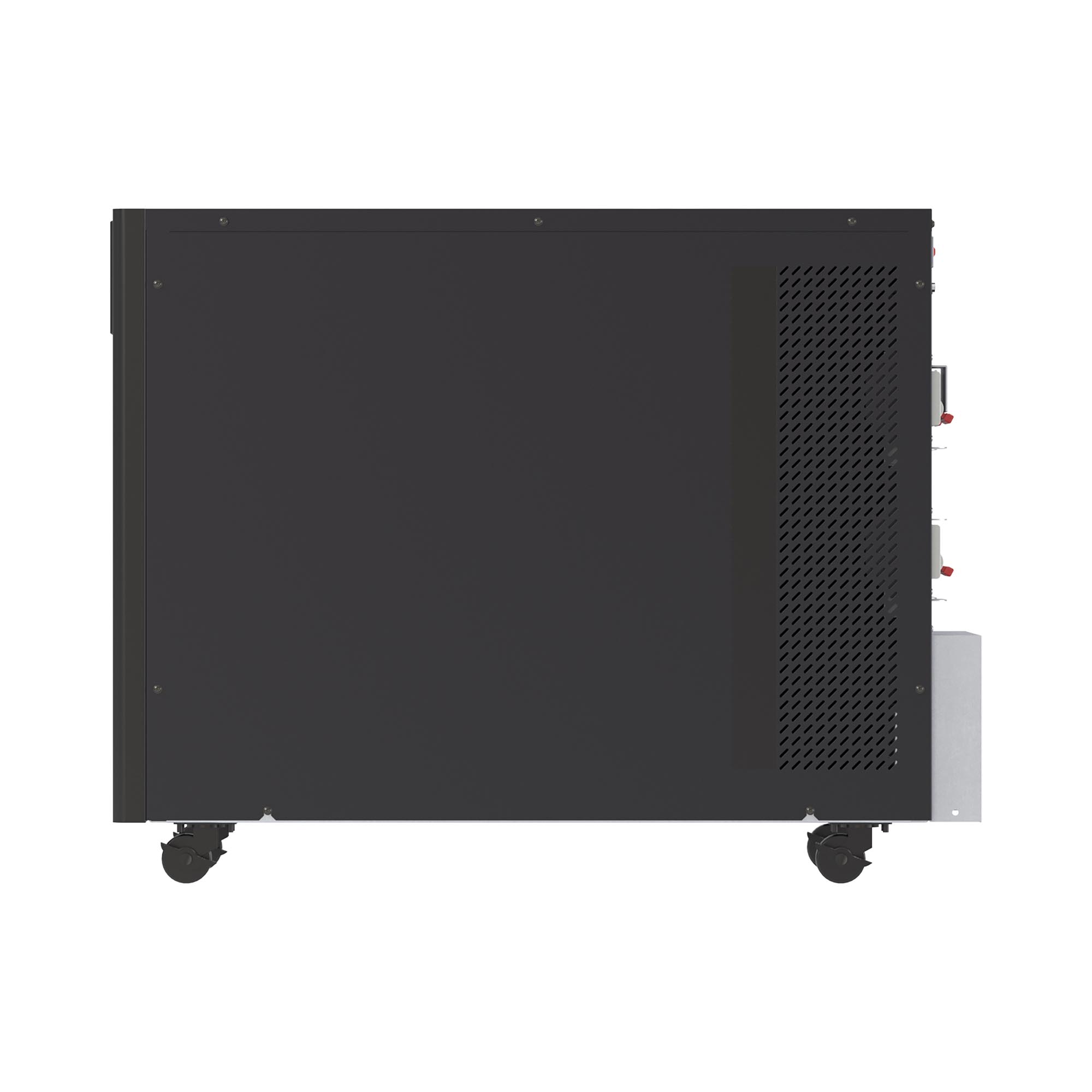

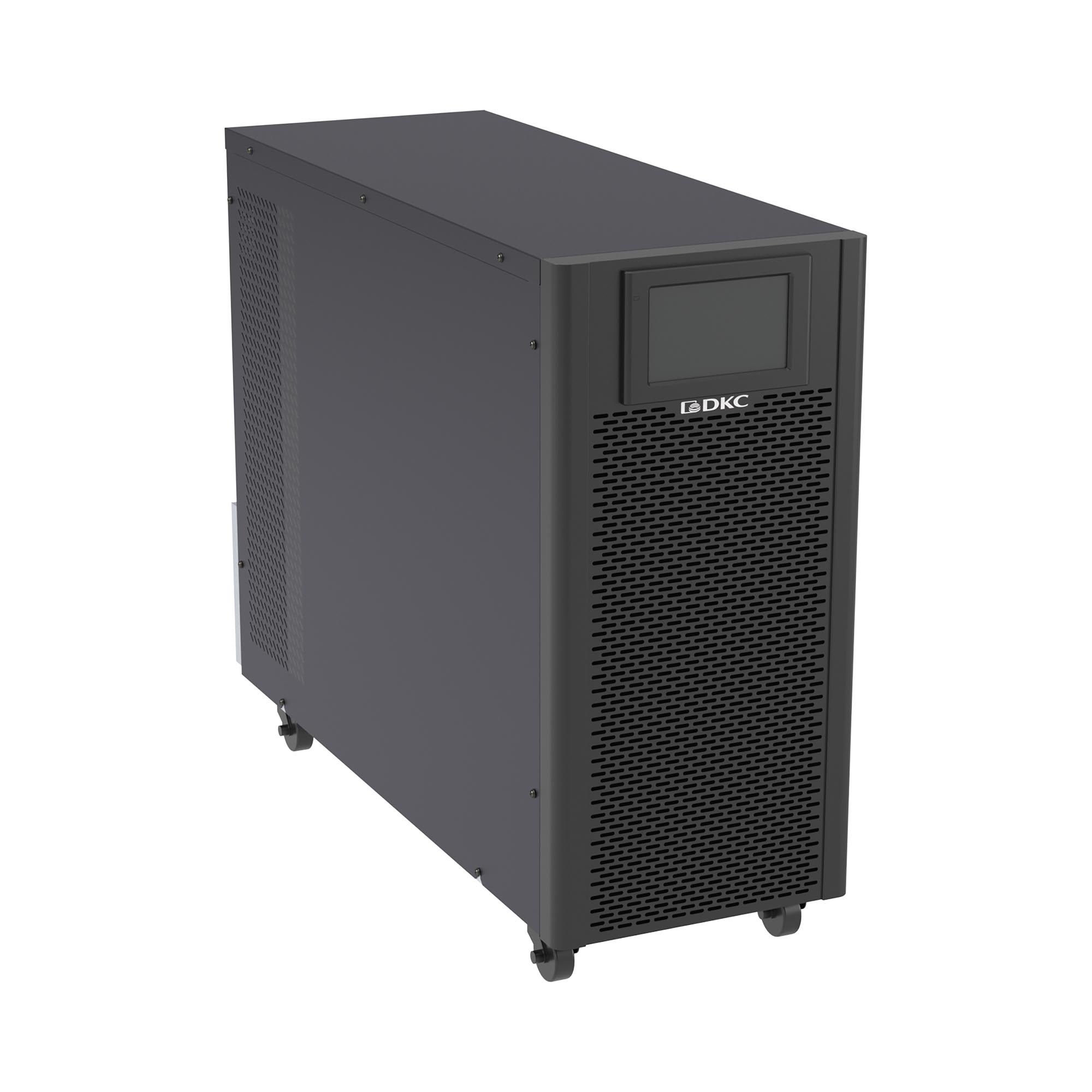

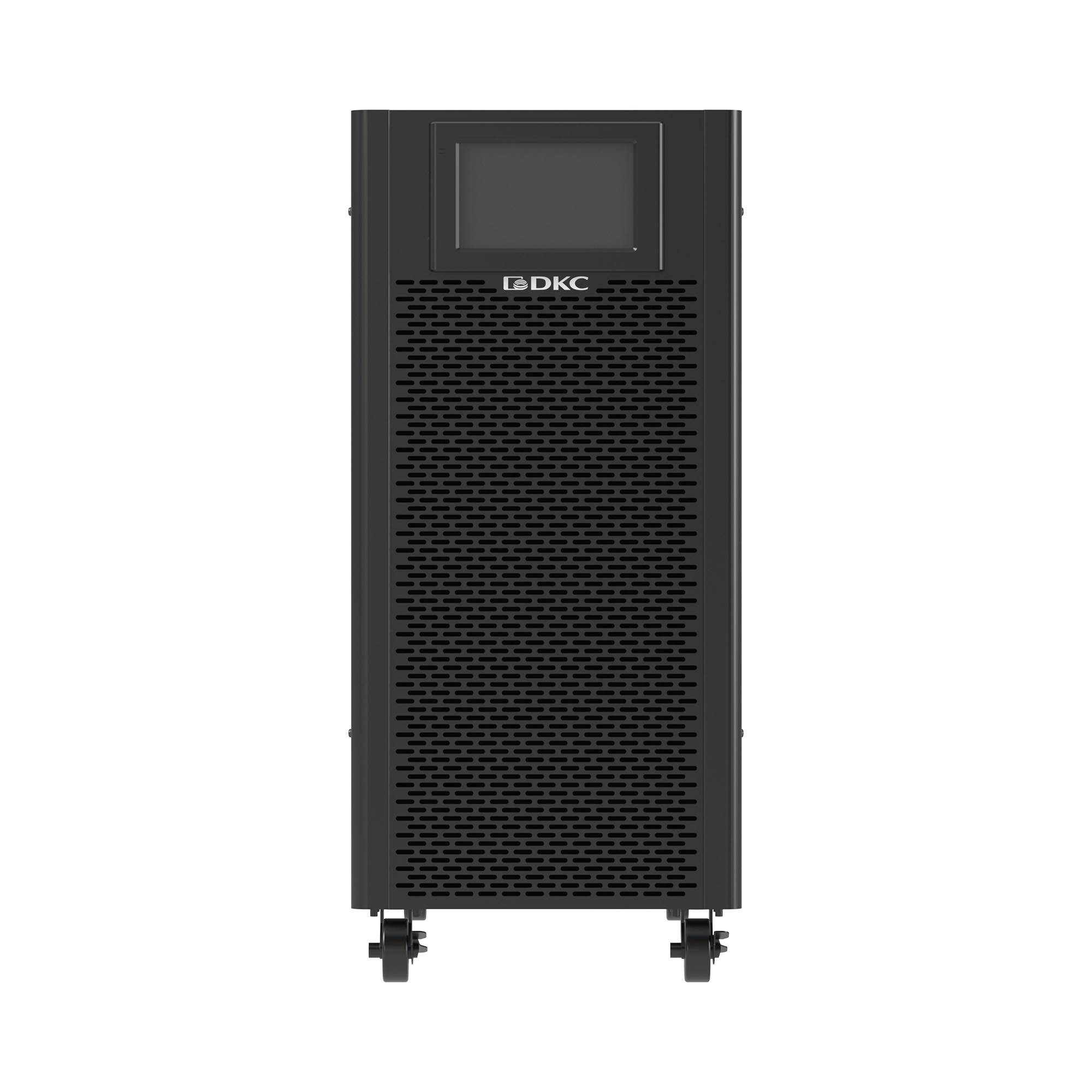

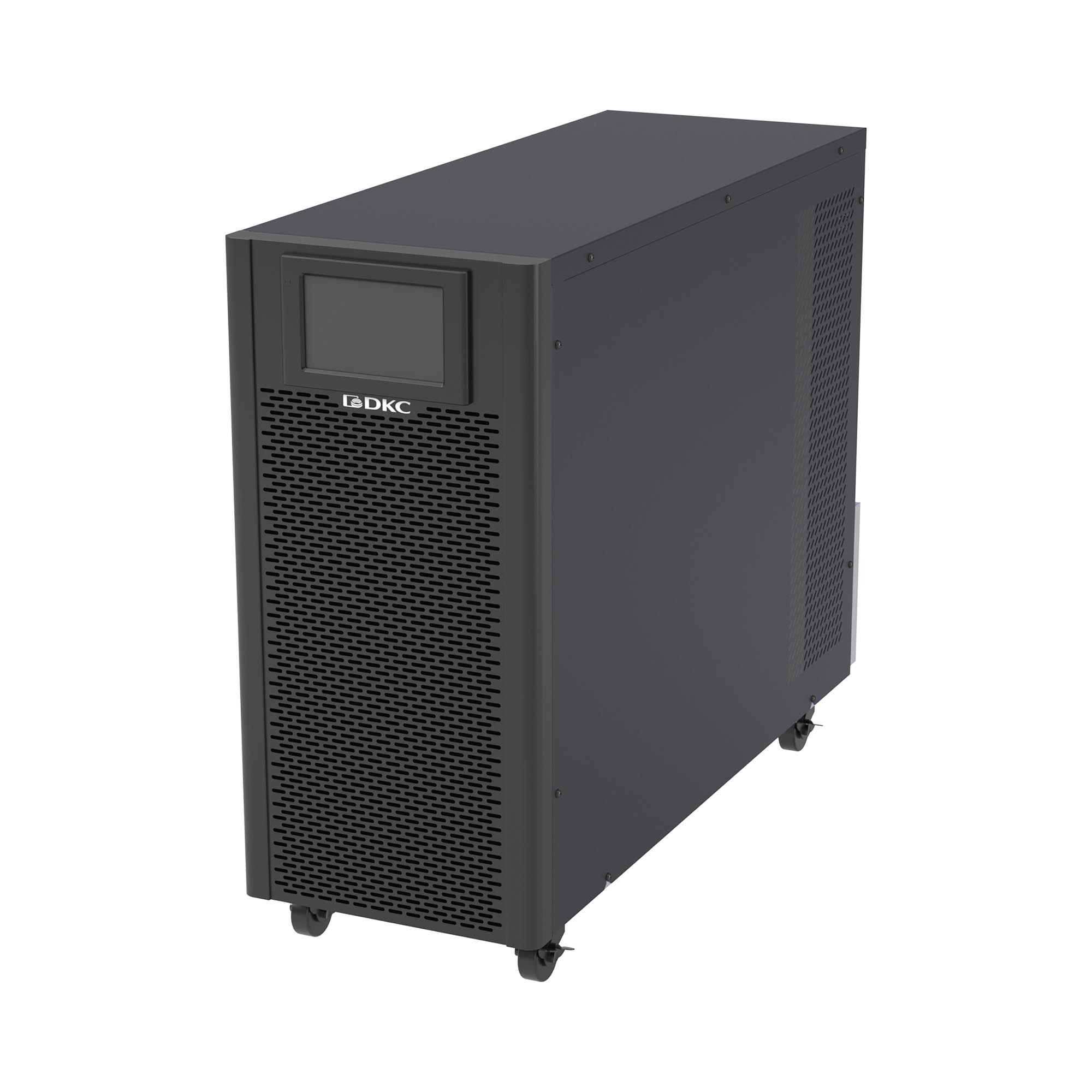

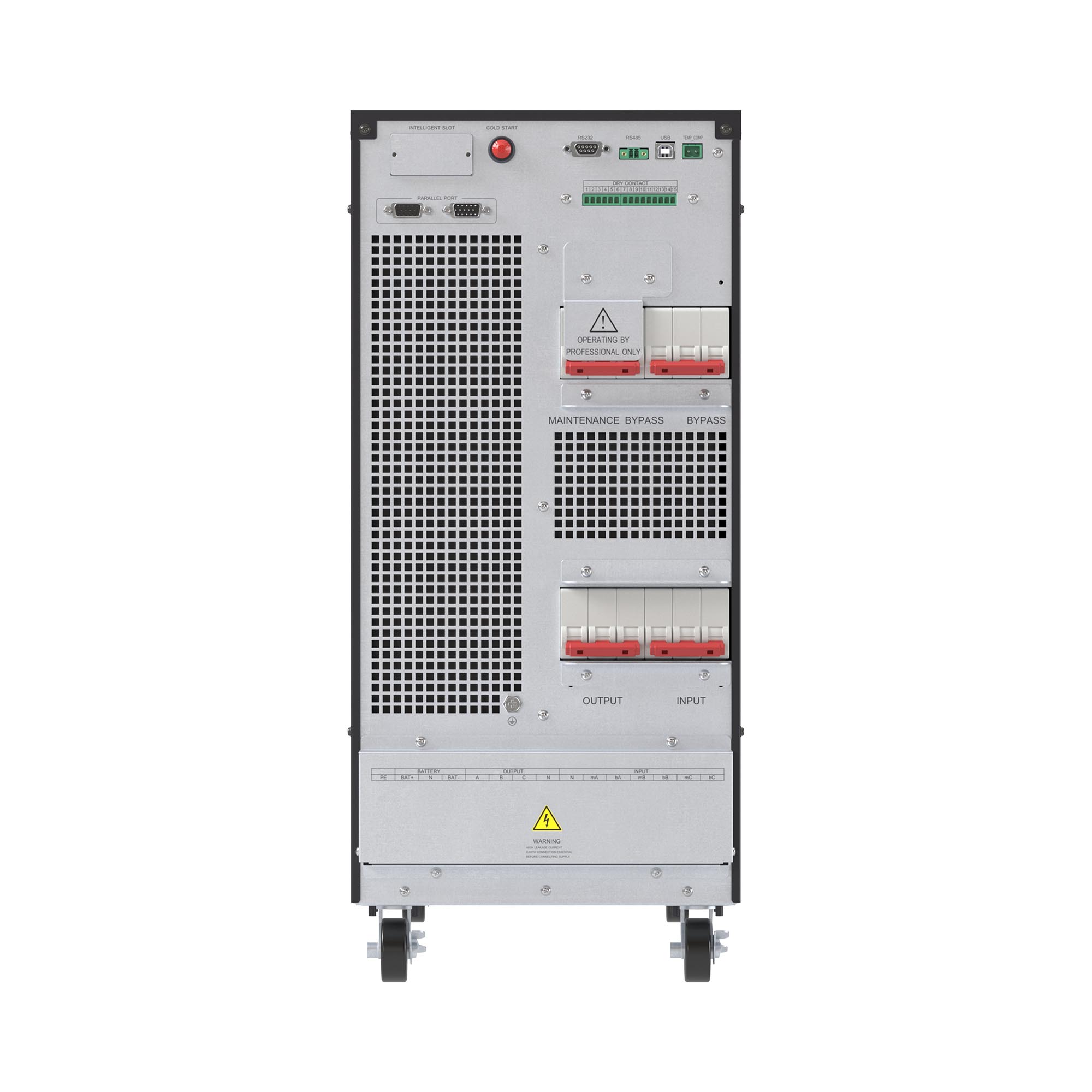

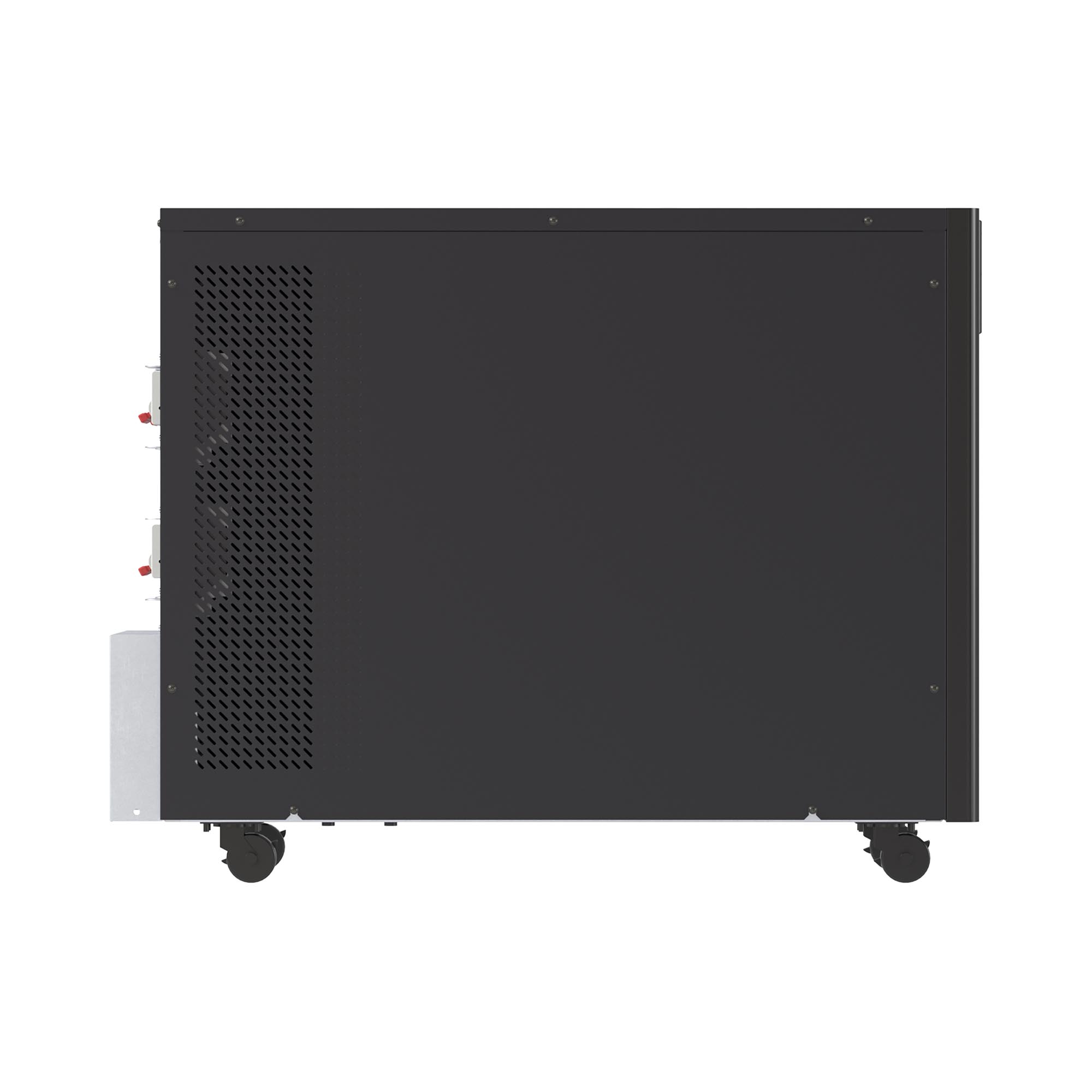

Three-phase UPS series TRIOMT 20kVA / 20kW, tower, without internal battery
Code:
TRIOMT20A0
Code:
TRIOMT20A0
| Width, mm | 250 |
| Height, mm | 560 |
| Depth, mm | 720 |
| Weight, kg | 33 |
| Voltage type | AC |
| Output power, VA | 20000 |
| Construction type | Free standing model |
| Input voltage, V | 304...478 |
| SNMP | Yes |
| USV- technology | Online |
| Primary frequency, Hz | 40...70 |
| Number of phases secondary | 3 |
| Number of phases primary | 3 |
| Max. voltage distortion output (linear load), % | 1 |
| Output power factor | 1 |
| Overall efficiency, % | 95 |
| Efficiency in eco-mode, % | 98 |
| PC interface | Yes |
| Input voltage range | 304~478Vac, full load |
| Input frequency range | 40~70 Hz |
| Input power factor | >0.99 |
| Input current THDi | <3% (linear load) |
| Bypass overload | 125%: long term operation; 125%~130%: 10min; 130%~150%: 1min; 150%~400%: 1s; >400%, less than 200ms |
| Rated output voltage | 380/400/415V |
| Output voltage precision | ±1% (linear load) |
| Total harmonic distortion (THDv) | <1% (full linear load); <3% (full non-linear load) |
| Crest factor | 3 : 1 |
| Inventer overload | <110%, 60min; 110%~125%,10min; 125%~150%,1min; >150%, 200ms |
| Nominal UPS rated power | 20kVA |
| Output power factor | 1 |
| Battery group design | External batteries |
| Installed internal batteries | No |
| DC voltage | ±192VDC … ±240VDC |
| Charging current | 10A |
| Communication protocols | SNMP, Modbus-TCP, Modbus-RTU as standard |
| Li-ion batteries support | Yes |
| Display | 5 inch touch screen |
| Noise level at 1m | < 58dB |
| Temperature range | 0 ~ 40 °C |
| Storage temperature | -40 ~ 70°C |
