| Rated permanent current Iu, A | 6300 |
| Number of poles | 3 |
| Overload release current setting, A | 2520...6300 |
| Number of auxiliary contacts as change-over contact | 6 |
| Rated voltage, V | 380...415 |
| Degree of protection (IP) | IP20 |
| Position of connection for main current circuit | Back side |
| Motor drive integrated | Yes |
| Type of electrical connection of main circuit | Rail connection |
| Type of control element | Push button |
| With switched-off indicator | Yes |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 135 |
| Adjustment range short-term delayed short-circuit release, A | 9450...94500 |
| Adjustment range undelayed short-circuit release, A | 6300...100000 |
| Suitable for DIN rail (top hat rail) mounting | No |
| Integrated earth fault protection | Yes |
| Motor drive optional | Yes |
| With under voltage release | No |
| Device construction | Built-in device slide-in technique (withdrawable) |
| DIN rail (top hat rail) mounting optional | No |
| Type of product | Выключатель автоматический воздушный |
| Number of auxiliary contacts as normally open contact | 6 |
| Number of auxiliary contacts as normally closed contact | 6 |
| Rated current In | 6300А |
| Breaking Capacity Limit Icu | 135kA |
| Type of contactors | H |
| Q'ty of poles | 3 |
| Execution | retractable version |
| Executing the connection method | vertical |
| Type release | LSIG + RS485 |
| Motor drive | Installed |
| Switching coil | 220 В AC |
| Shunt coil | Installed |

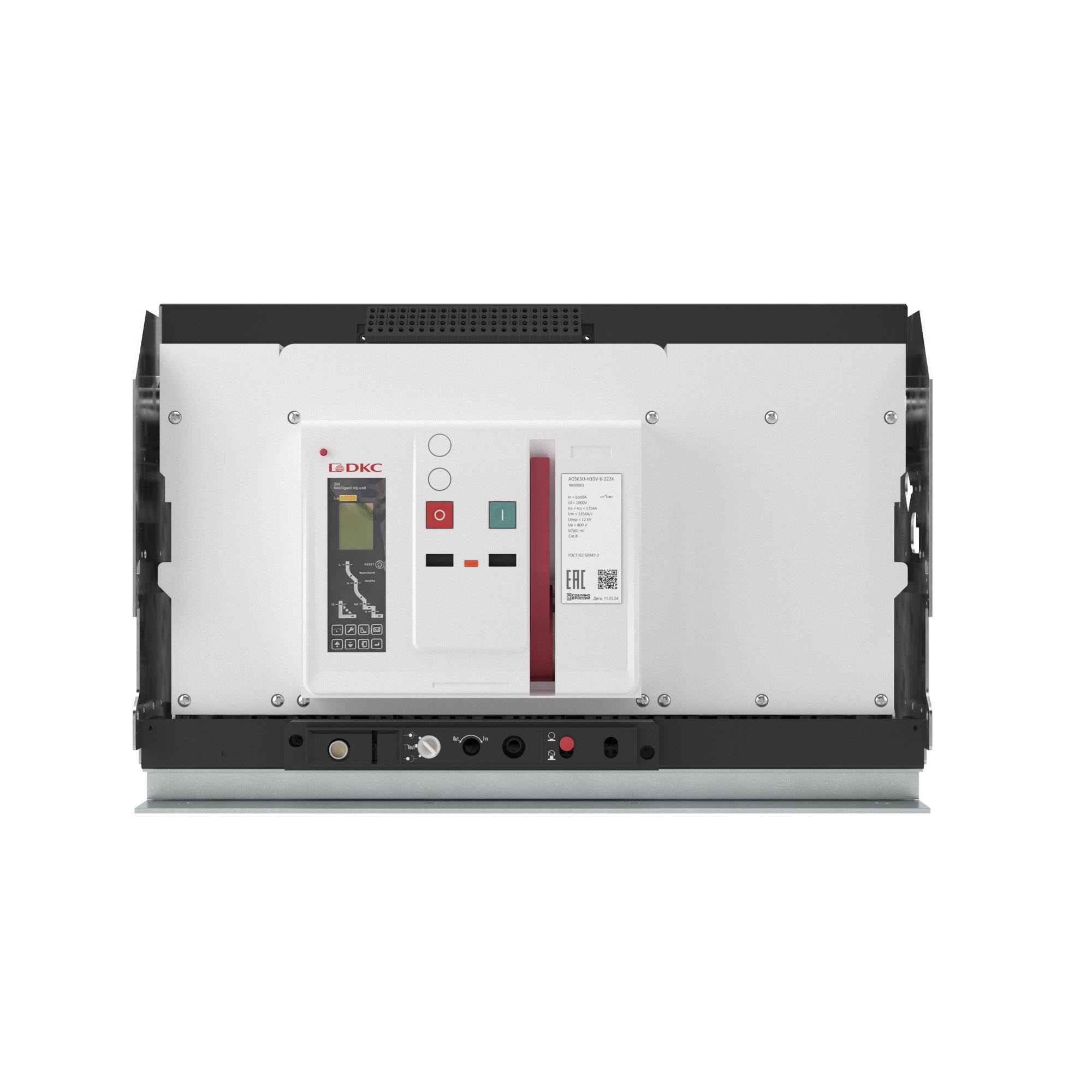

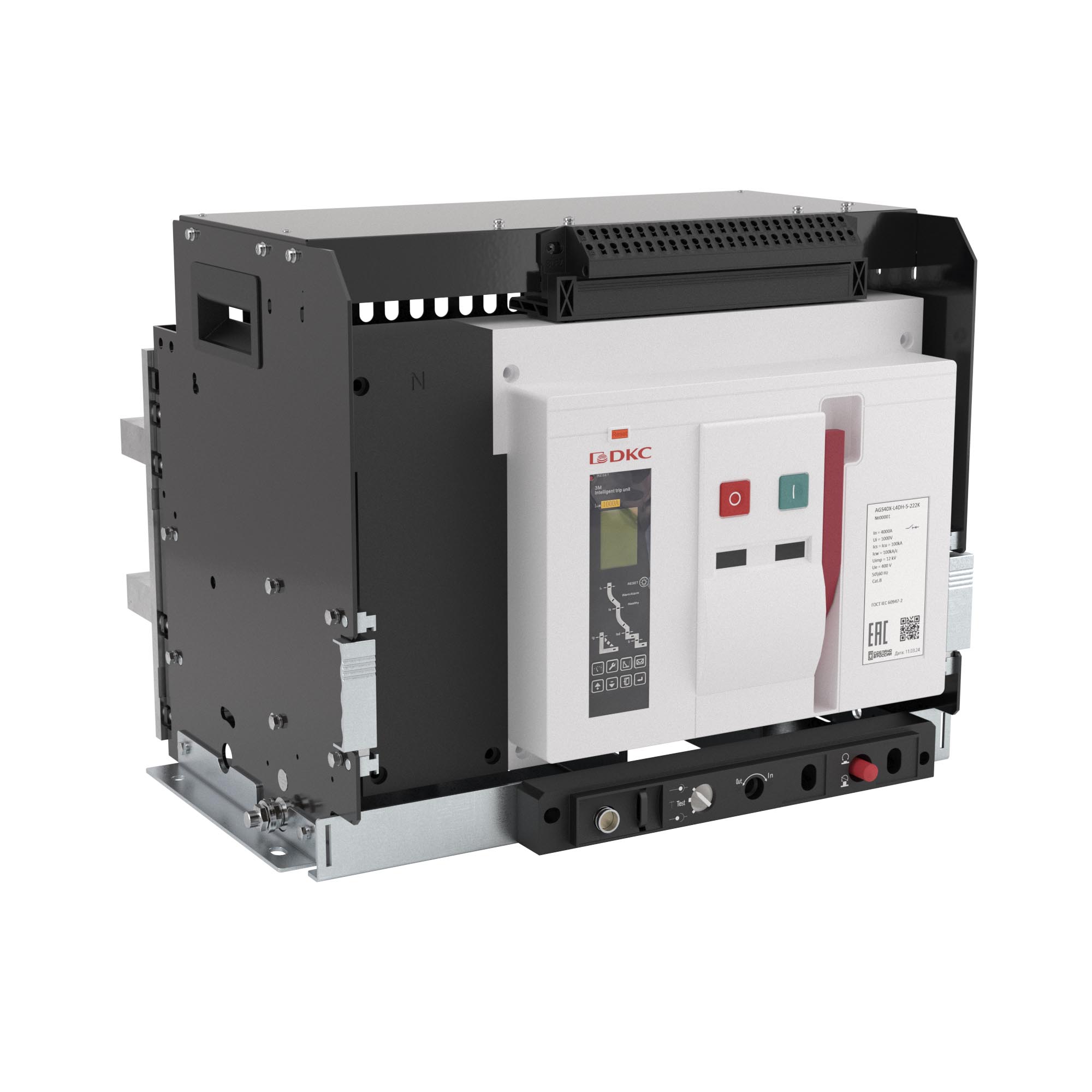

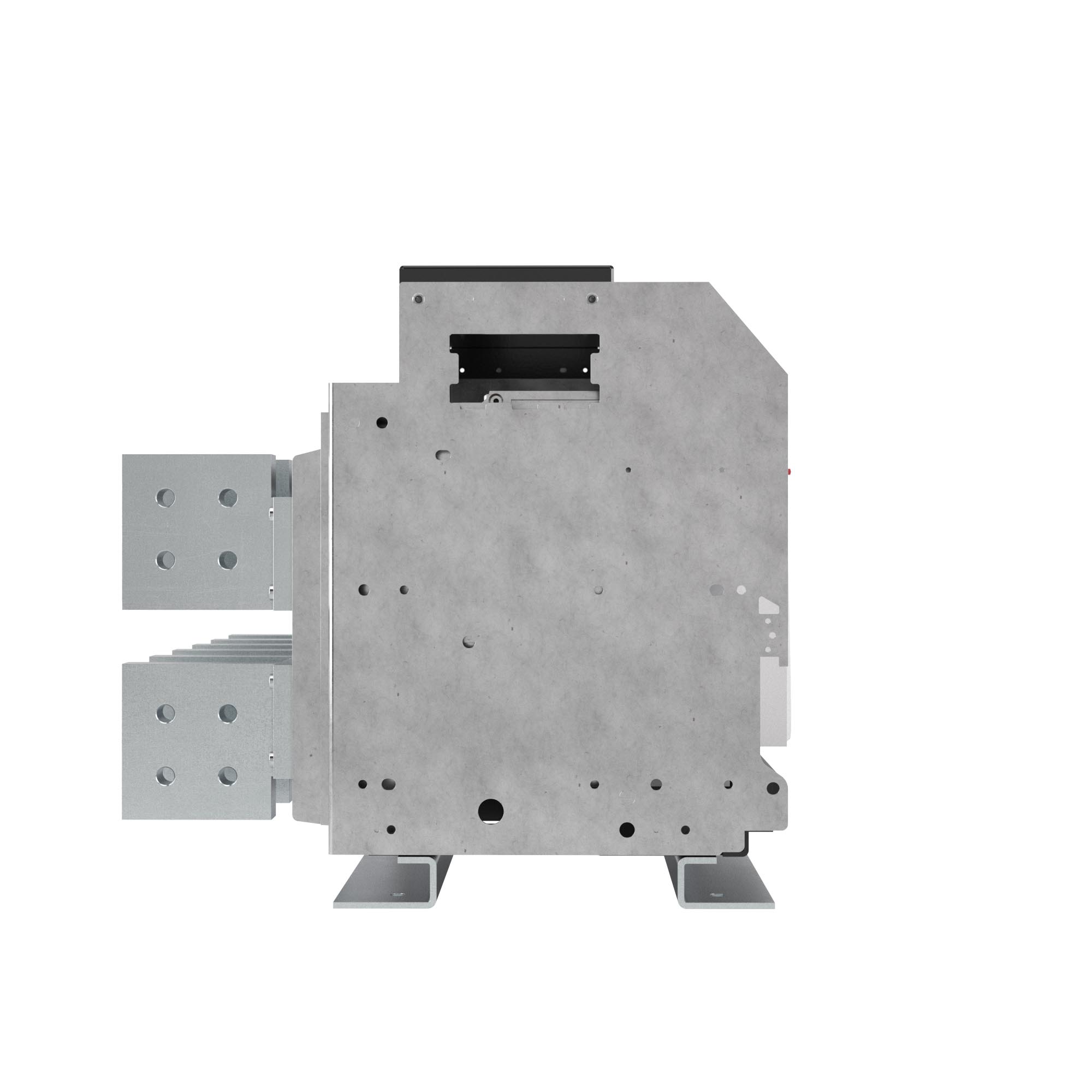

| Product/component type | Air circuit breaker |
| Series | YON max |
| Warranty | 5 years |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.12.22.000 |
| Commodity Nomenclature of Foreign Economic Activity | 8536209007 |
