| Rated permanent current Iu, A | 1000 |
| Number of poles | 3 |
| Overload release current setting, A | 400...1000 |
| Rated voltage, V | 380...415 |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Rail connection |
| Type of control element | Push button |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 65 |
| Suitable for DIN rail (top hat rail) mounting | No |
| With under voltage release | No |
| Device construction | Built-in device slide-in technique (withdrawable) |
| Type of product | Выключатель автоматический воздушный |
| Number of auxiliary contacts as normally open contact | 6 |
| Number of auxiliary contacts as normally closed contact | 6 |
| Rated current In | 1000А |
| Breaking Capacity Limit Icu | 65kA |
| Q'ty of poles | 3 |
| Execution | Retractable version |
| Executing the connection method | Horizontal |
| Type release | LSIG + RS485 |
| Motor drive | 220 В AC |

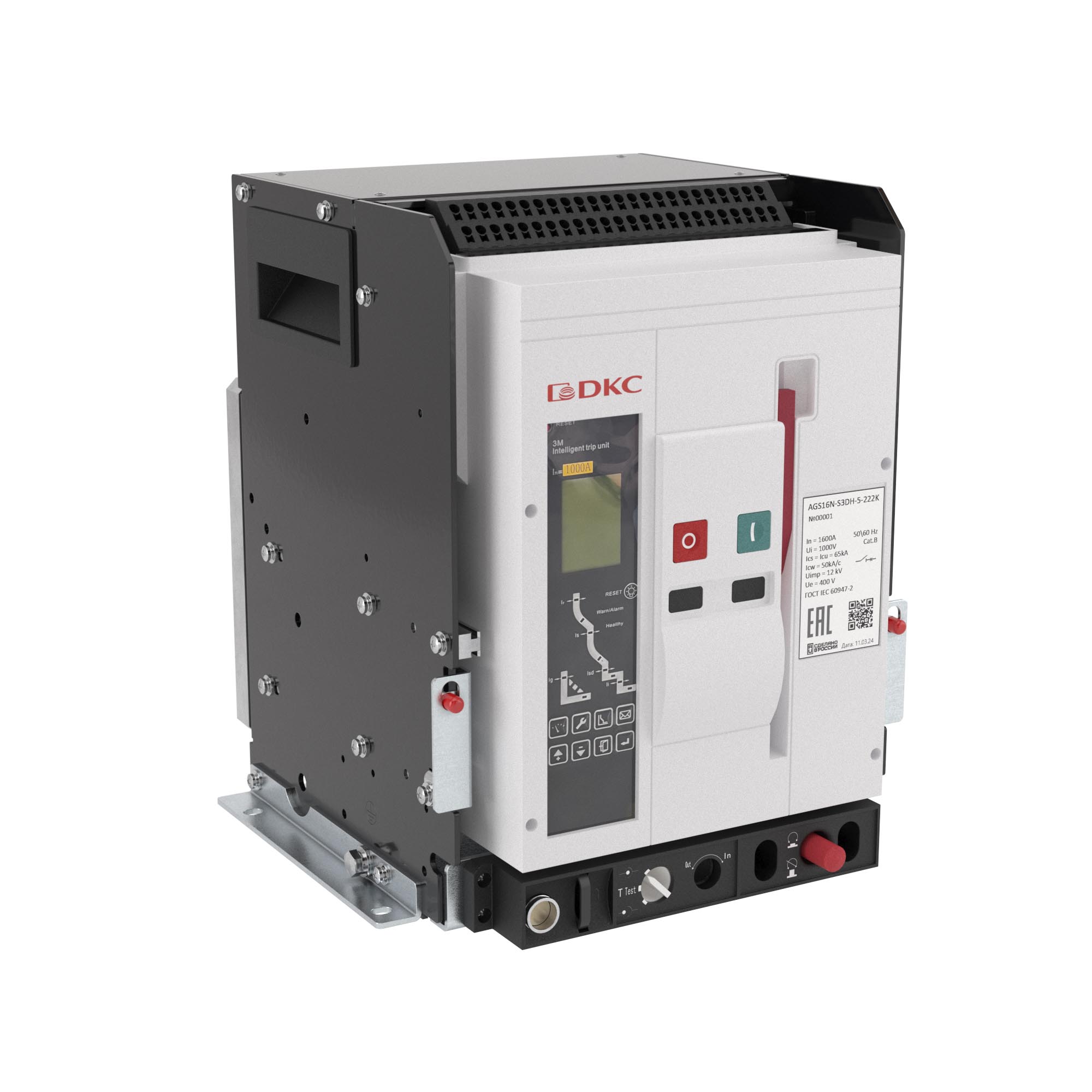

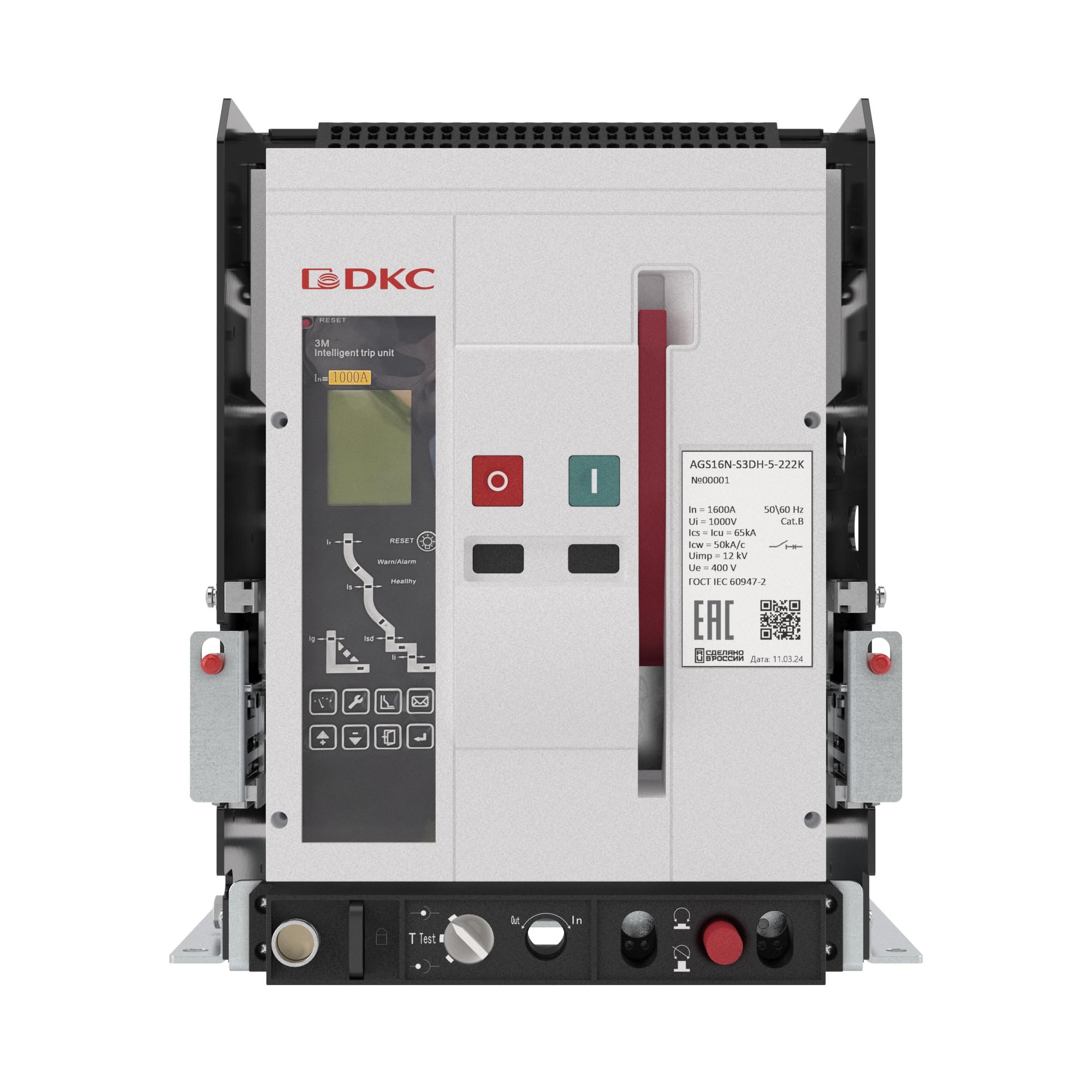

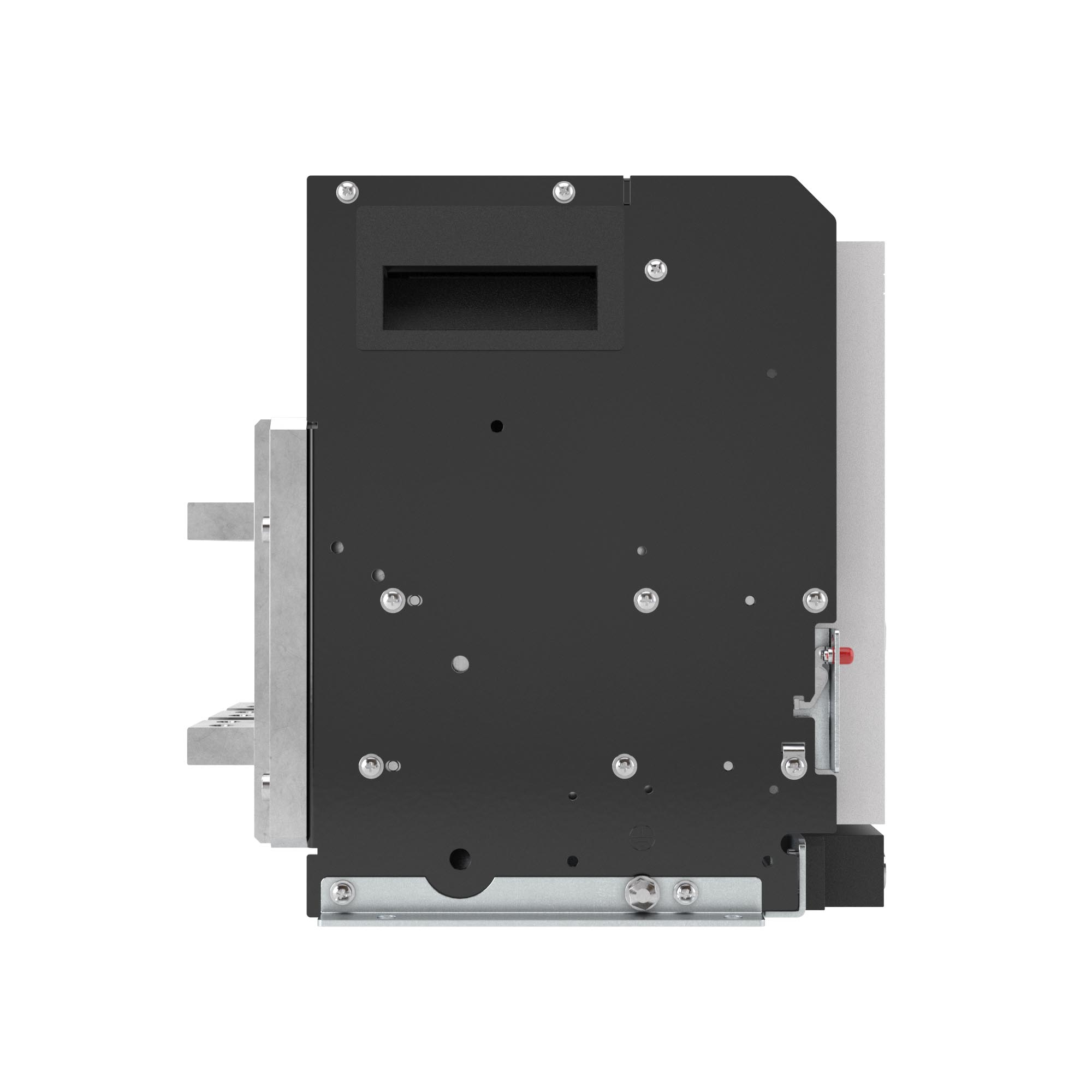

| Product/component type | Air circuit breaker |
| Series | YON max |
| Motor drive | Installed |
| Shunt coil | Installed |
| Warranty | 5 years |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.12.22.000 |
| Commodity Nomenclature of Foreign Economic Activity | 8536209007 |
