| Rated current In, A | 269 |
| Rated voltage, V | 1000 |
| Colour | Grey |
| Length, mm | 132 |
| Width/grid dimension, mm | 42 |
| Height at lowest possible mounting height, mm | 73 |
| Material insulation body | Thermoplastic |
| Operating temperature, °C | -40...105 |
| Inflammability class of insulation material according to with UL94 | V0 |

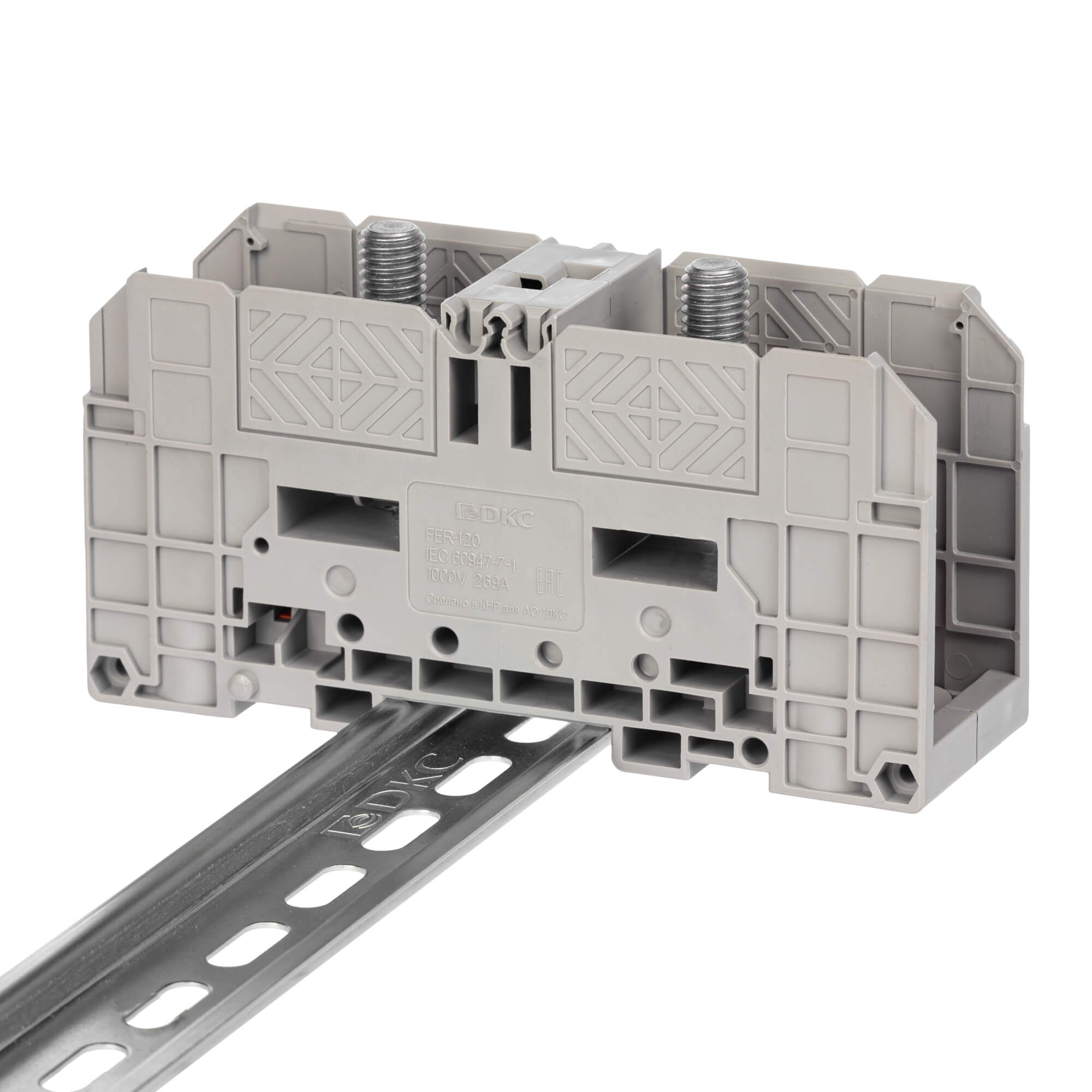

| Mounting method | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 6...150 |
| Type of electrical connection 1 | Bolt connection |
| Type of electrical connection 2 | Bolt connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Closing plate required | No |
| Internally connected stages | No |
| Connection position | Sideways |
| Explosion-tested version 'Ex e' | No |
| Number of poles | 2 |
| Core cross section, mm² | 120 |
| Product type | Terminal block |
| Function | entrance |
| Clamp type | Stud |
| Width | 42mm |
| Number of levels | 1 |
| Number of connection points | 2 |
| Stud size | M10 |
| Rated cross-section | 120 mm² |
| Max. cross-section | 150 mm² |
| Cable lug DIN 46235 | 16−150 мм² |
| Cable lug DIN 46234 | 6−150 мм² |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Max.current | 309 A |
| Tightening torque | 10−20 N∙m |
| Material of case | PA |
