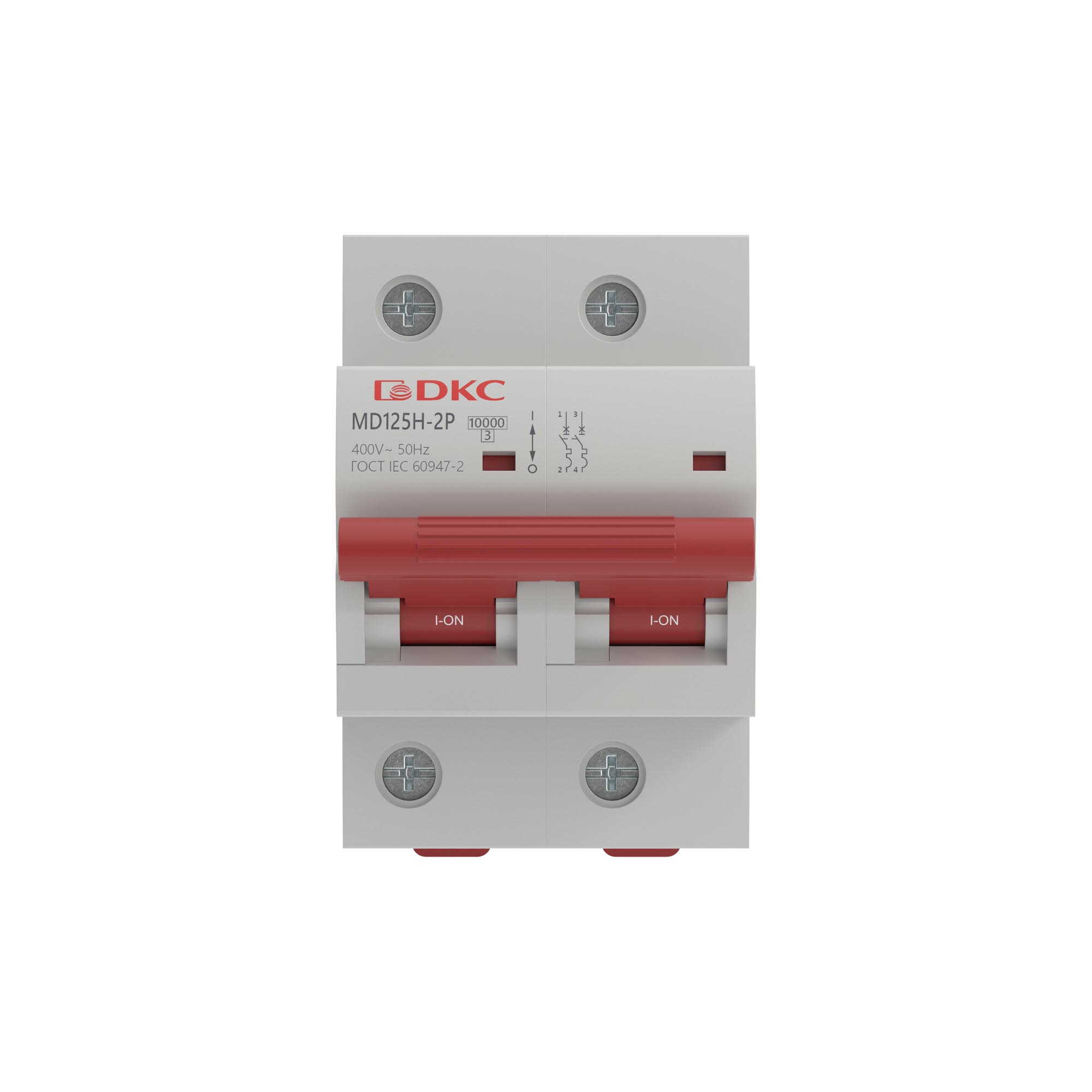

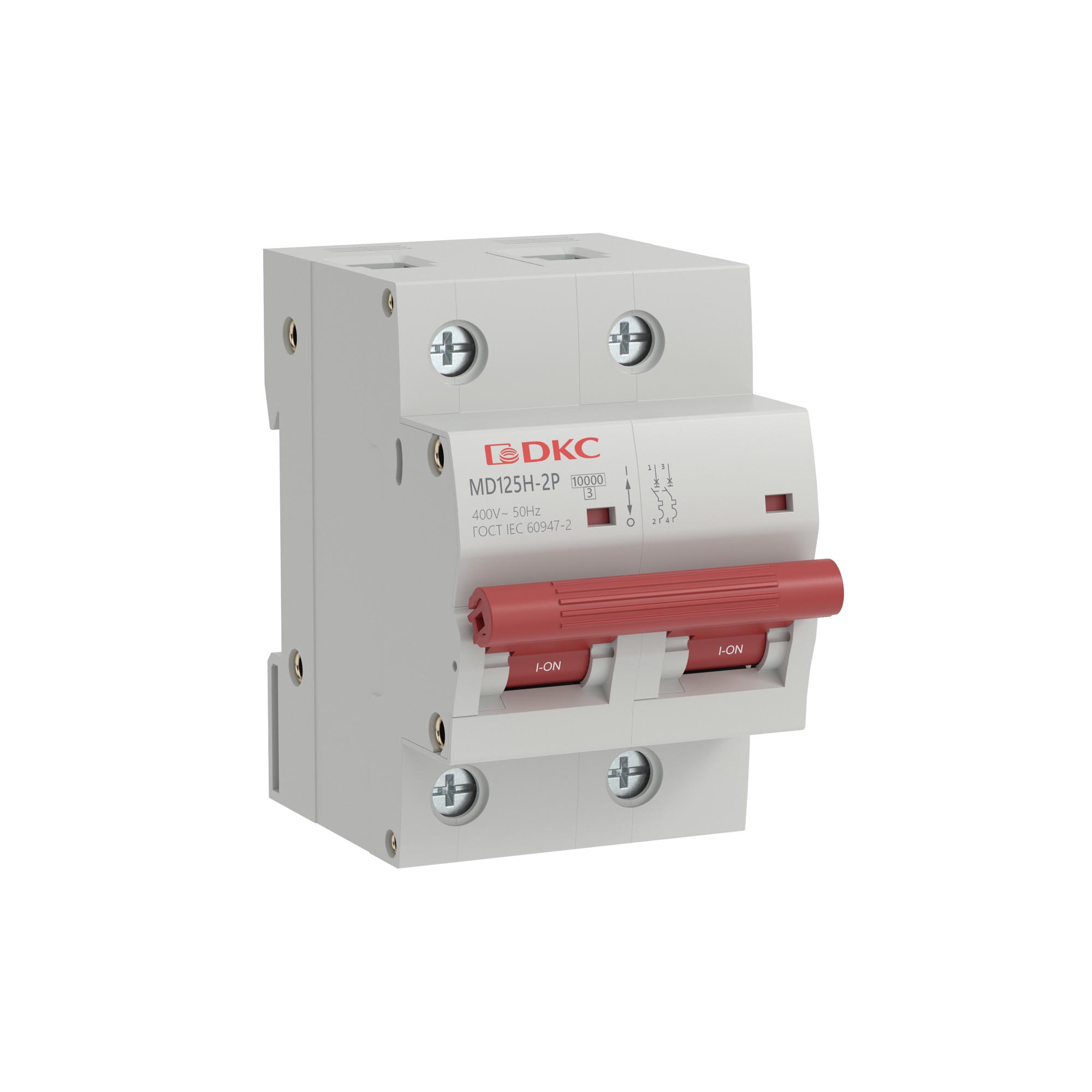

Miniature circuit breaker YON max MD125H, 2P, 10kA, C, 50A

Code: MD125H-2PC50
Miniature circuit breaker YON max MD125H, 2P, 10kA, C, 50A
Miniature circuit breaker YON max MD125H, 2P, 10kA, C, 50A
Code: MD125H-2PC50
Removed from the product range . Proposed replacement: MD63H-2PC50
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Promo
  • Viewed items
  • News
Voltage type AC

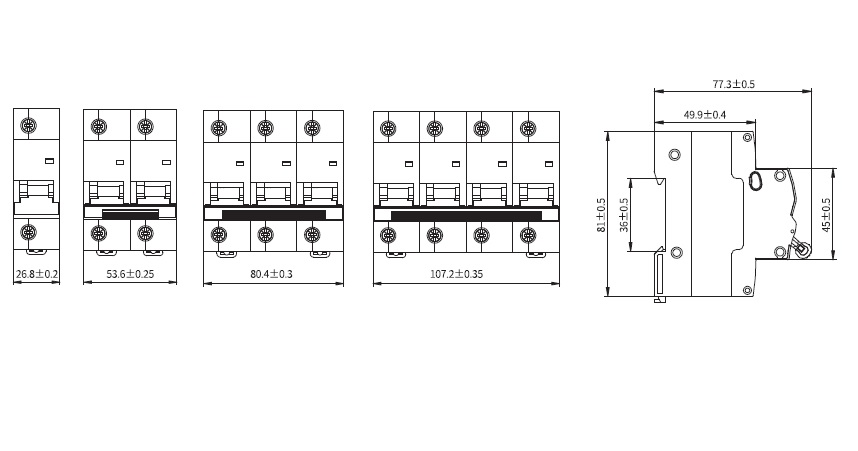

Built-in depth, mm 77.3
Rated current, A 50
Rated voltage, V 400
Frequency, Hz 50...50
Release characteristic C
Rated insulation voltage Ui, V 500
Current limiting class 3
Over voltage category 4
Pollution degree 3
Width in number of modular spacings 3
Degree of protection (IP) IP20
Number of protected poles 2
Concurrently switching N-neutral No
Connectable conductor cross section solid-core, mm² 50...50
Connectable conductor cross section multi-wired, mm² 35...35
Ambient temperature during operating, °C -25...40
Additional equipment possible Yes
Number of poles (total) 2
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V, kA 10
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V, kA 10
Rated impulse withstand voltage Uimp, kV 4
Rated short-circuit breaking capacity 10
